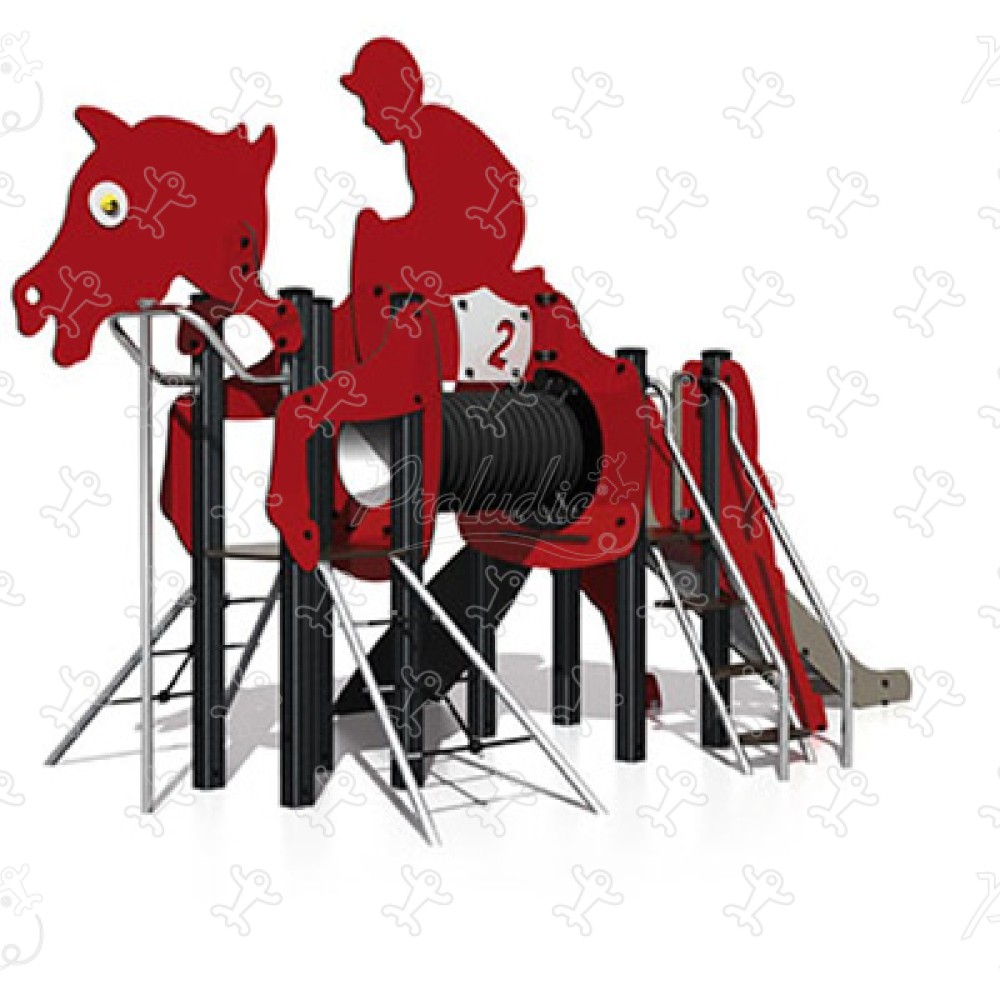

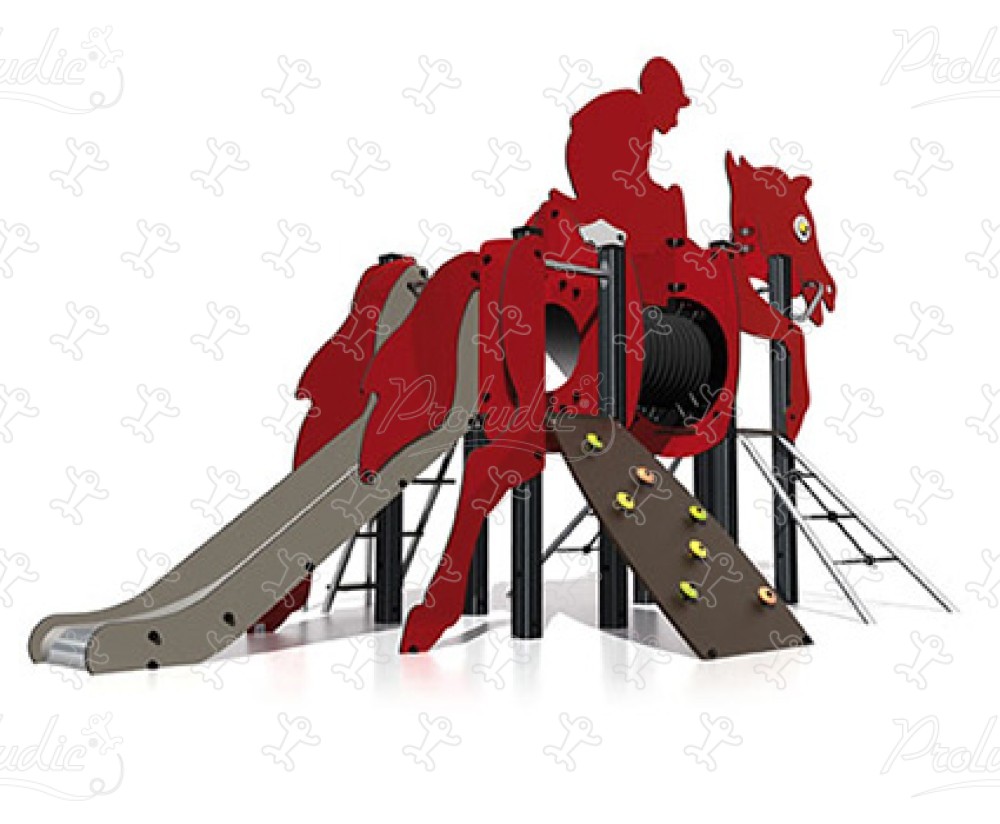

City - Jockey - J4039

We have created the reference J4039 in our "City" range. This play equipment is accessible from 3 years. It can accommodate up to 15 users.

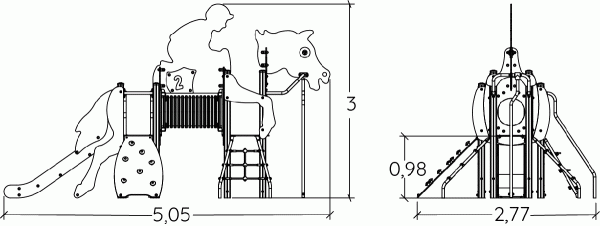

The size of the module is: 5.05 m length, 2.77 m width, 3.00 m. high. The free fall height (FFH) is 1.00 m.

11 play functions

Role play x1

Role plays promote the child's intellectual and social skills.

Climbing x4

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Sliding x2

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

By playing together, children learn how to interact with other personalities and behaviors.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Specifications

Age range:	3 - 6
Number of users:	15 users
FFH :	1.00 m
Size:	5.05 x 2.77 x 3.00 m

Equipment installation

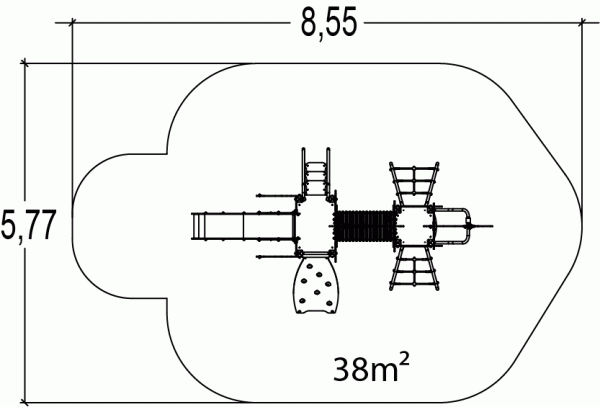

Surface:	38.00 m2
Total weight:	503.33 kg
Weight of the heaviest element:	33.06 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The platforms, the steps and the climbing wall are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
