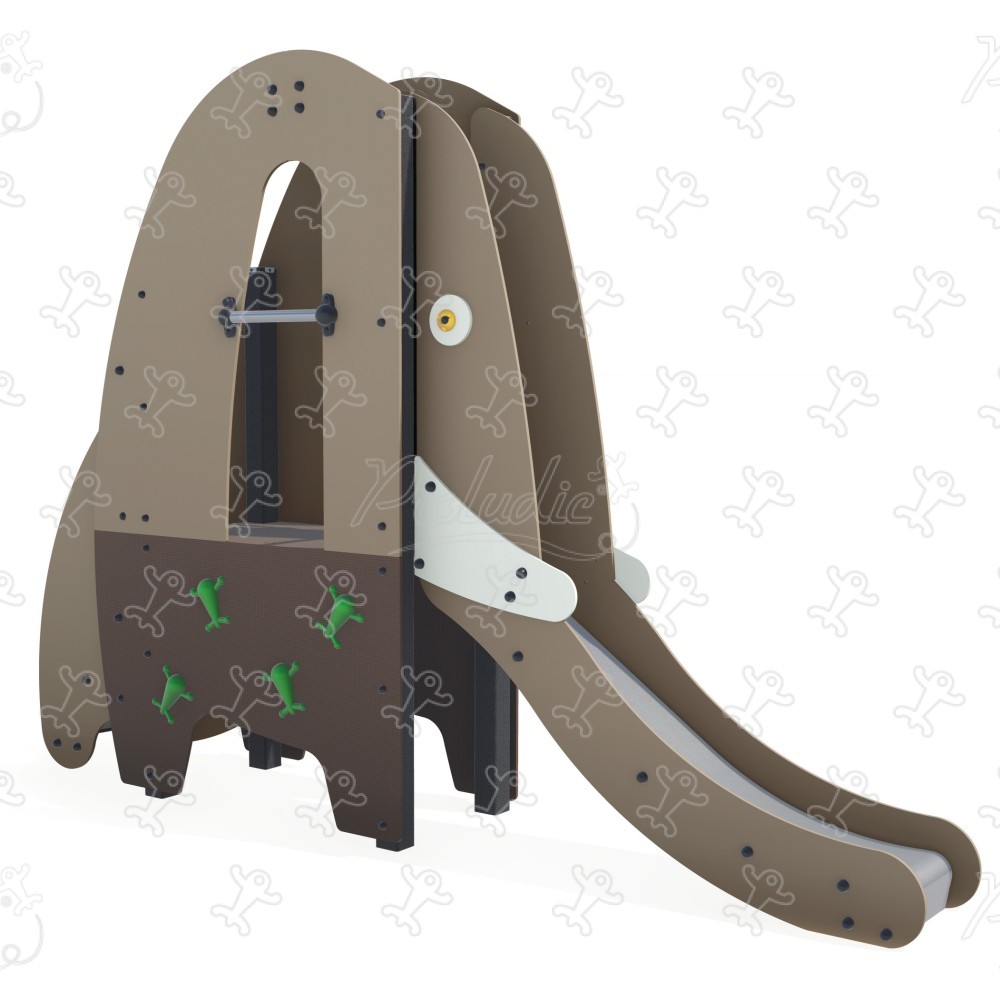

Adventure - Looping - J4010®

We have created the reference J4010® in our "Adventure" range. This play equipment is accessible from 2 years. It can accommodate up to 6 users.

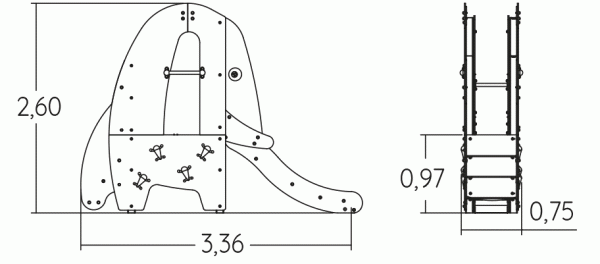

The size of the module is: 3.50 m length, 0.75 m width, 2.60 m. high. The free fall height (FFH) is 1.00 m.

6 play functions

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Climbing x2

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Role play x1

Role plays promote the child's intellectual and social skills.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Specifications

Age range:	2+
Number of users:	6 users
FFH :	1.00 m
Size:	3.50 x 0.75 x 2.60 m

Equipment installation

Number of installers:	2
Installation time:	04:00:00
Concrete volume:	0.17 m3

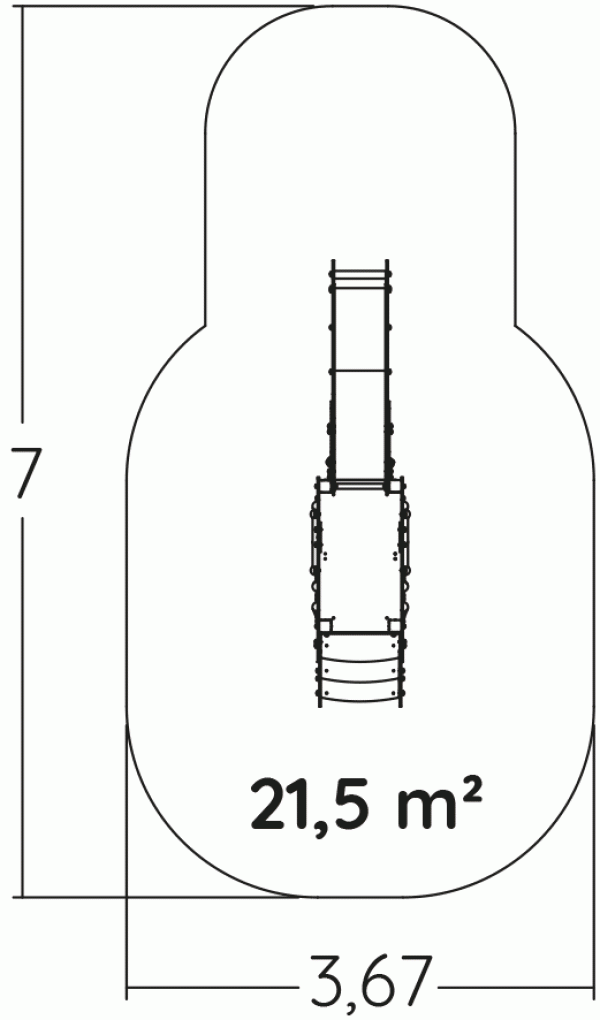

Surface:	21.50 m2
Total weight:	301.20 kg
Weight of the heaviest element:	20.40 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms, the steps and the climbing wall are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece. The sides are made from a 13mm thick compact material... (HPL). Read more
