Diabolo Baby - J38706-C®

We have created the reference J38706-C® in our "Diabolo Baby" range. This play equipment is accessible from 0,5 years. It can accommodate up to 12 users.

The size of the module is: 2.77 m length, 3.39 m width, 2.12 m. high. The free fall height (FFH) is 1.00 m.

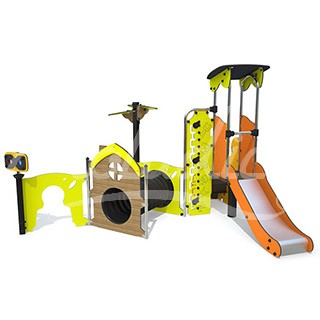

Other finishes available

J38706®

16 play functions

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Handling x2

A great exercise for developing motor skills and abilities in young children while having fun.

Crawling x2

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Thinking x1

Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.

Tactile stimulation x2

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Visual stimulation x1

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x2

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Role play x1

Role plays promote the child's intellectual and social skills.

Specifications

Age range:	0,5+
Number of users:	12 users
FFH :	1.00 m

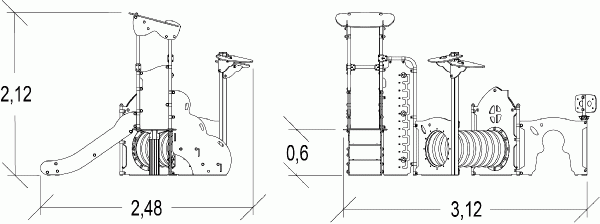

Size:	2.77 x 3.39 x 2.12 m

Equipment installation

Number of installers:	2
Installation time:	05:00:00
Concrete volume:	0.27 m3

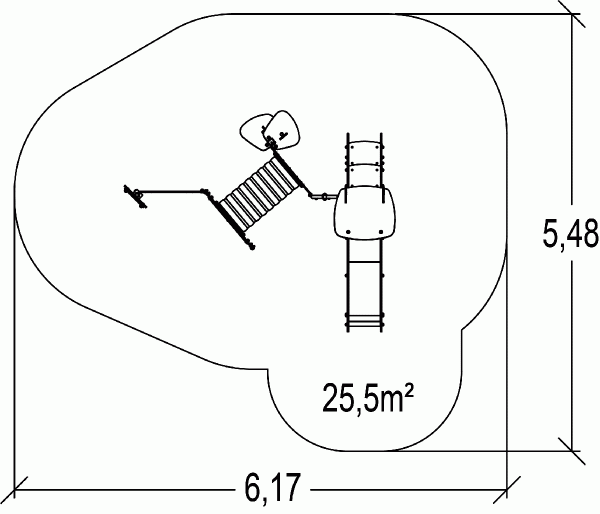

Surface:	25.50 m2
Total weight:	203.43 kg
Weight of the heaviest element:	13.47 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 70 x 70mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platform and the steps are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
