Diabolo Baby - J38703-C®

We have created the reference J38703-C® in our "Diabolo Baby" range. This play equipment is accessible from 0,5 years. It can accommodate up to 13 users.

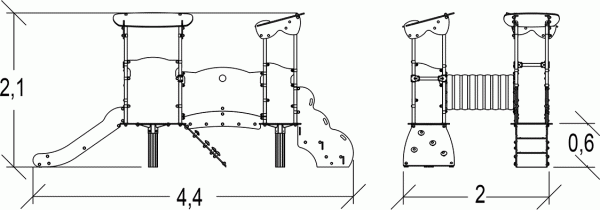

The size of the module is: 4.39 m length, 2.18 m width, 2.12 m. high. The free fall height (FFH) is 1.00 m.

Other finishes available

J38703®

13 play functions

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x3

By playing together, children learn how to interact with other personalities and behaviors.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Taking shelter x3

A refuge where the children can take shelter ensures that children have their own space.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x2

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Specifications

Age range:	0,5+
Number of users:	13 users
FFH :	1.00 m
Size:	4.39 x 2.18 x 2.12 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Concrete volume:	0.24 m3

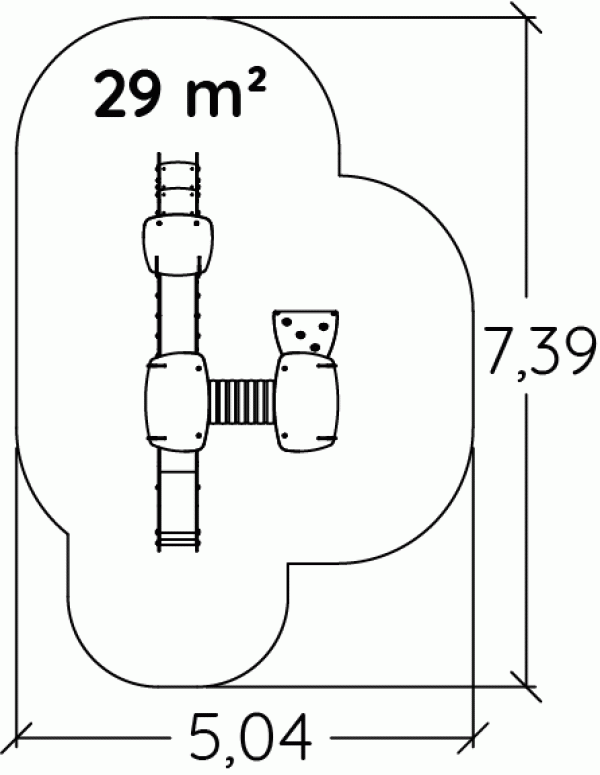

Surface:	29.00 m2
Total weight:	318.41 kg
Weight of the heaviest element:	12.30 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms, the steps and the climbing wall are made from a 12.5mm thick textured and non-slip compact material (HPL).

The 60cm wide walkway is made of a beveled aluminum treadplate.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
