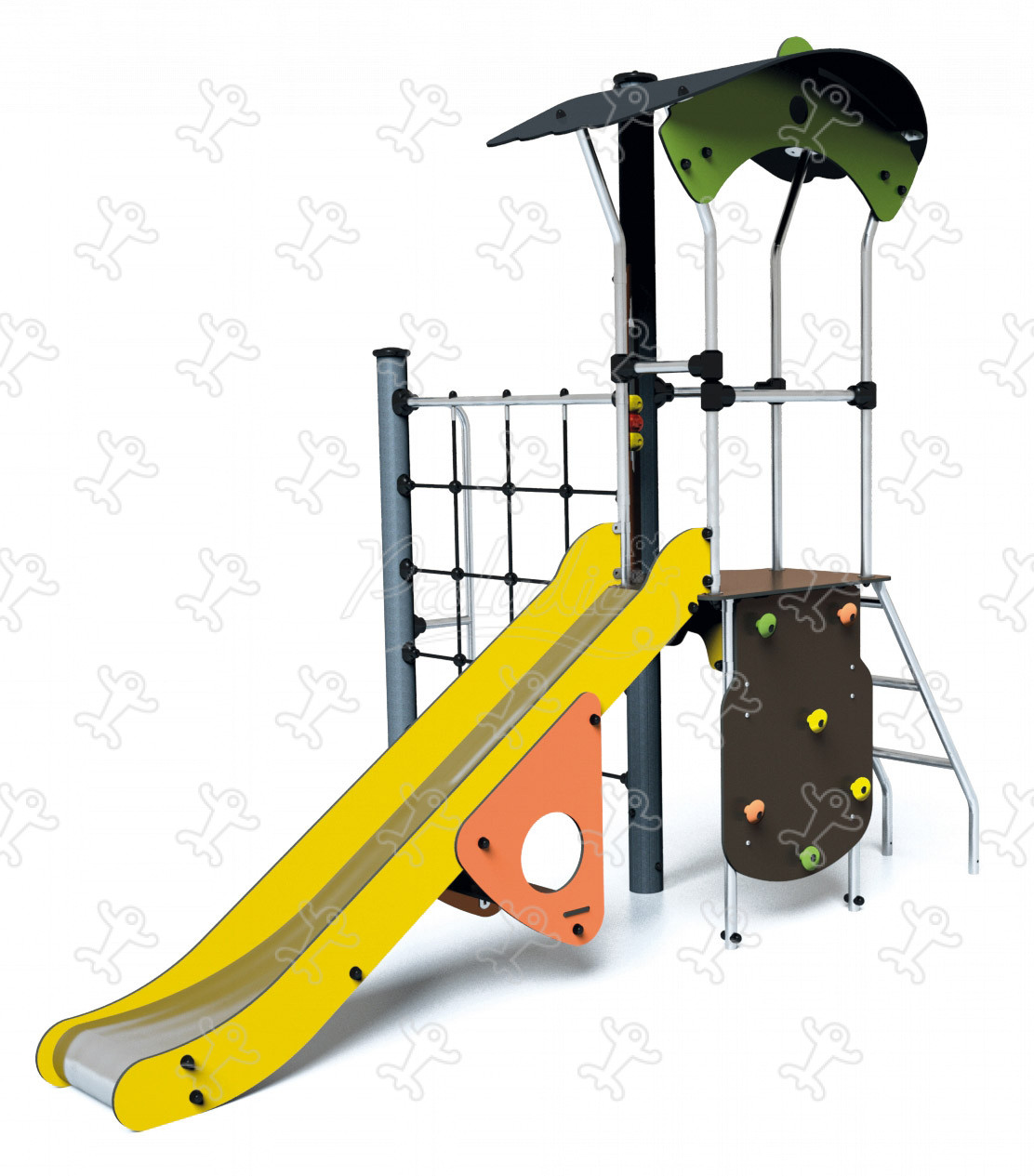

Diabolo - J3866

We have created the reference J3866 in our "Diabolo" range. This play equipment is accessible from 3 years. It can accommodate up to 15 users.

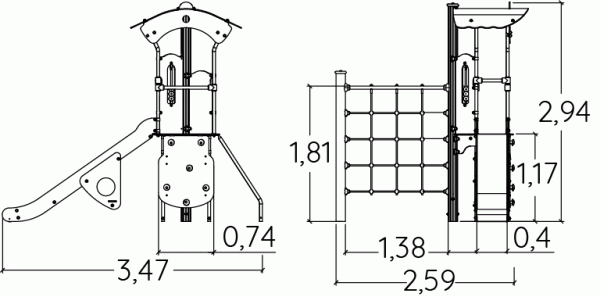

The size of the module is: 3.47 m length, 2.59 m width, 2.94 m. high. The free fall height (FFH) is 1.80 m.

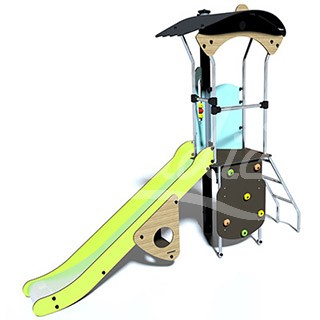

Other finishes available

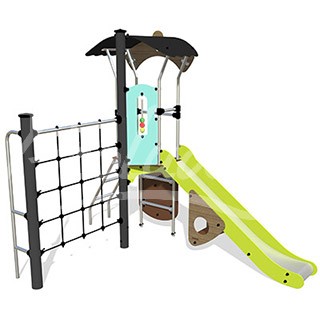

J3866-C

11 play functions

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Resting x1

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Tactile stimulation x1

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Specifications

Age range:	3+
Number of users:	15 users
FFH :	1.80 m
Size:	3.47 x 2.59 x 2.94 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Concrete volume:	0.28 m3

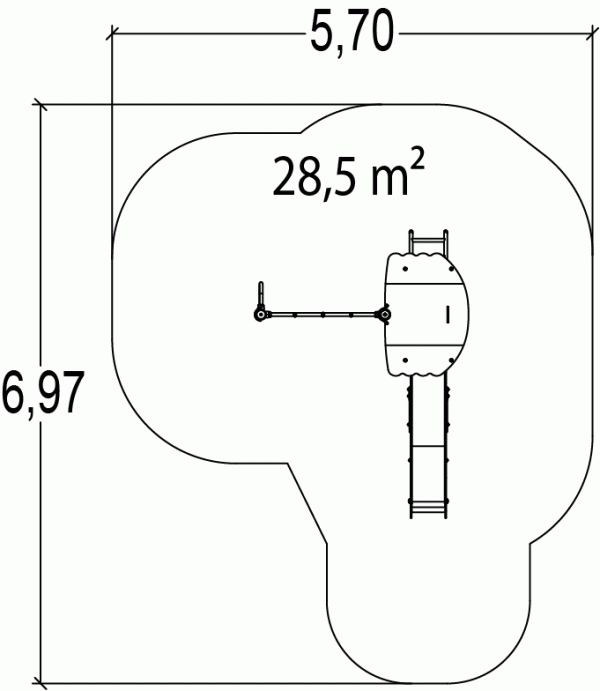

Surface:	28.50 m2
Total weight:	194.85 kg
Weight of the heaviest element:	19.17 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The seat is made from a 12.5mm thick textured and non-slip compact material (HPL).

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The roof is made of 10mm thick polyethylene plates.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
