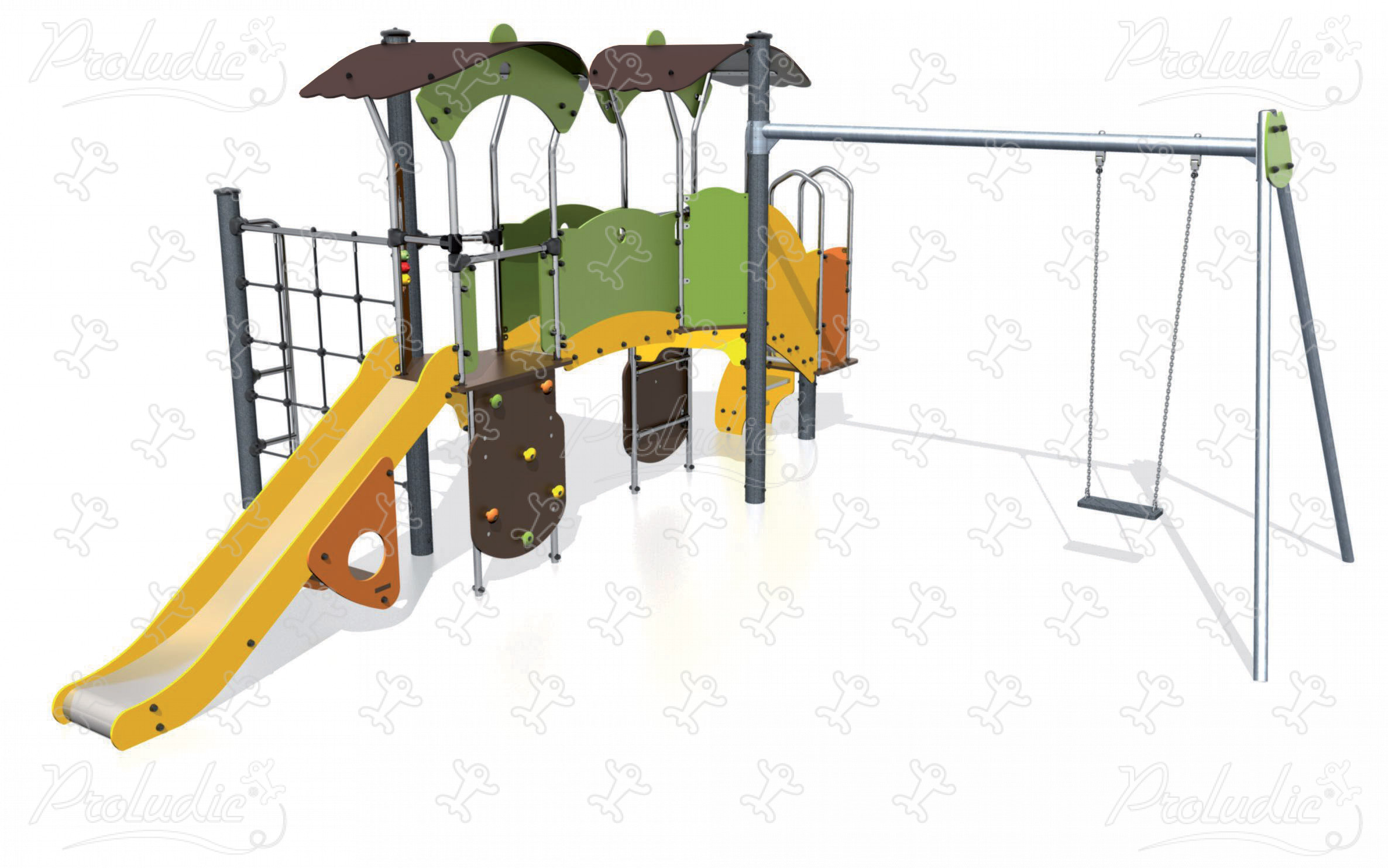

Diabolo - J3846

We have created the reference J3846 in our "Diabolo" range. This play equipment is accessible from 2 years. It can accommodate up to 25 users.

The J3846 has a combination of a multi-play unit and swing provides and all-in-one play solution for up to 25 users in the 2-10 age group.

22 play functions

Climbing x2

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x3

By playing together, children learn how to interact with other personalities and behaviors.

Resting x1

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x2

A great exercise for developing motor skills and abilities in young children while having fun.

Swinging x1

To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Taking shelter x2

A refuge where the children can take shelter ensures that children have their own space.

Climbing x5

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x2

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Tactile stimulation x2

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Specifications

Age range:	2+
Number of users:	25 users
FFH :	1.80 m

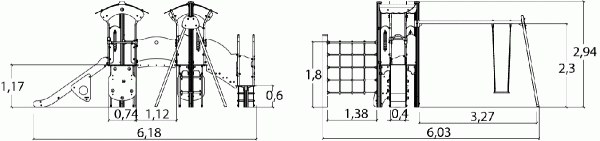

Size:	6.18 x 6.03 x 2.94 m

Equipment installation

Number of installers:	2
Installation time:	24:00:00
Concrete volume:	0.36 m3

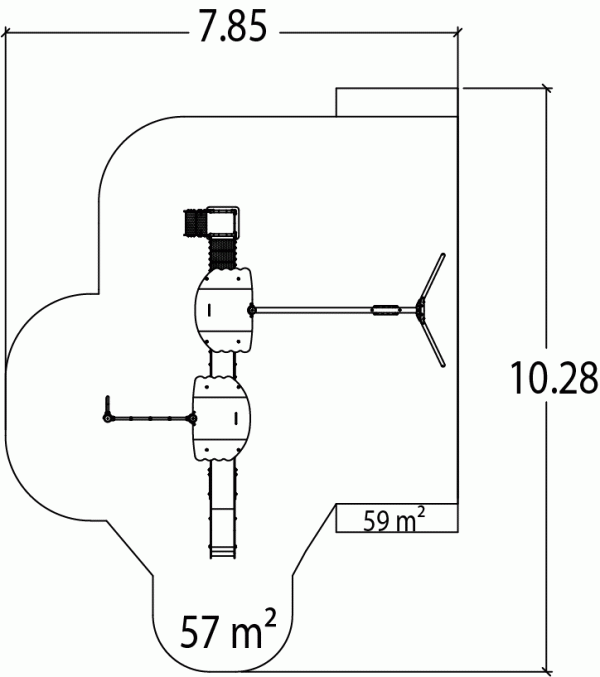

Surface:	57.00 m2
Total weight:	495.45 kg
Weight of the heaviest element:	26.00 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.
