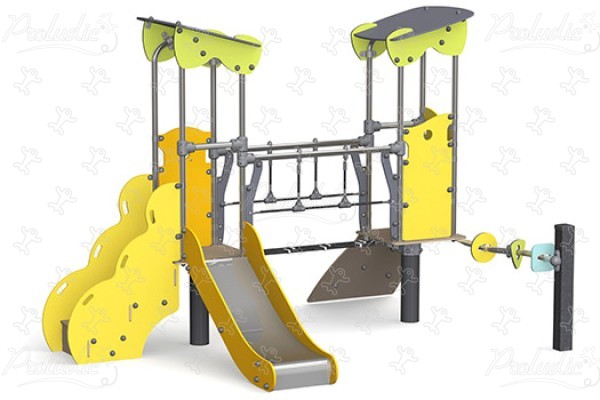

Diabolo Baby - J38203®

We have created the reference J38203® in our "Diabolo Baby" range. This play equipment is accessible from 2 years. It can accommodate up to 12 users.

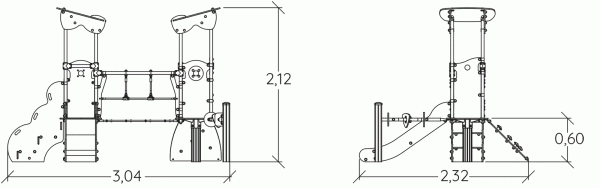

The size of the module is: 3.02 m length, 2.32 m width, 2.12 m. high. The free fall height (FFH) is 1.00 m.

Other finishes available

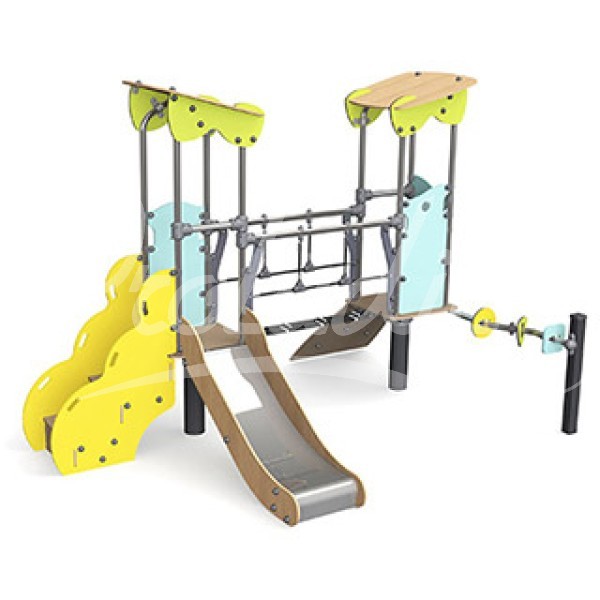

J38203-C®

12 play functions

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

By playing together, children learn how to interact with other personalities and behaviors.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Taking shelter x2

A refuge where the children can take shelter ensures that children have their own space.

Thinking x1

Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.

Tactile stimulation x1

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Specifications

Age range:	2+
Number of users:	12 users
FFH :	1.00 m
Size:	3.02 x 2.32 x 2.12 m

Equipment installation

Number of installers:	2
Installation time:	03:00:00
Concrete volume:	0.25 m3

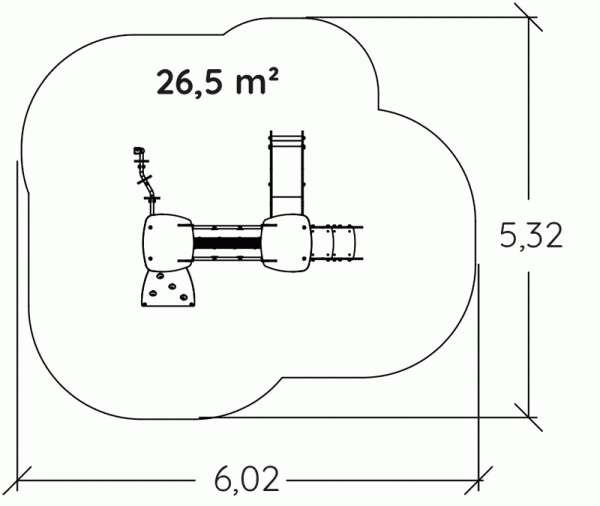

Surface:	26.50 m2
Total weight:	203.22 kg
Weight of the heaviest element:	10.17 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 70 x 70mm post is made of painted galvanised steel, ensuring robustness and durability. The cap is made of injection moulded polyamide.

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platform and the steps are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The sliding surfaces are made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The 16mm diameter rope is made of galvanised steel cable covered with polyester.

The strap is made of 5 ropes linked together with aluminium pliers. Each rope, of 16mm diameter, is made up of galvanized steel cables covered in polypropylene.
