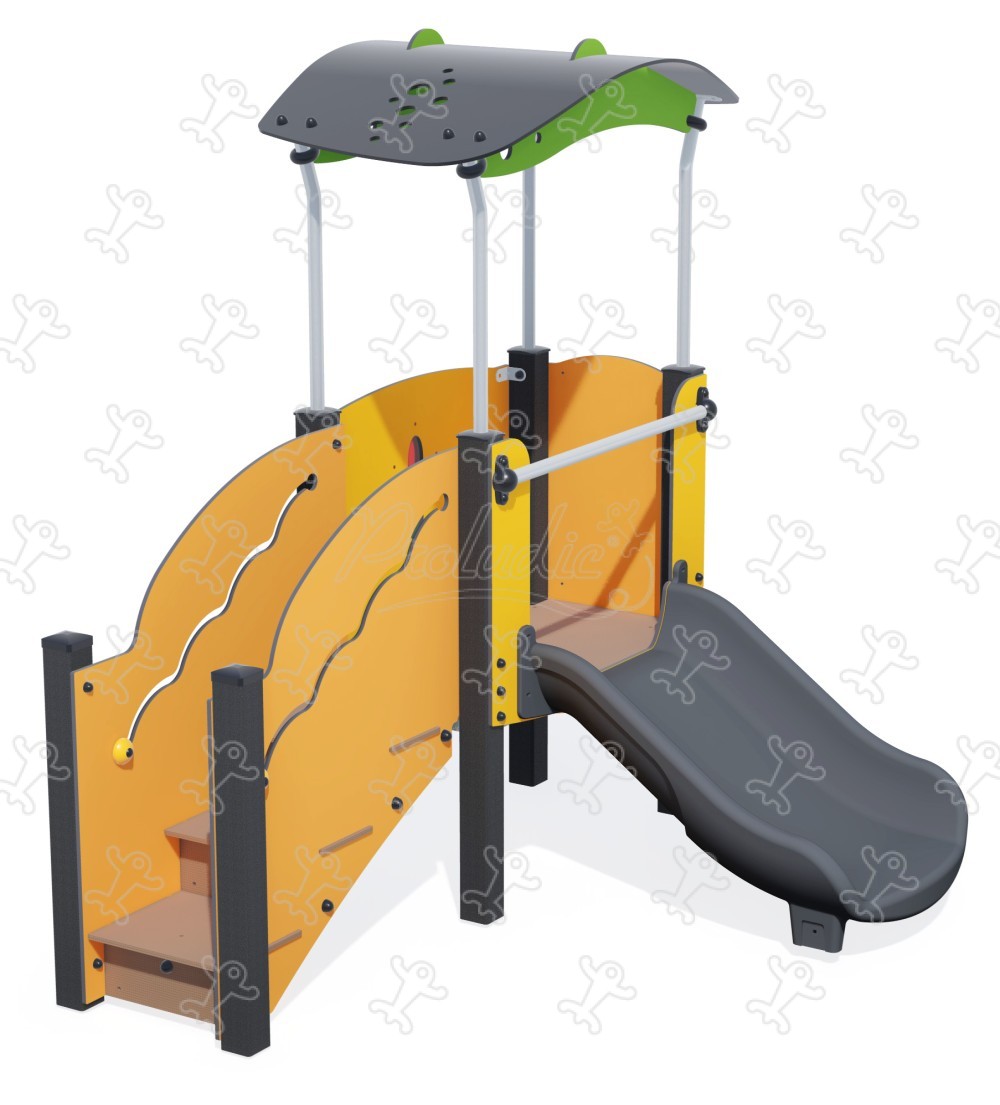

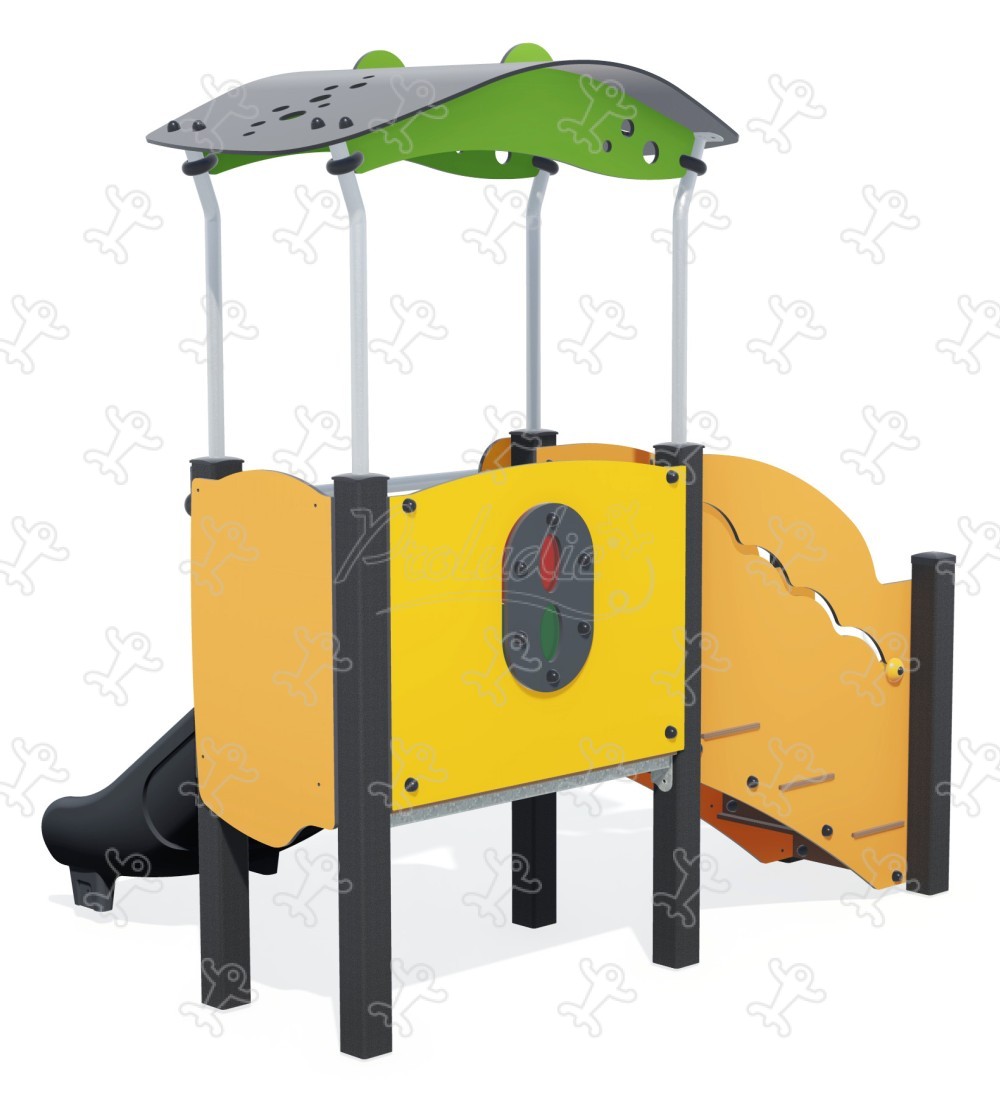

Diabolo - J38132®

We have created the reference J38132® in our "Diabolo" range. This play equipment is accessible from 2 years. It can accommodate up to 6 users.

The size of the module is: 2.47 m length, 1.91 m width, 2.43 m. high. The free fall height (FFH) is 0.60 m.

Other finishes available

J38132-C®

7 play functions

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Tactile stimulation x1

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Visual stimulation x1

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Specifications

Age range:	2+
Number of users:	6 users
FFH :	0.60 m

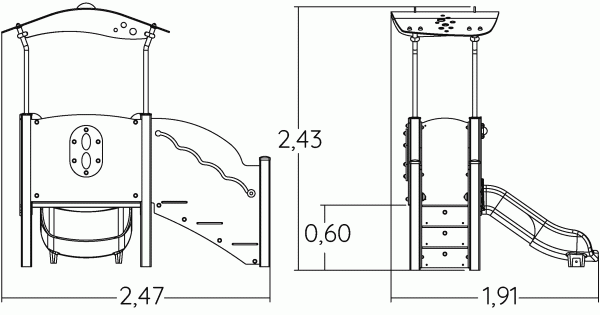

Size:	2.47 x 1.91 x 2.43 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Concrete volume:	0.22 m3

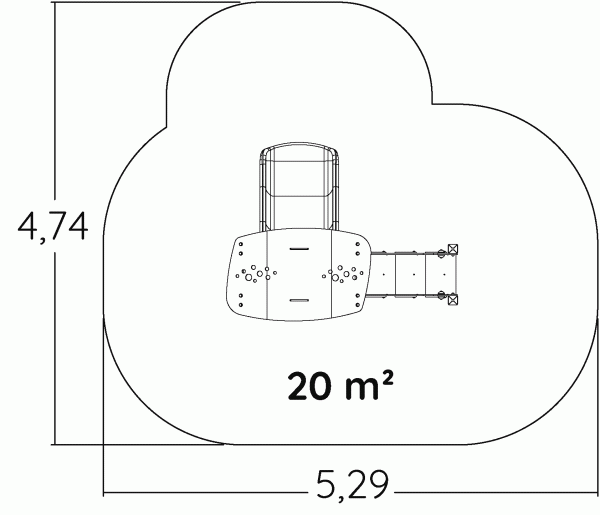

Surface:	20.50 m2
Total weight:	264.50 kg
Weight of the heaviest element:	54.00 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
