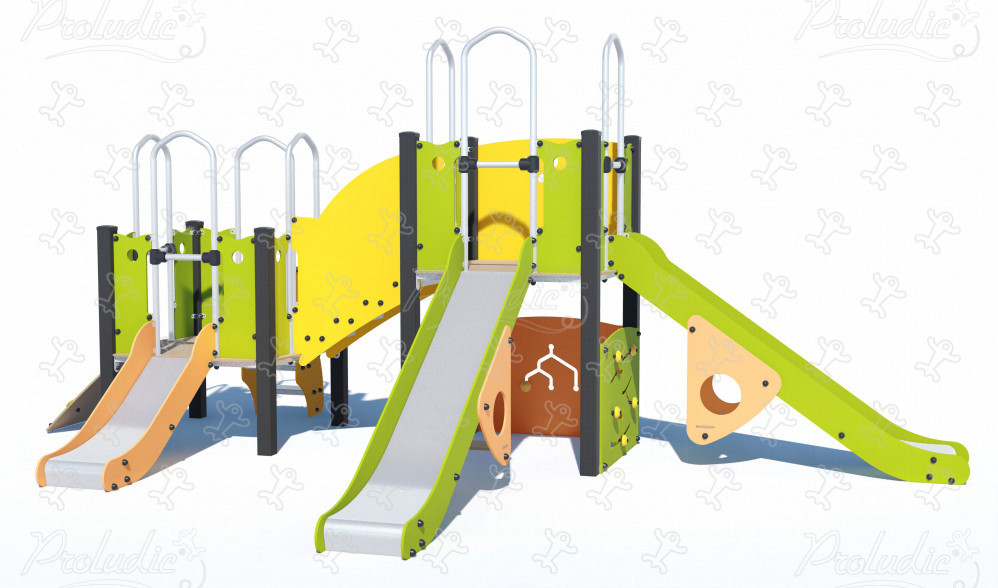

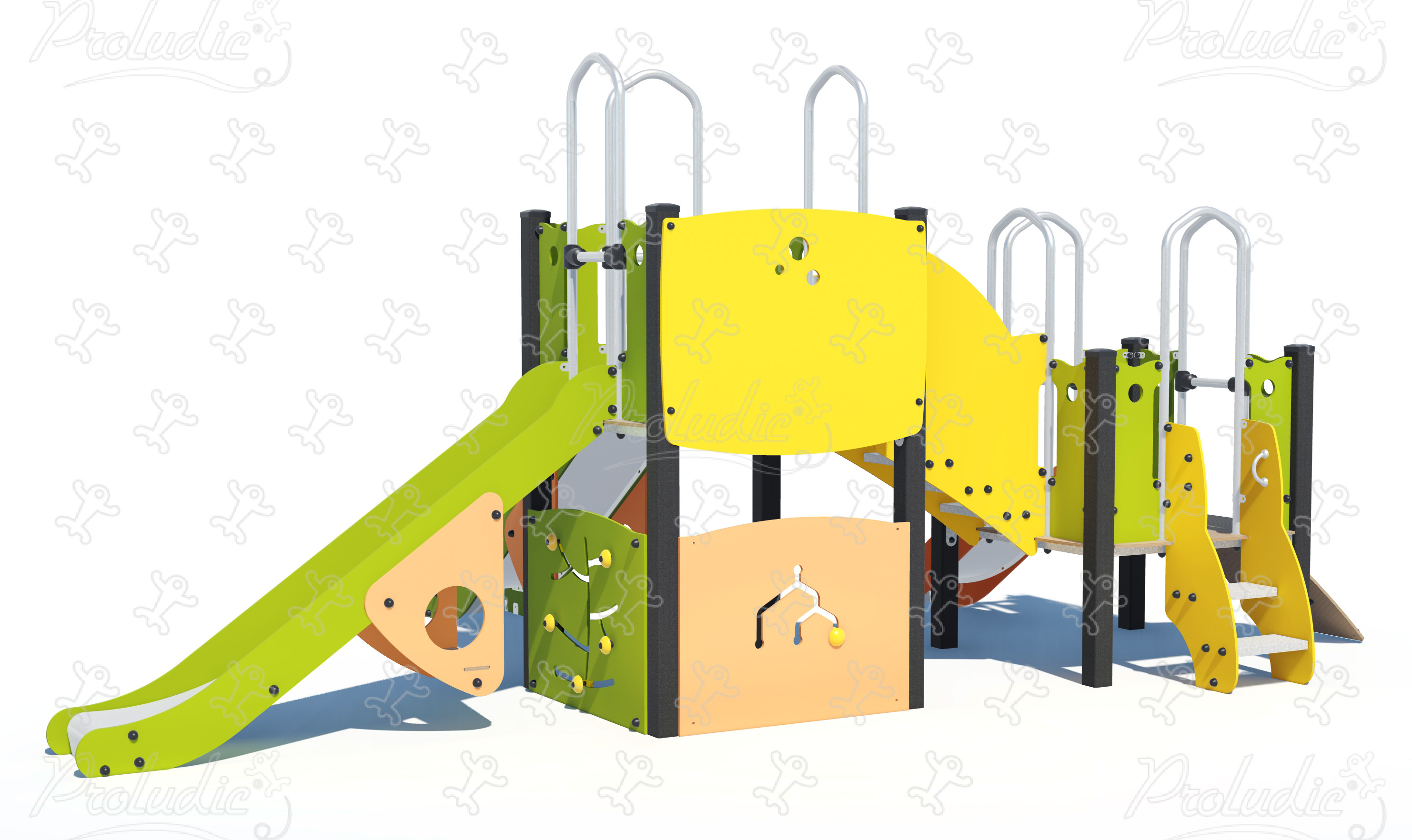

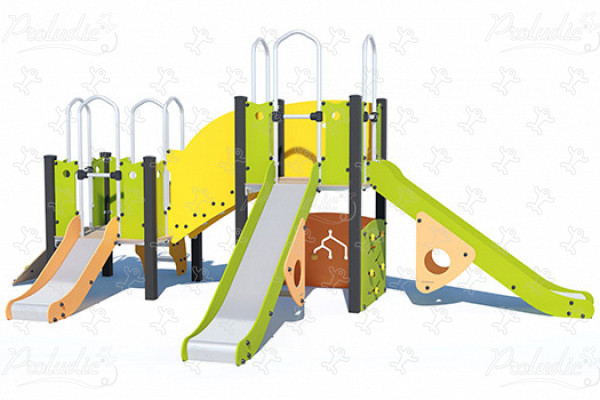

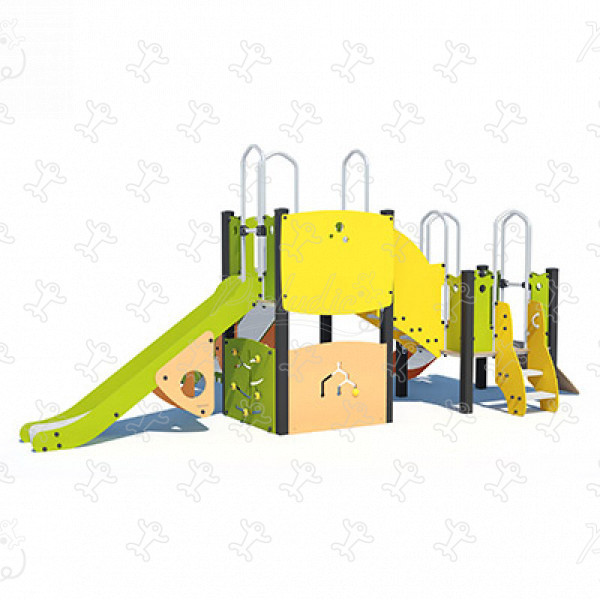

Diabolo - J38129®

We have created the reference J38129® in our "Diabolo" range. This play equipment is accessible from 2 years. It can accommodate up to 19 users.

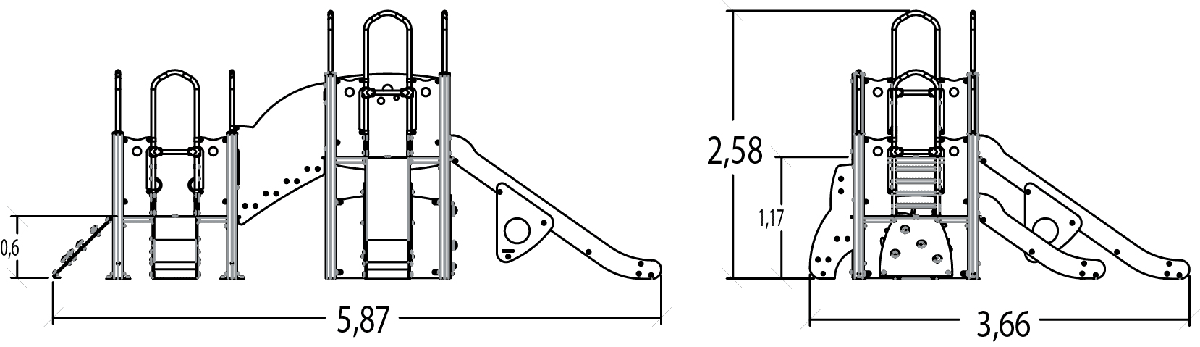

The size of the module is: 5.87 m length, 3.66 m width, 2.58 m. high. The free fall height (FFH) is 1.17 m.

Other finishes available

J38129-C®

20 play functions

Role play x3

Role plays promote the child's intellectual and social skills.

Sliding x3

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

By playing together, children learn how to interact with other personalities and behaviors.

Resting x2

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x2

A great exercise for developing motor skills and abilities in young children while having fun.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Thinking x2

Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.

Tactile stimulation x2

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Specifications

Age range:	2+
Number of users:	19 users
FFH :	1.17 m
Size:	5.87 x 3.66 x 2.58 m

Equipment installation

Number of installers:	2
Installation time:	12:00:00
Concrete volume:	0.49 m3

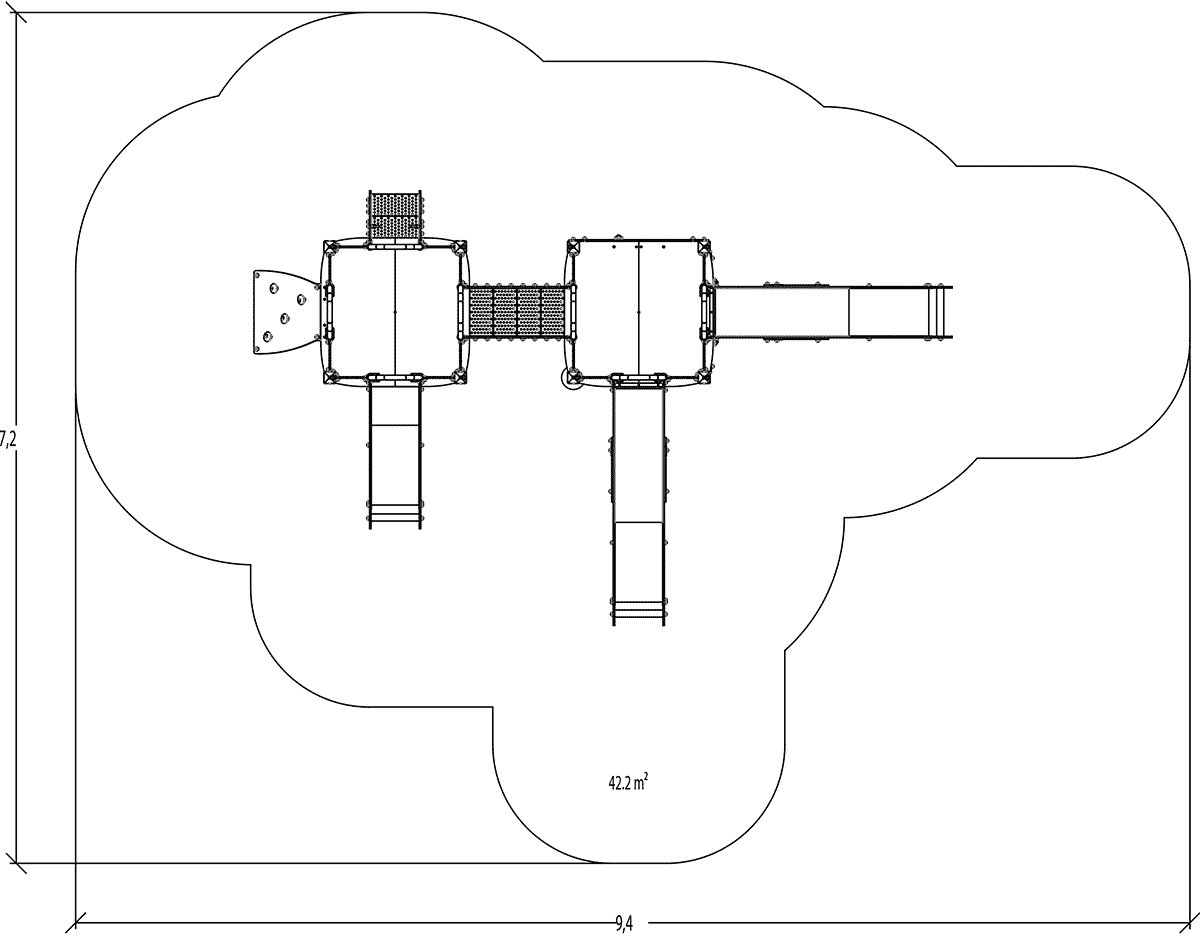

Surface:	42.50 m2
Total weight:	532.86 kg
Weight of the heaviest element:	18.19 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms and the inclined element are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
