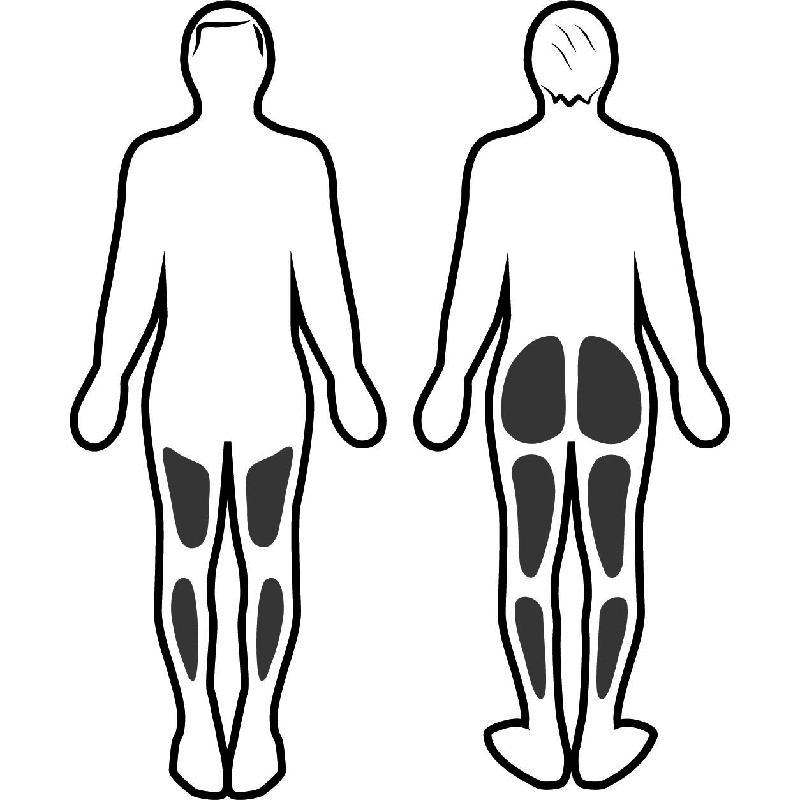

Muscle stimulation

Movement

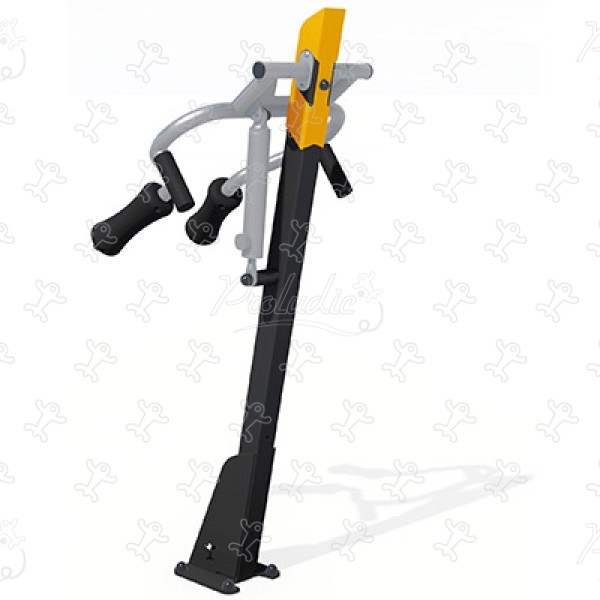

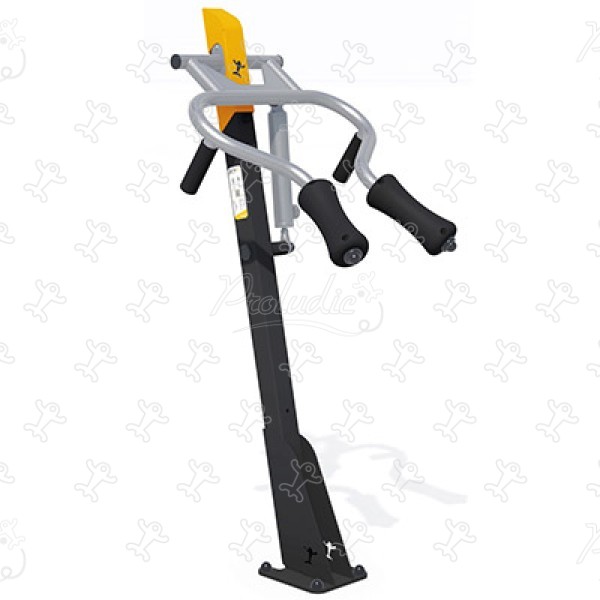

ACTI’Fit - Squat - J37210®

We have created the reference J37210® in our "ACTI’Fit" range. This activity equipment is accessible from 10 years. It can accommodate up to 1 user.

It incorporates a hydraulic piston that makes it possible to adjust the loads to be pulled.

. 6 different load levels (up to 60 kg)

. Two-directional: resistance in both directions of movement and a large travel distance to permit full extension and flexion of the muscles.

3 sports activities

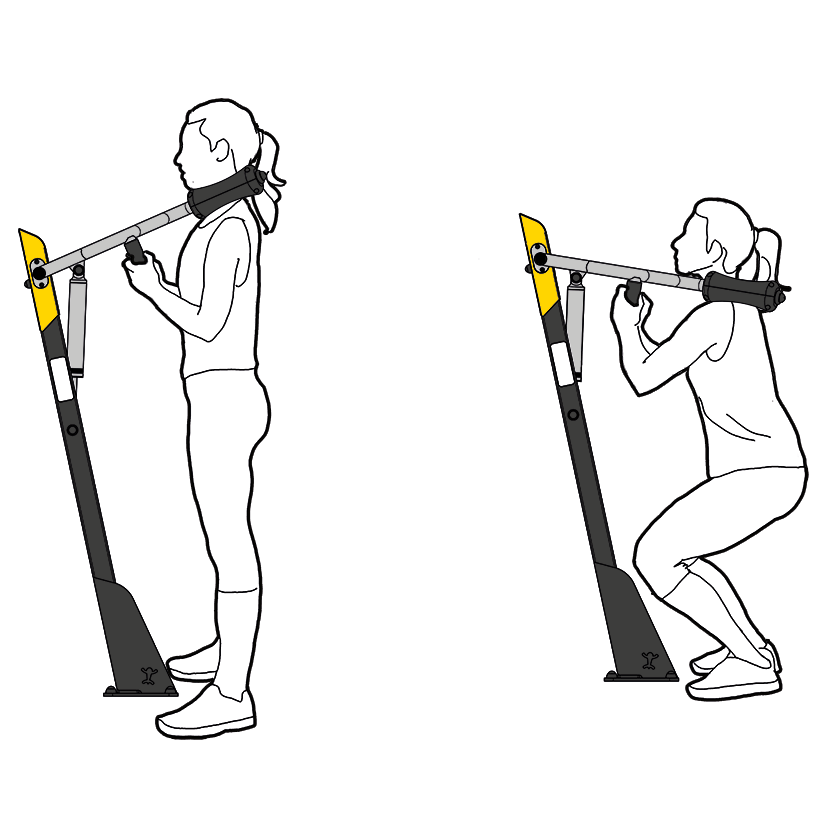

Squats x1

Resistance x1

Lift x1

3 ludo-sport motivations

Application Acti'Fun

Progressive design

Diversity

Specifications

Age range:	10+
Number of users:	1 user

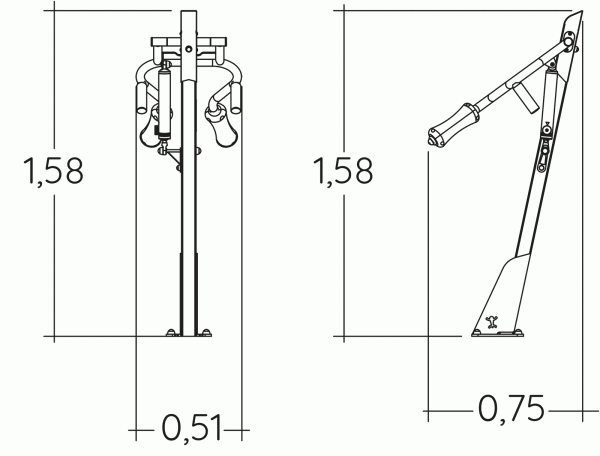

Size:	0.75 x 0.51 x 1.58 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00

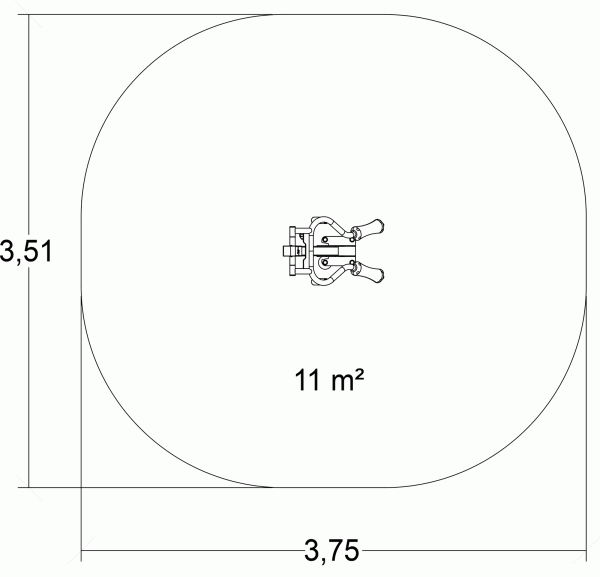

Surface:	11.00 m2
Total weight:	33.63 kg
Weight of the heaviest element:	27.31 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 70 x 70mm post is made of painted galvanised steel, ensuring robustness and durability.

The cap is made of painted stainless steel.

The hydraulic oil piston is made up of elements manufactured from chrome, aluminium and stainless steel. Users can adjust the resistance from just a few kilogrammes... up to as much as 60kg on certain machines. Read more

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The shoulder supports are made of rubber.

The handles are made of polyvinyl chloride.

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

Everything you need to know about the materials used by Proludic
