ACTI’Fit - Balance board - J37203®

We have created the reference J37203® in our "ACTI’Fit" range. This activity equipment is accessible from 10 years. It can accommodate up to 1 user.

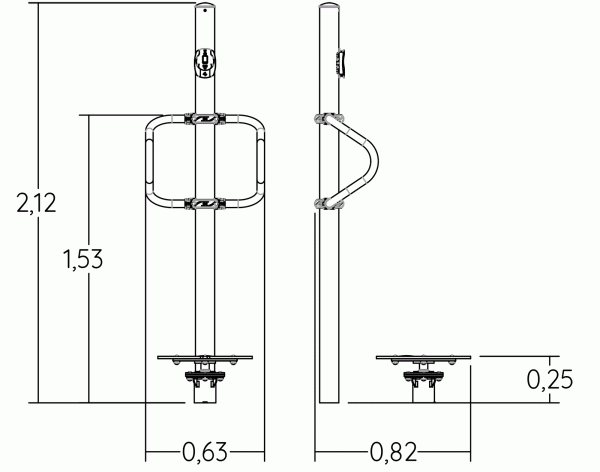

The size of the module is: 0.82 m length, 0.63 m width, 2.12 m. high. The free fall height (FFH) is 0.60 m.

1 sporting activity

Balancing x1

5 ludo-sport motivations

Application Acti'Fun

Multimedia

Sensations

Progressive design

Challenge

Specifications

Age range:	10+
Number of users:	1 user
FFH :	0.60 m
Size:	0.82 x 0.63 x 2.12 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00
Concrete volume:	0.30 m3

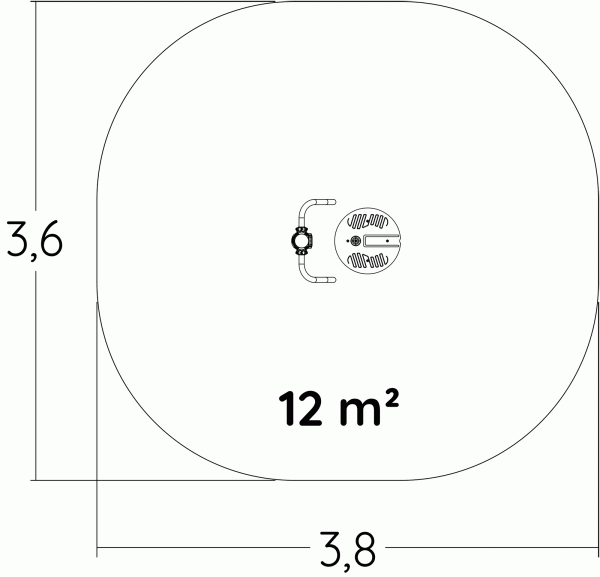

Surface:	12.00 m2
Total weight:	62.81 kg
Weight of the heaviest element:	21.53 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Video - ACTI’Fit - Balance board - J37203®

Materials

The 125mm diameter post is made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The cap is... made of painted aluminium. Read more

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The fixing collars are made of painted aluminium.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
