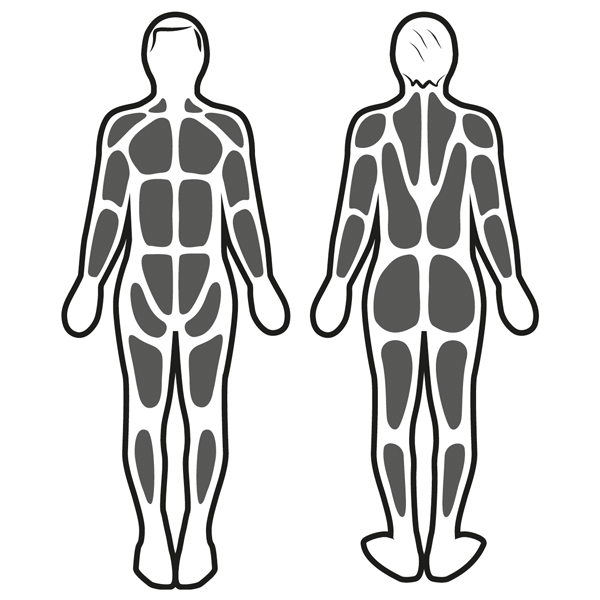

Muscle stimulation

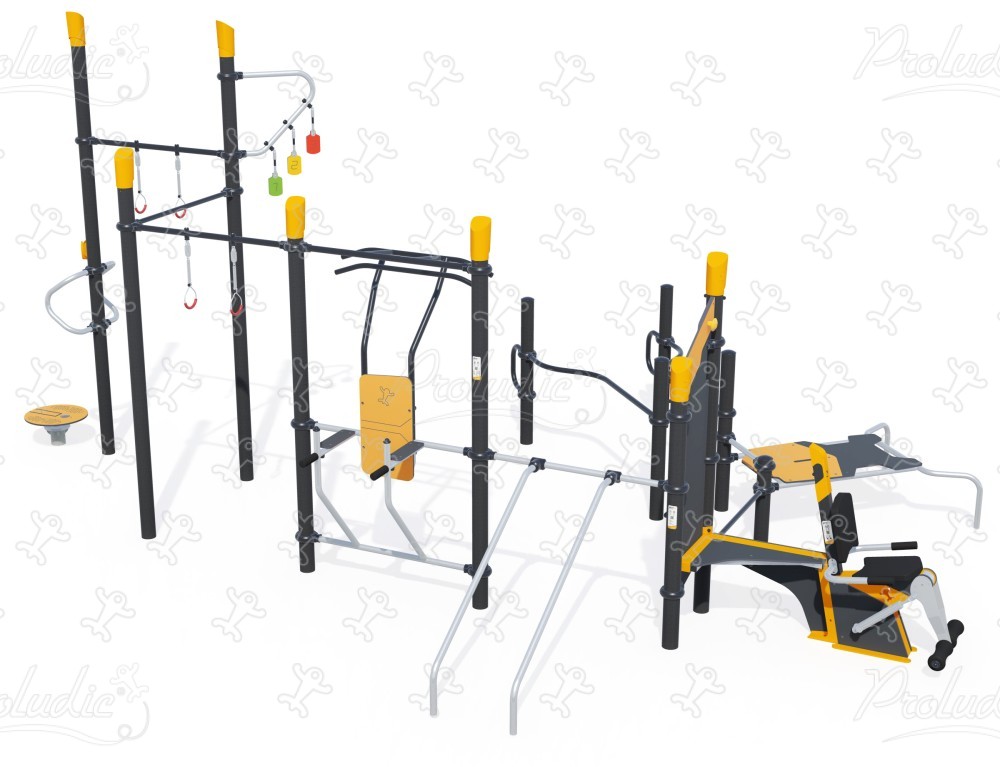

ACTI’Fit - Arms-Legs-Abs fun-sports station - J37112®

We have created the reference J37112® in our "ACTI’Fit" range. This activity equipment is accessible from 10 years. It can accommodate up to 16 users.

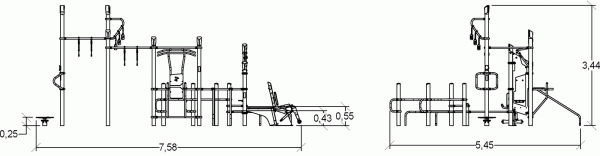

The size of the module is: 7.58 m length, 5.45 m width, 3.45 m. high. The free fall height (FFH) is 1.50 m.

20 sports activities

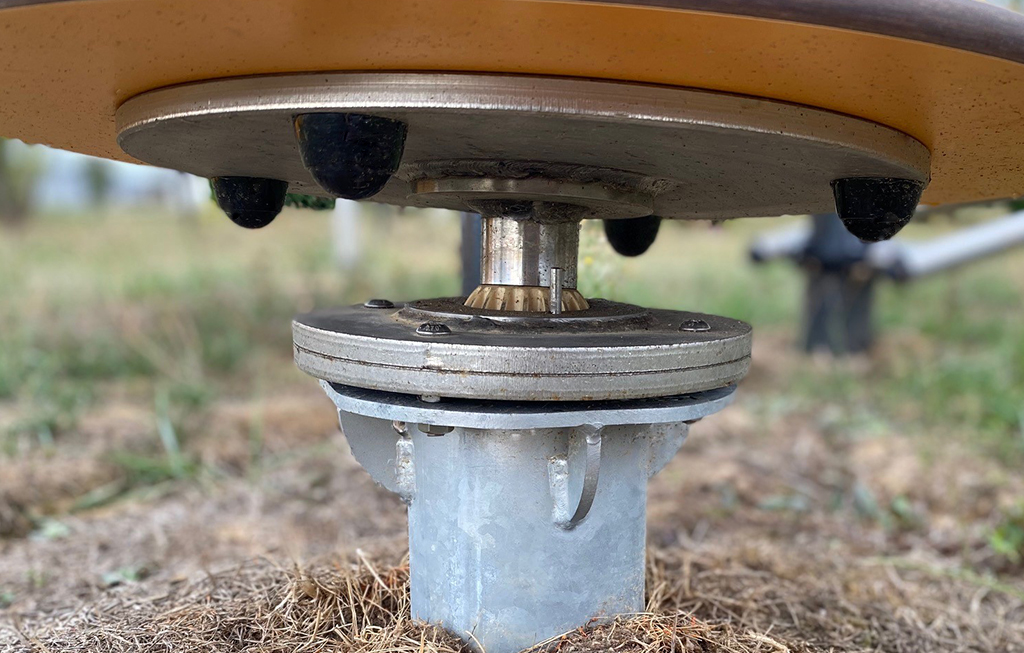

Balancing x1

Jumping x1

Hanging x3

Pull-ups x5

Dips x3

Push-ups x3

Abs x2

Resistance x1

Lift x1

Specifications

Age range:	10+
Number of users:	16 users
FFH :	1.50 m
Size:	7.58 x 5.45 x 3.45 m

Equipment installation

Number of installers:	2
Installation time:	20:00:00
Concrete volume:	3.50 m3

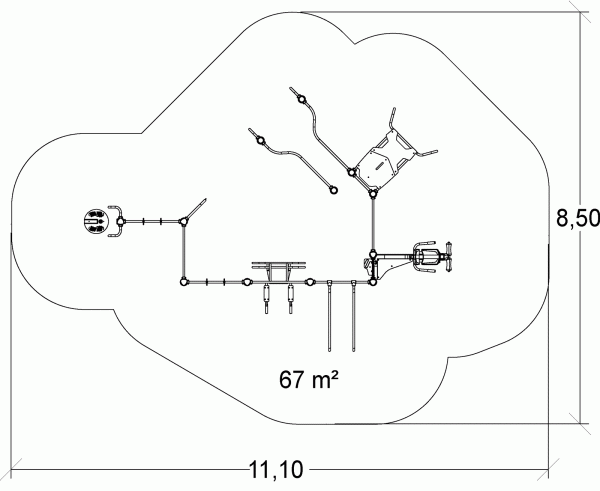

Surface:	67.00 m2
Total weight:	513.91 kg
Weight of the heaviest element:	40.68 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

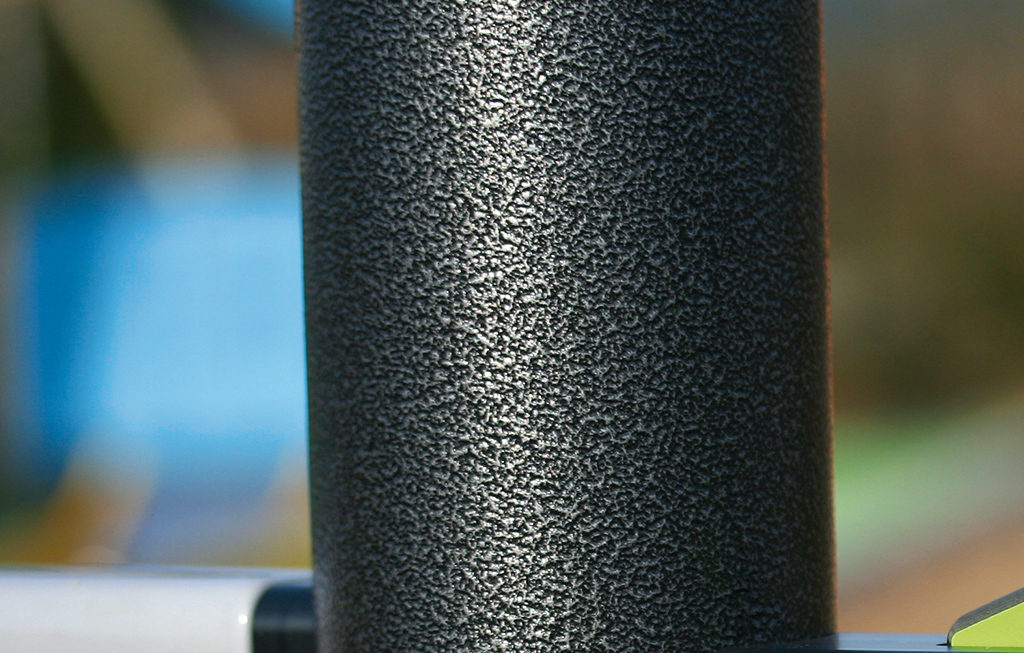

The 102mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance.

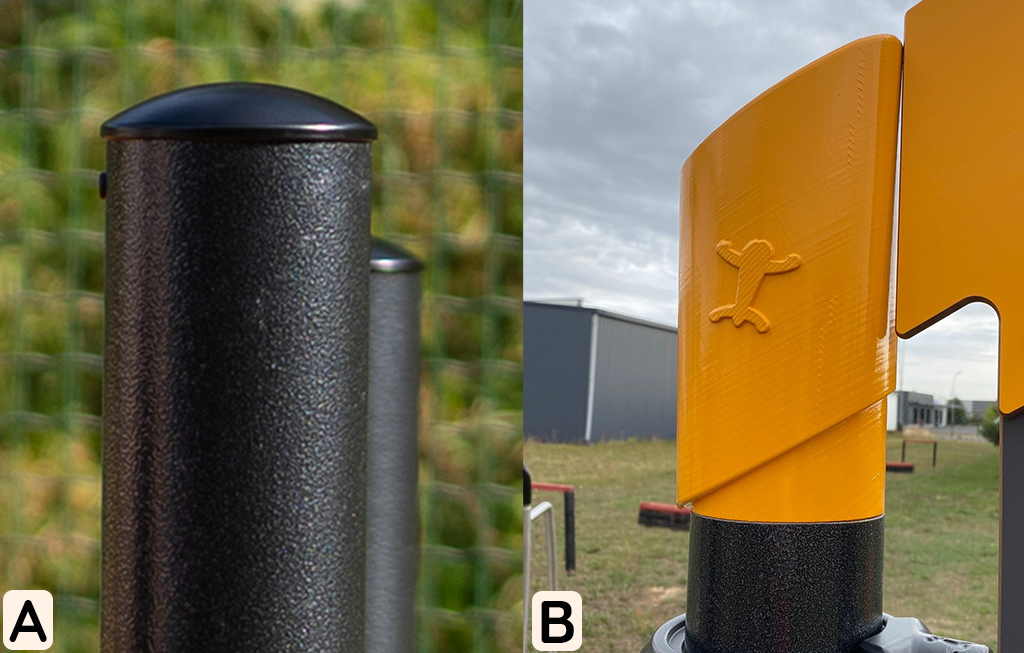

The caps are made of painted aluminium (A) or rotary moulded polyethylene (B).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

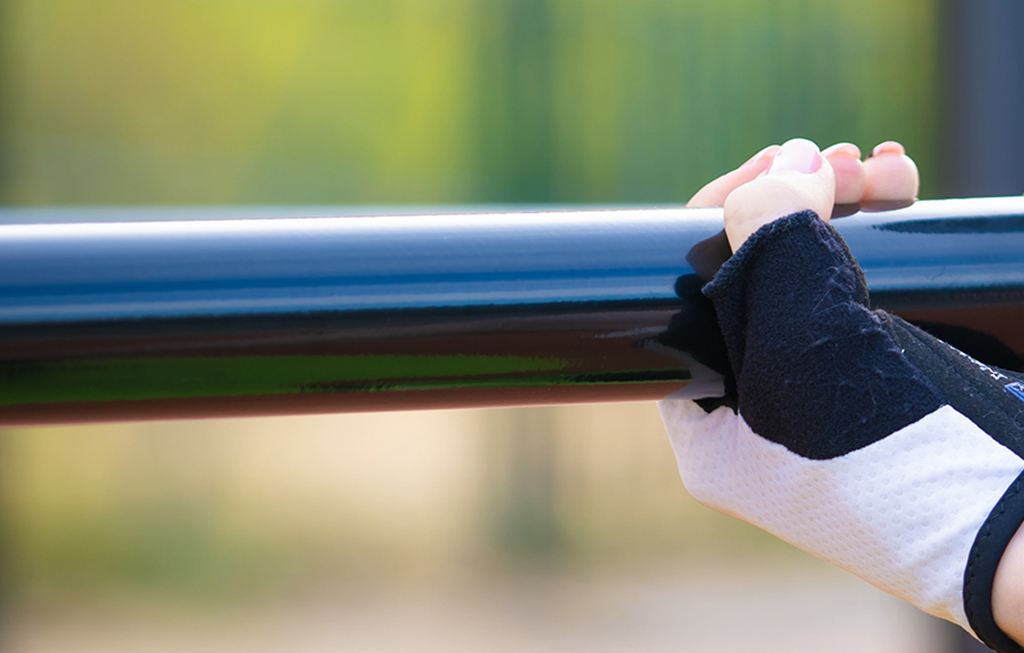

The tubes used for the Parallel bars and Suspension bars are made of electro-galvanized steel (diameter 34 mm) and stainless steel (diameter 40 mm), coated with epoxy paint. Electrogalvanization ensures... corrosion resistance and provides a high quality finish. Stainless steel guarantees the longevity and robustness of the equipment over time. The epoxy paint ensures better grip. Read more

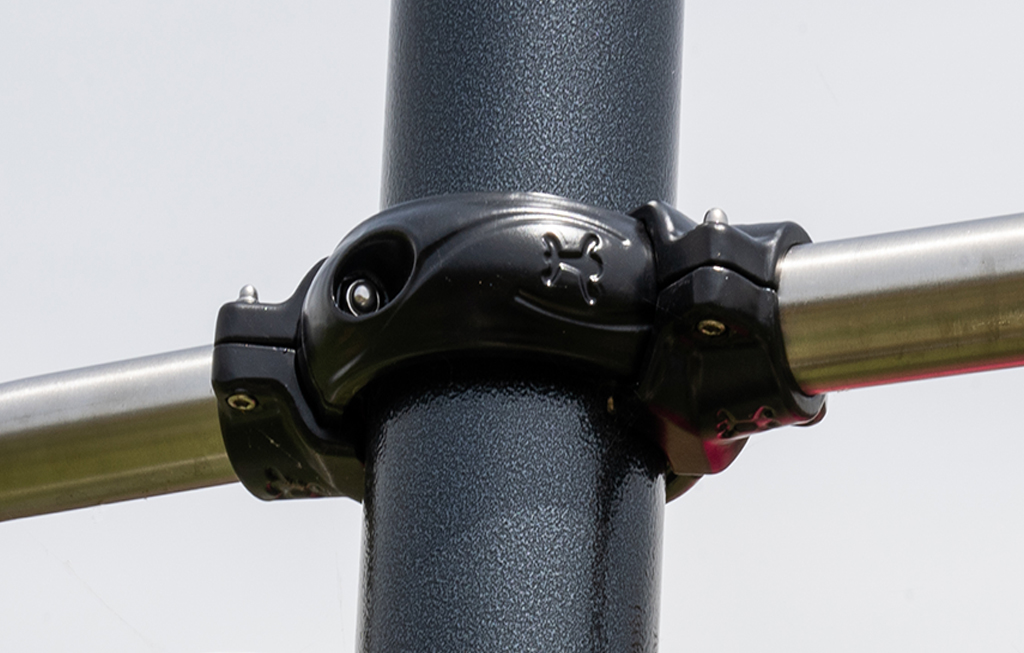

The fixing collars are made of painted aluminium.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

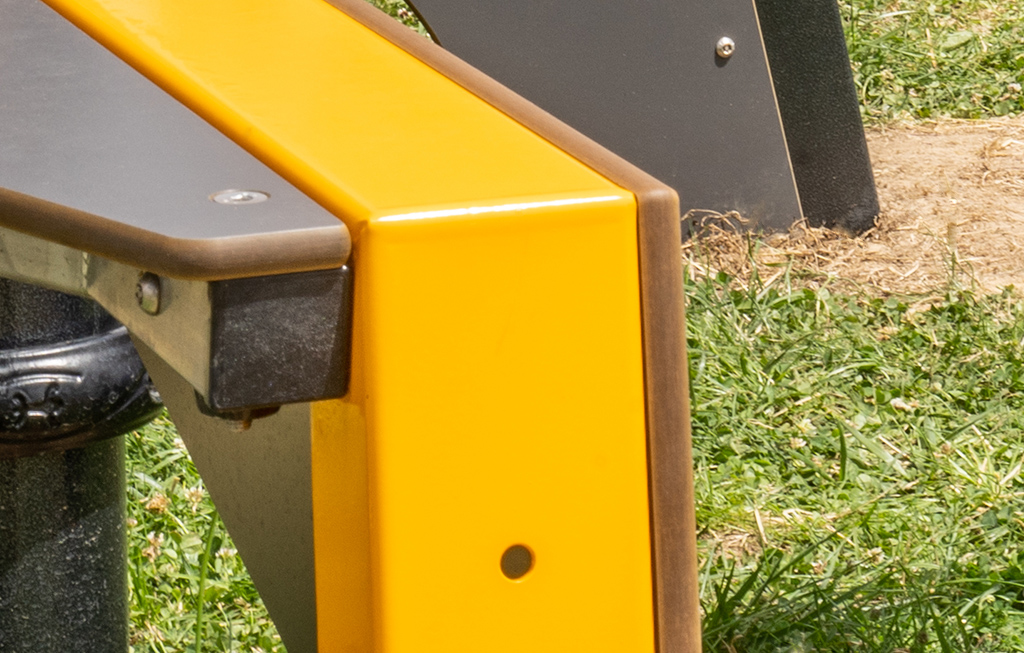

The Central Column seating is supported by a painted galvanized steel frame structure.

The 70 x 70mm post is made of painted galvanised steel, ensuring robustness and durability.

The cap is made of painted stainless steel.

The polyurethane foam seats and backrests ensure lasting comfort. Polyurethane foam is a resistant and shape memory material that helps to prevent overheating.

The handles are made of polyvinyl chloride.

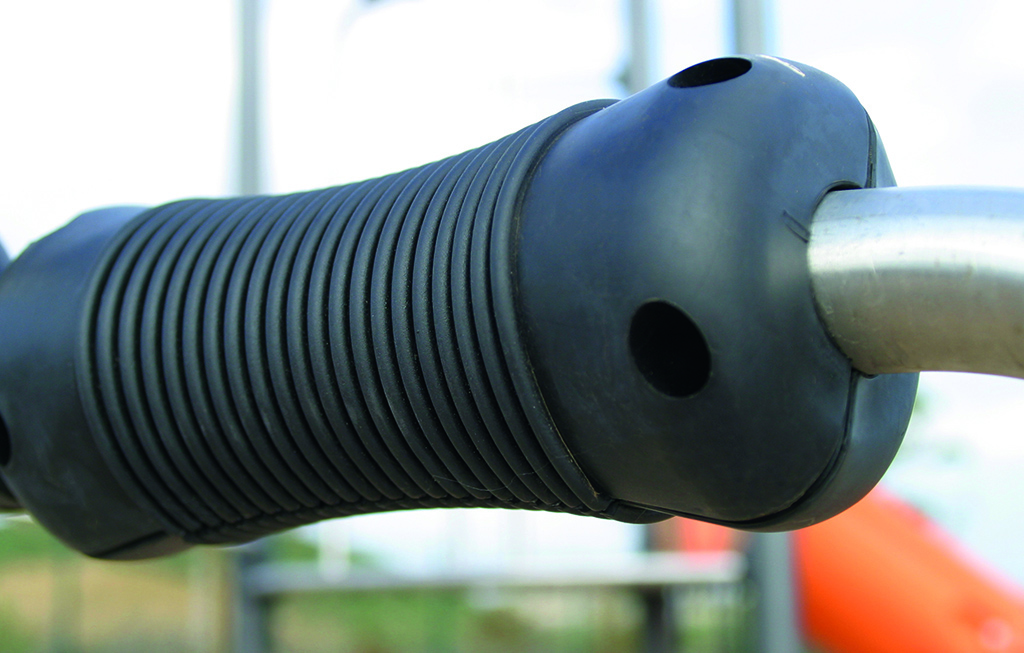

The steps are made with a non-slip rubber overmould.

The hydraulic oil piston is made up of elements manufactured from chrome, aluminium and stainless steel. Users can adjust the resistance from just a few kilogrammes... up to as much as 60kg on certain machines. Read more
