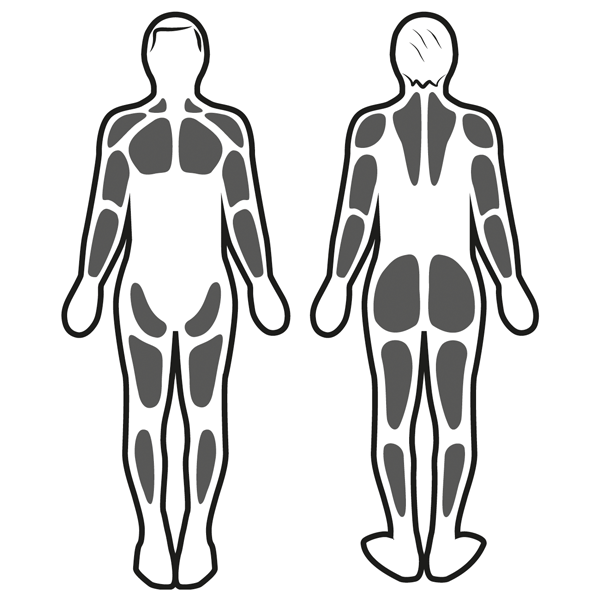

Muscle stimulation

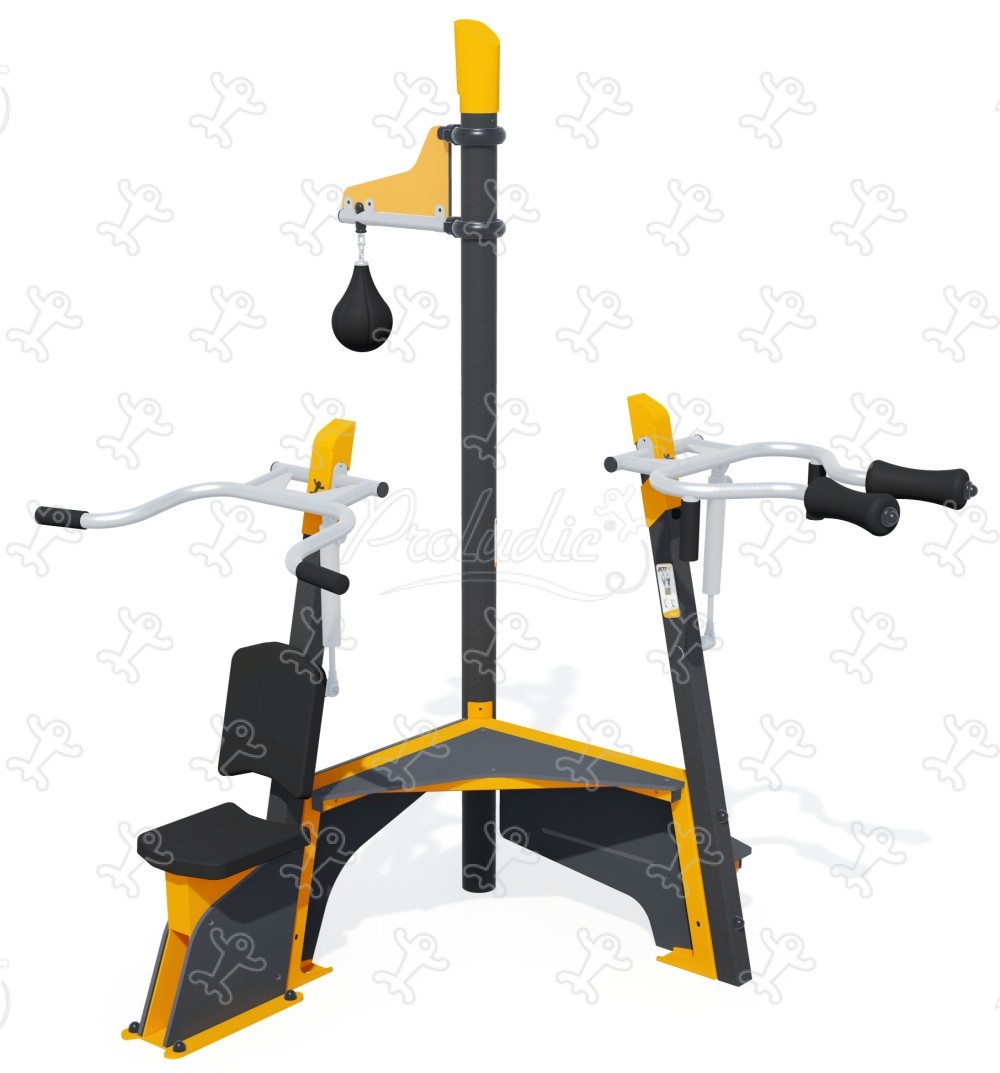

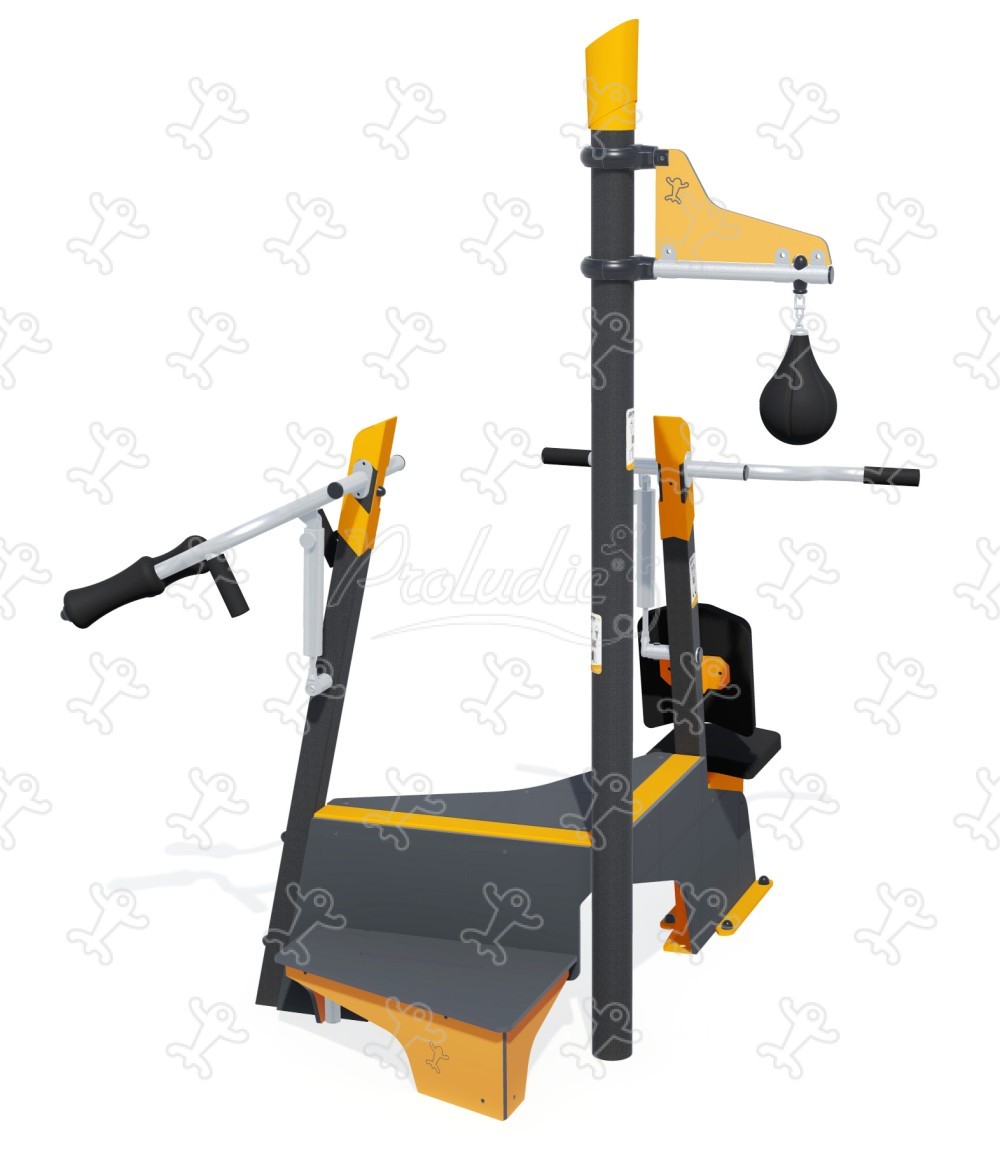

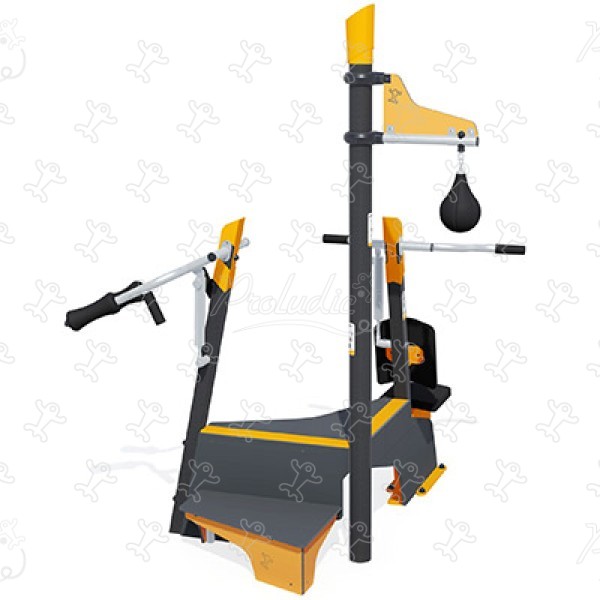

ACTI’Fit - Compact training centre fun-sports station - J37110®

We have created the reference J37110® in our "ACTI’Fit" range. This activity equipment is accessible from 10 years. It can accommodate up to 5 users.

The size of the module is: 2.04 m length, 1.89 m width, 2.55 m. high. The free fall height (FFH) is 0.60 m.

8 sports activities

Balancing x1

Jumping x1

Squats x1

Boxing x1

Resistance x2

Lift x2

Specifications

Age range:	10+
Number of users:	5 users
FFH :	0.60 m

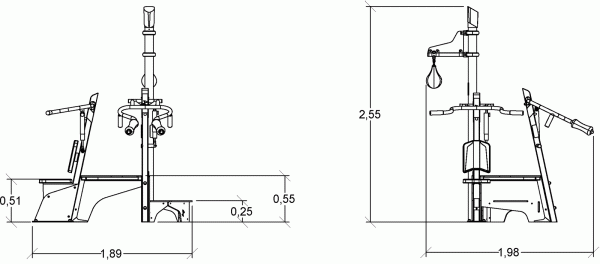

Size:	2.04 x 1.89 x 2.55 m

Equipment installation

Number of installers:	2
Installation time:	12:00:00
Concrete volume:	0.50 m3

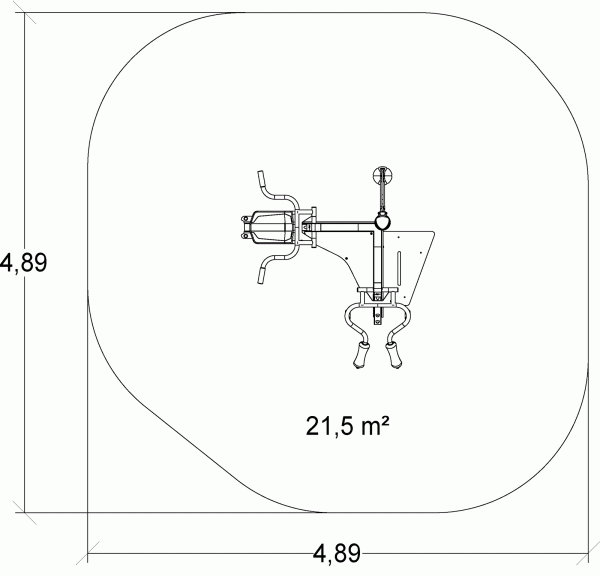

Surface:	21.50 m2
Total weight:	167.28 kg
Weight of the heaviest element:	24.18 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

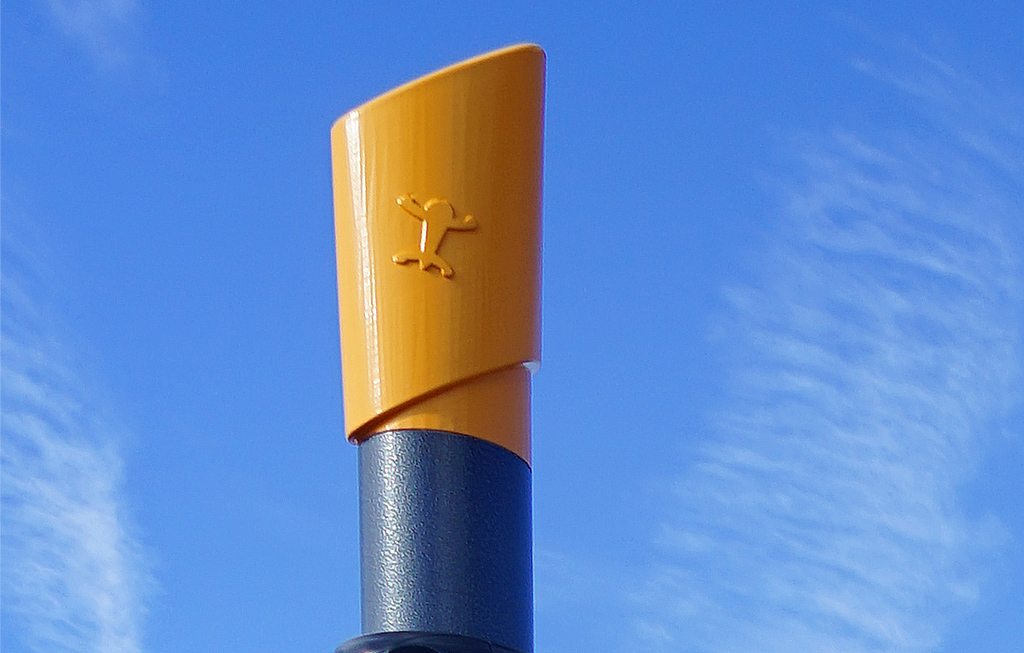

The 102mm diameter post is made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The cap is made of rotary... moulded polyethylene. Read more

The fixing collars are made of painted aluminium.

The tubes are made of 40mm and 33mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The Central Column seating is supported by a painted galvanized steel frame structure.

The 70 x 70mm post is made of painted galvanised steel, ensuring robustness and durability.

The cap is made of painted stainless steel.

The polyurethane foam seats and backrests ensure lasting comfort. Polyurethane foam is a resistant and shape memory material that helps to prevent overheating.

The handles are made of polyvinyl chloride.

The shoulder supports are made of rubber.

The hydraulic oil piston is made up of elements manufactured from chrome, aluminium and stainless steel. Users can adjust the resistance from just a few kilogrammes... up to as much as 60kg on certain machines. Read more
