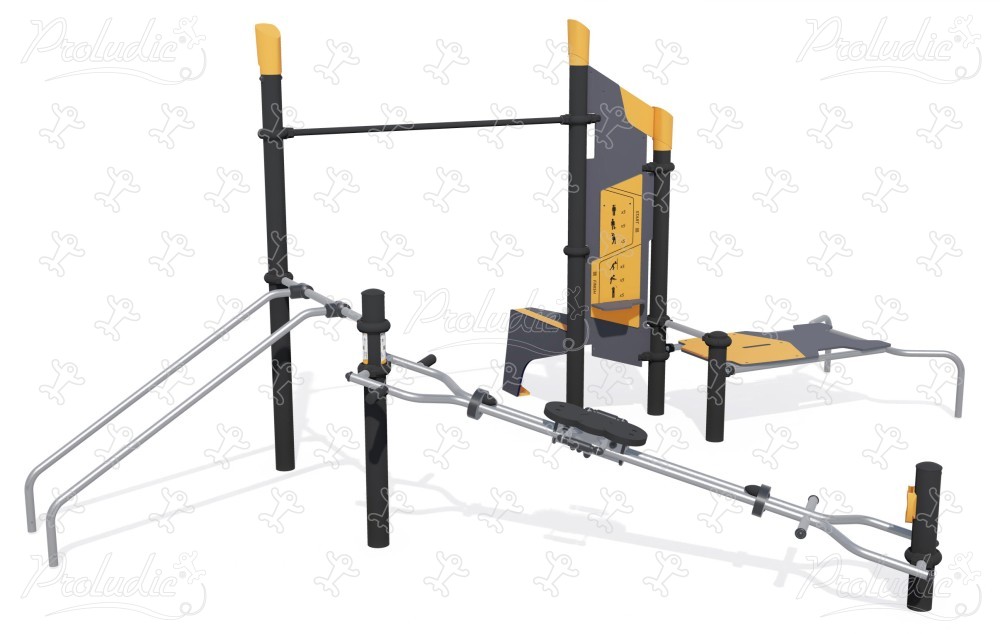

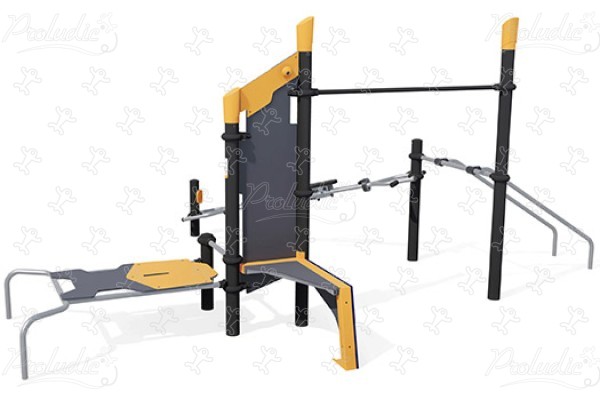

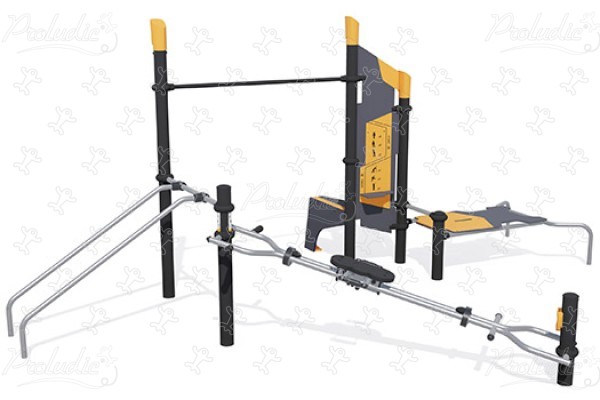

ACTI’Fit - Compact Arm-Leg-Abs fun-sport station - J37106®

We have created the reference J37106® in our "ACTI’Fit" range. This activity equipment is accessible from 10 years. It can accommodate up to 6 users.

The size of the module is: 5.37 m length, 4.15 m width, 2.35 m. high. The free fall height (FFH) is 1.07 m.

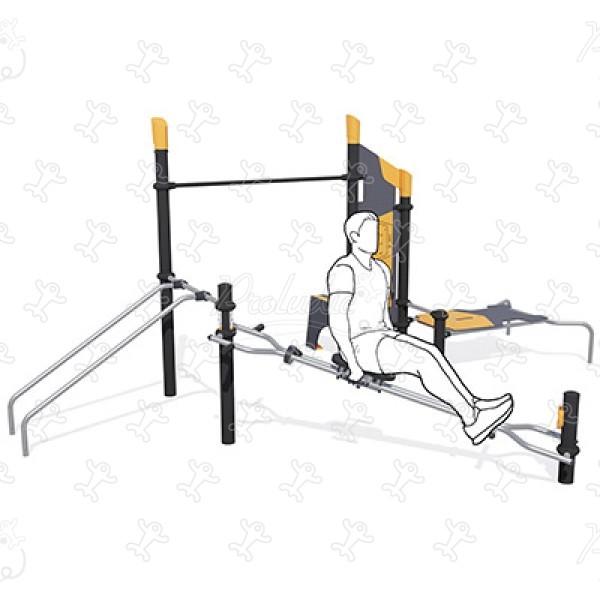

8 sports activities

Hanging x1

Pull-ups x2

Dips x1

Push-ups x2

Abs x1

Rowing x1

5 ludo-sport motivations

Application Acti'Fun

Multimedia

Sharing

Diversity

Challenge

Specifications

Age range:	10+
Number of users:	6 users
FFH :	1.07 m
Size:	5.37 x 4.15 x 2.35 m

Equipment installation

Number of installers:	2
Installation time:	20:00:00
Concrete volume:	1.40 m3
Surface:	44.00 m2
Total weight:	212.34 kg
Weight of the heaviest element:	23.43 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 102mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance.

The caps are made of painted aluminium (A) or rotary moulded polyethylene (B).

The tubes are made of 40mm and 33mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The tubes used for the Parallel bars and Suspension bars are made of electro-galvanized steel (diameter 34 mm) and stainless steel (diameter 40 mm), coated with epoxy paint. Electrogalvanization ensures... corrosion resistance and provides a high quality finish. Stainless steel guarantees the longevity and robustness of the equipment over time. The epoxy paint ensures better grip. Read more

The fixing collars are made of painted aluminium.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
