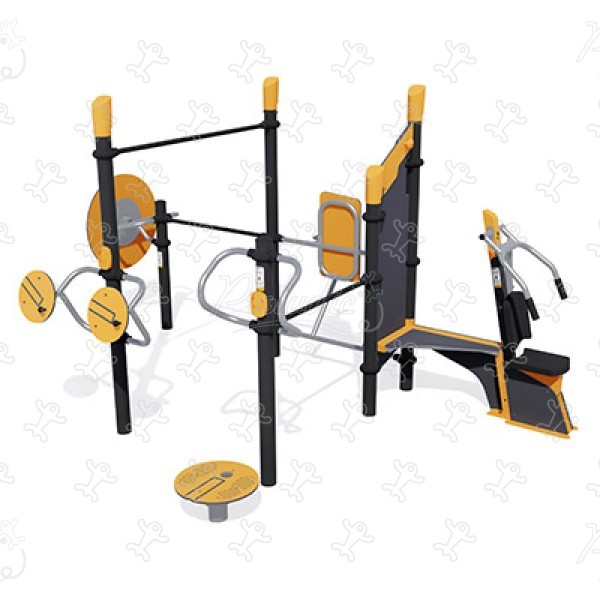

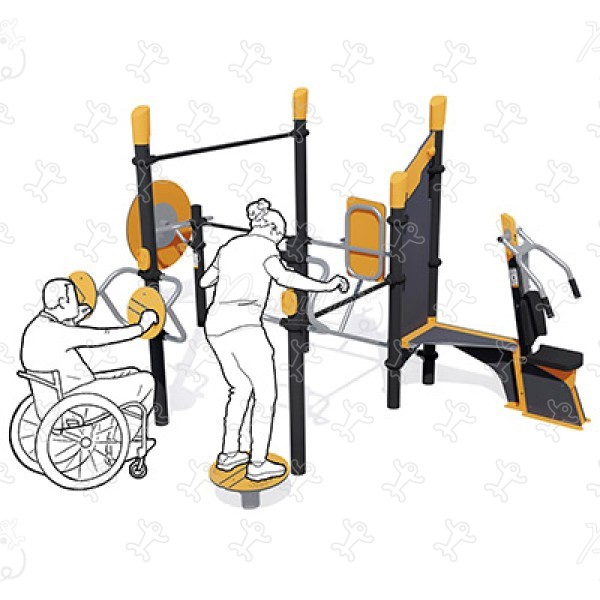

Senior fun-sport station
J37105®
Sports Equation

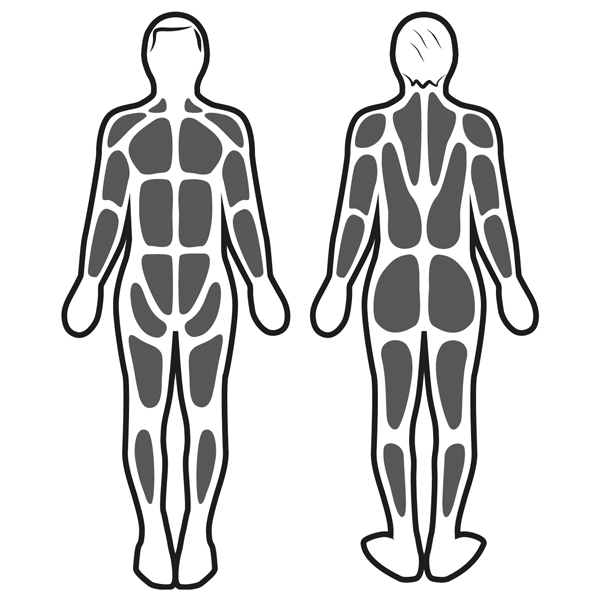

Muscle stimulation

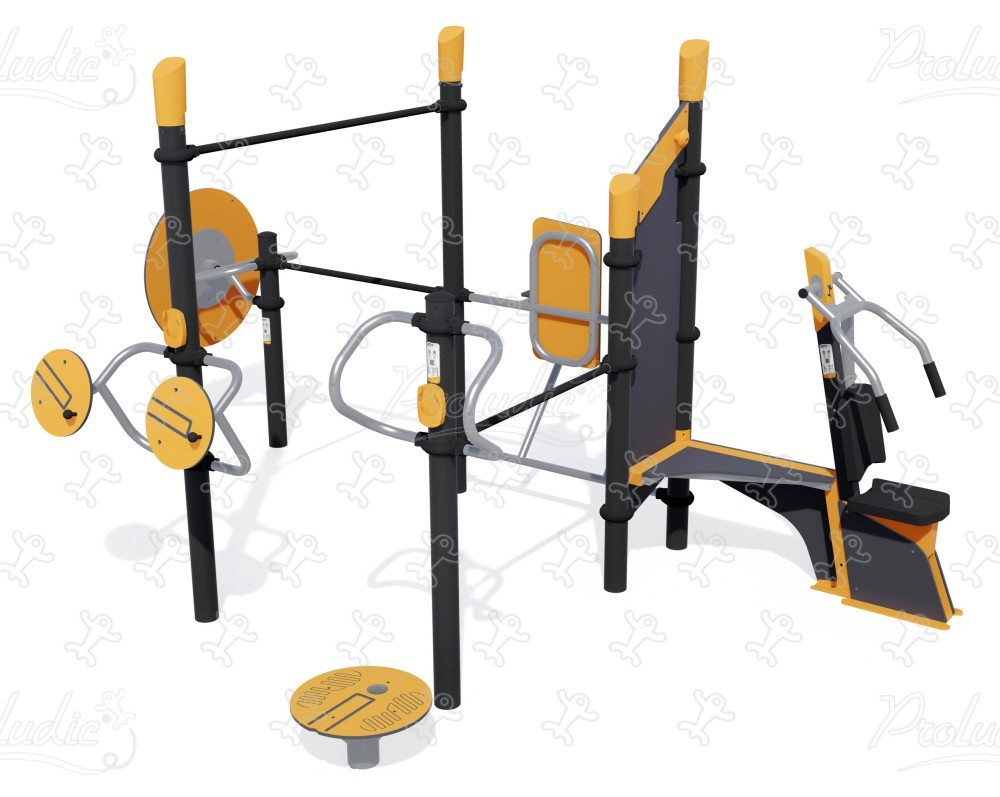

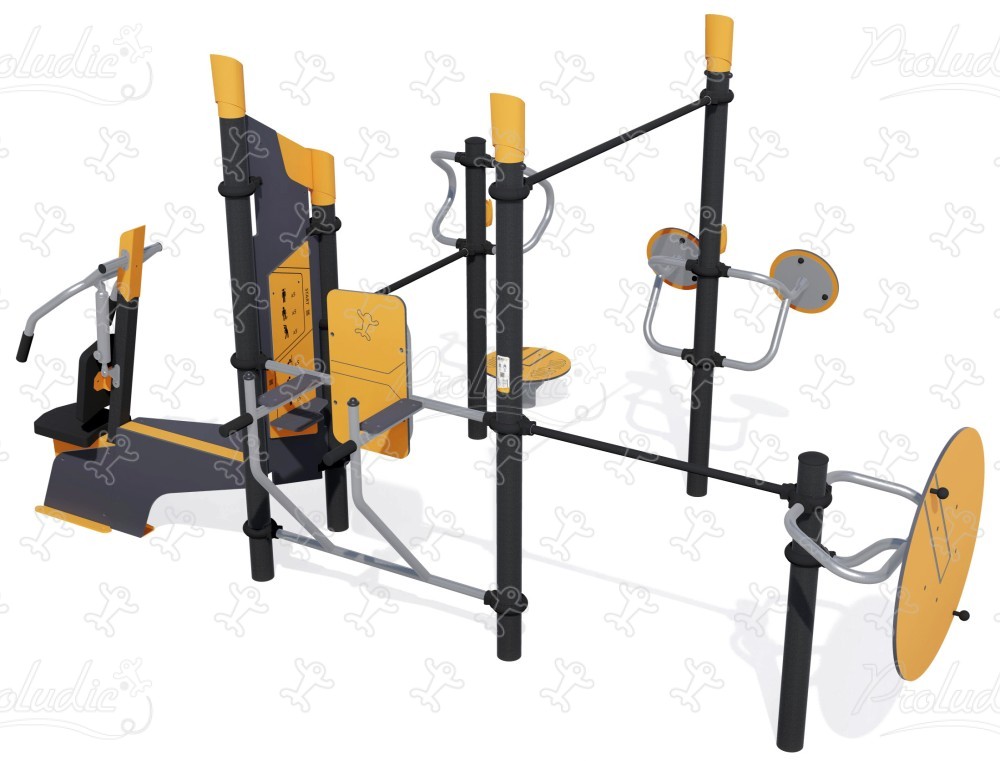

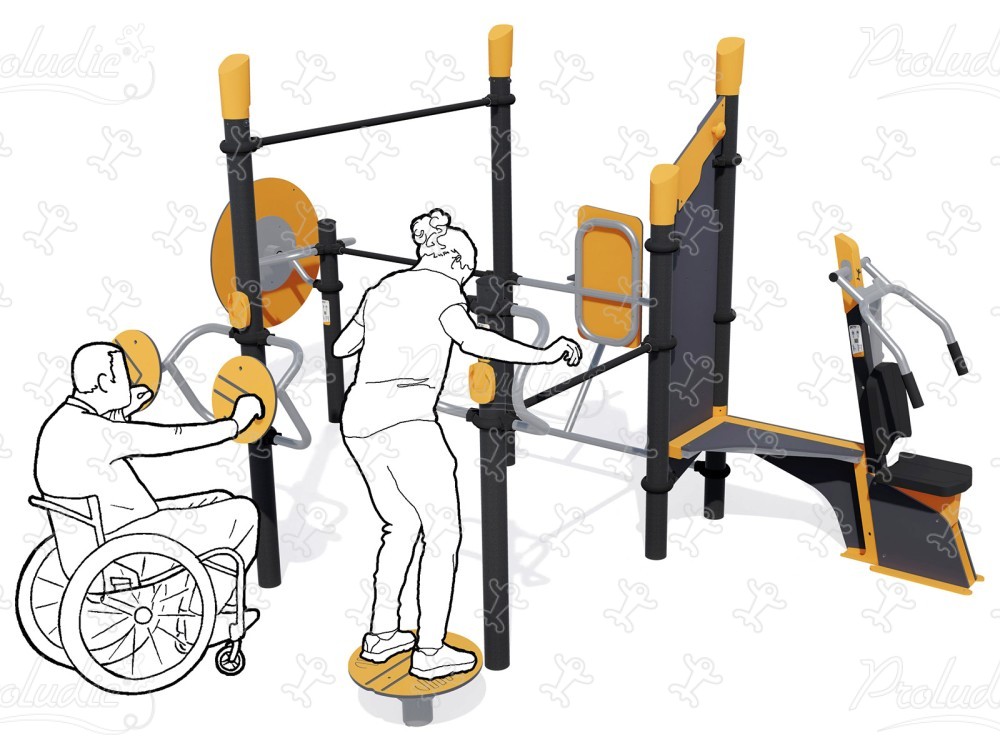

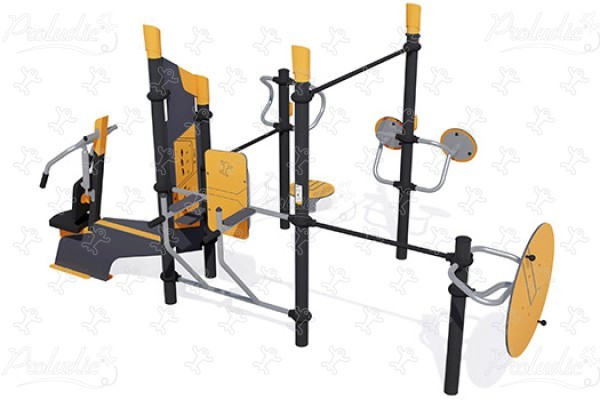

We have created the reference J37105® in our "ACTI’Fit" range. This activity equipment is accessible from 10 years. It can accommodate up to 10 users.

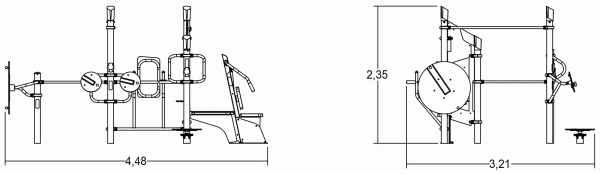

The size of the module is: 4.48 m length, 3.21 m width, 2.35 m. high. The free fall height (FFH) is 1.10 m.
| Age range: | 10+ |
| Number of users: | 10 users |
| FFH : | 1.10 m |
| Size: | 4.48 x 3.21 x 2.35 m |
| Number of installers: | 2 |
| Installation time: | 20:00:00 |
| Concrete volume: | 1.35 m3 |

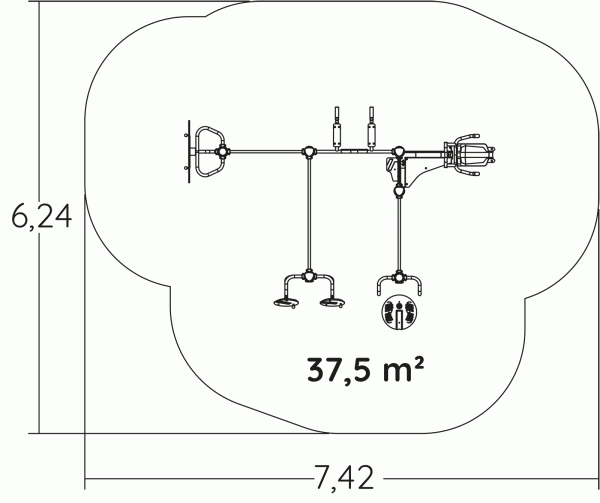

| Surface: | 37.50 m2 |
| Total weight: | 327.38 kg |
| Weight of the heaviest element: | 21.53 kg |
Repairability
8.65 /10
The 102mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance.
The caps are made of painted aluminium (A) or rotary moulded polyethylene (B).
The tubes are made of 40mm and 33mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
The tubes used for the Parallel bars and Suspension bars are made of electro-galvanized steel (diameter 34 mm) and stainless steel (diameter 40 mm), coated with epoxy paint. Electrogalvanization ensures... corrosion resistance and provides a high quality finish. Stainless steel guarantees the longevity and robustness of the equipment over time. The epoxy paint ensures better grip. Read more
The fixing collars are made of painted aluminium.
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The 70 x 70mm post is made of painted galvanised steel, ensuring robustness and durability.
The cap is made of painted stainless steel.
The structure of the equipment is made of painted galvanised steel. The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent... weather and vandal resistance properties. Read more
The polyurethane foam seats and backrests ensure lasting comfort. Polyurethane foam is a resistant and shape memory material that helps to prevent overheating.
The hydraulic oil piston is made up of elements manufactured from chrome, aluminium and stainless steel. Users can adjust the resistance from just a few kilogrammes... up to as much as 60kg on certain machines. Read more
The handles are made of polyvinyl chloride.
The Balancing board is fitted to a galvanized steel post, diameter 114 mm. A ball and socket joint ensures ease of movement.
The stainless steel rotation system is equipped with bearings.
The smartphone holder is made of polyamide for its strength and rigidity.
The Coat Hook is made of polypropylene.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
