Metropolis - Spoky - J3602

We have created the reference J3602 in our "Metropolis" range. This play equipment is accessible from 2 years. It can accommodate up to 10 users.

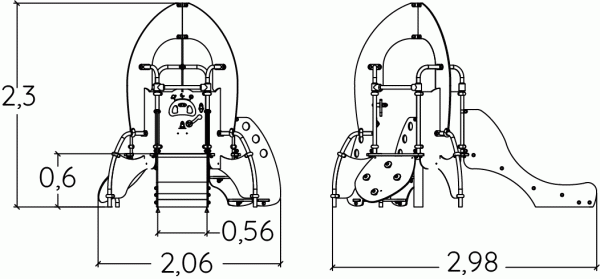

The size of the module is: 2.98 m length, 2.06 m width, 2.30 m. high. The free fall height (FFH) is 1.00 m.

6 play functions

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Thinking x1

Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Specifications

Age range:	2 - 6
Number of users:	10 users
FFH :	1.00 m
Size:	2.98 x 2.06 x 2.30 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Concrete volume:	0.30 m3

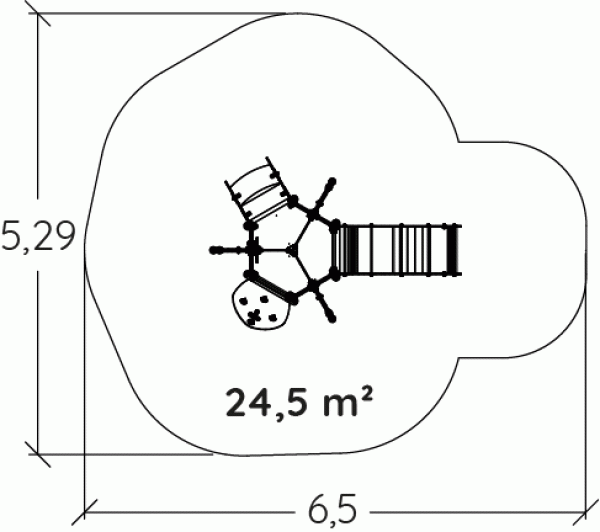

Surface:	24.50 m2
Total weight:	190.97 kg
Weight of the heaviest element:	23.23 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
