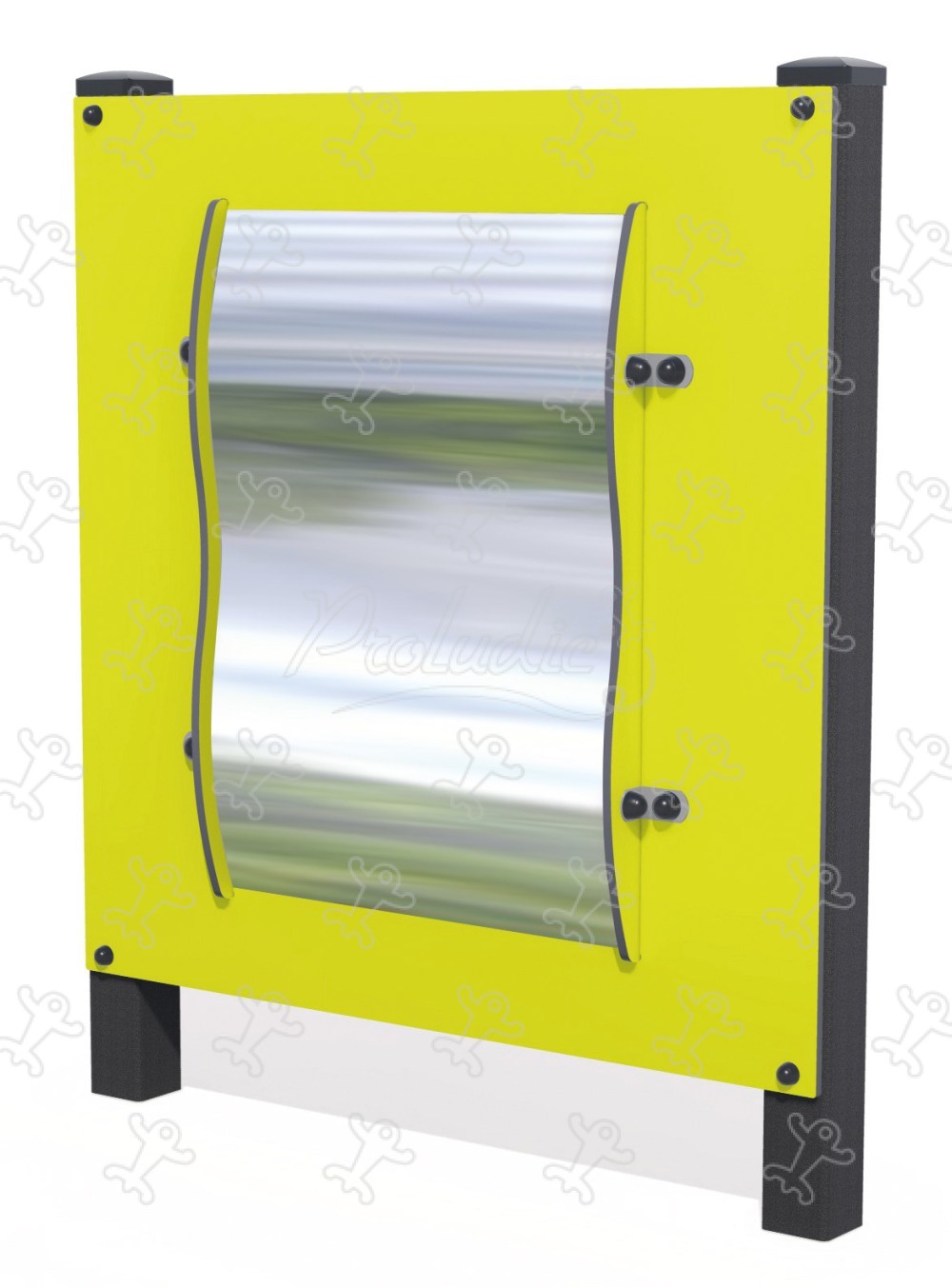

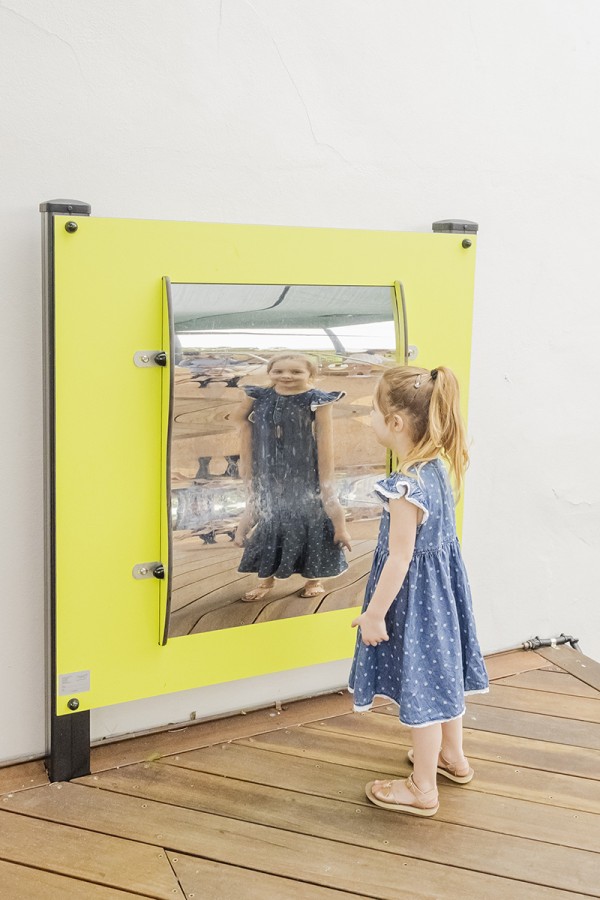

Fun panels & Sound and musical games - Wobbly Mirror - J3428®

We have created the reference J3428® in our "Fun panels & Sound and musical games" range. This play equipment is accessible from 1 year. It can accommodate up to 1 user.

The size of the module is: 1.20 m length, 0.18 m width, 1.41 m. high. The free fall height (FFH) is 0.60 m.

3 play functions

Role play x1

Role plays promote the child's intellectual and social skills.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Visual stimulation x1

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Specifications

Age range:	1+
Number of users:	1 user
FFH :	0.60 m

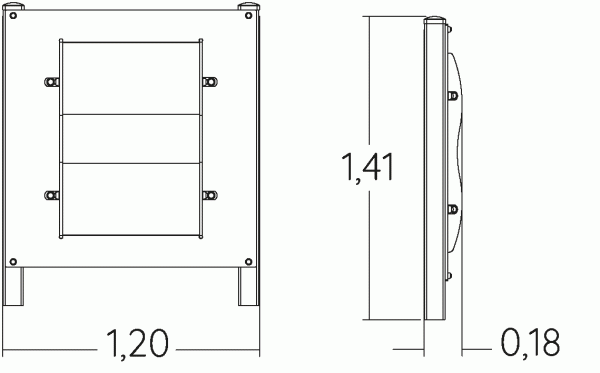

Size:	1.20 x 0.18 x 1.41 m

Equipment installation

Number of installers:	2
Installation time:	01:00:00
Concrete volume:	0.05 m3

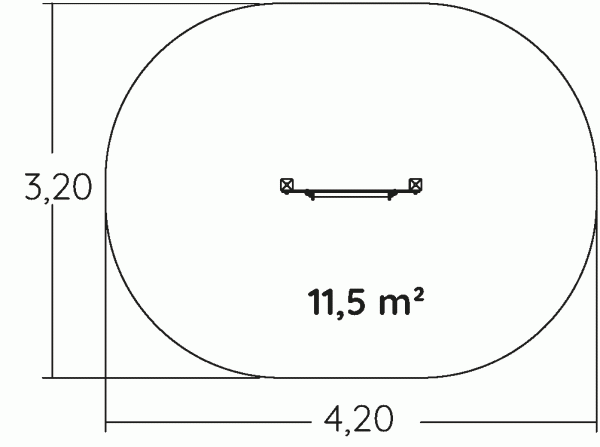

Surface:	11.50 m2
Total weight:	65.52 kg
Weight of the heaviest element:	24.53 kg

Environmental Indicators

Repairability

9.46 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
