Furniture (bench, waste bin, shelter…) - Meeting Point 3 - J2860

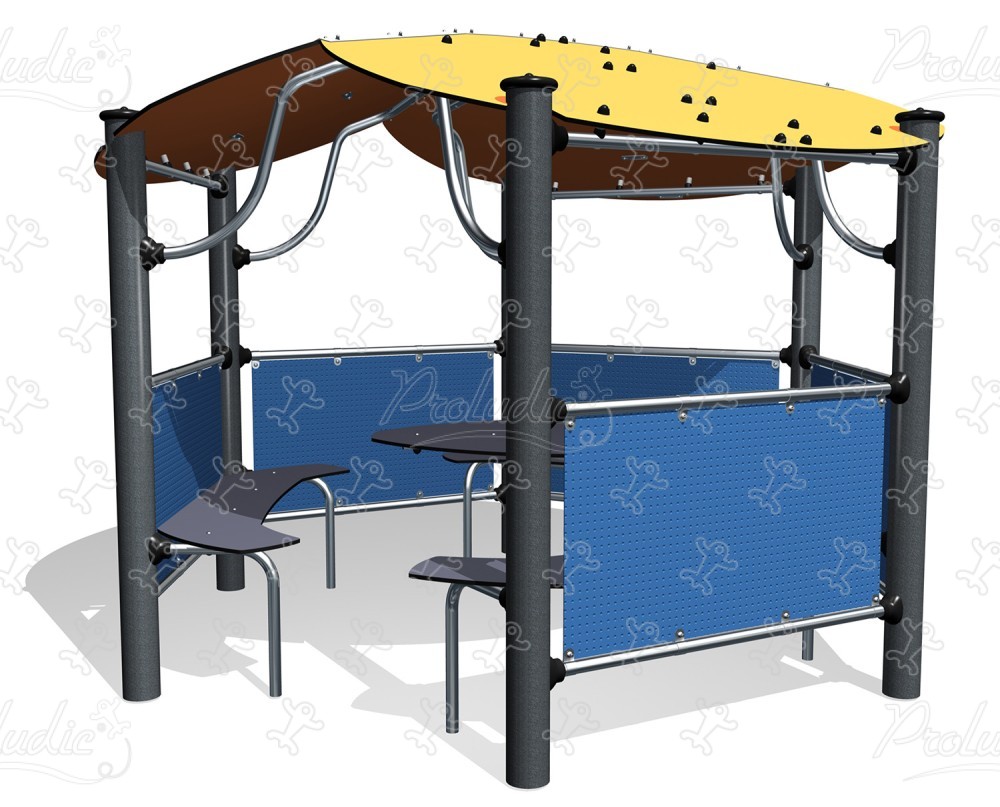

We have created the reference J2860 in our "Furniture (bench, waste bin, shelter…)" range. It can accommodate up to 6 users.

The size of the module is: 3.13 m length, 3.05 m width, 2.30 m. high.

3 play functions

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Resting x1

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Specifications

Age range:
Number of users:	6 users

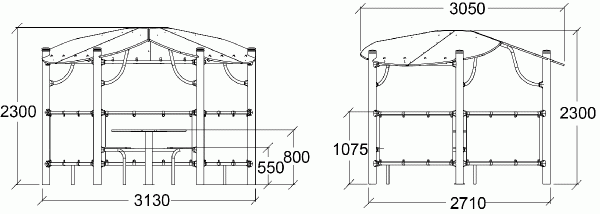

Size:	3.13 x 3.05 x 2.30 m

Equipment installation

Number of installers:	3
Installation time:	08:00:00
Concrete volume:	1.30 m3
Surface:	9.33 m2
Total weight:	445.38 kg
Weight of the heaviest element:	22.17 kg

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The wall panels are made of aluminium sheet 3mm thick. Their surfaces are covered with two layers of polyester epoxy coating.

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The roof, the seats and the table are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
