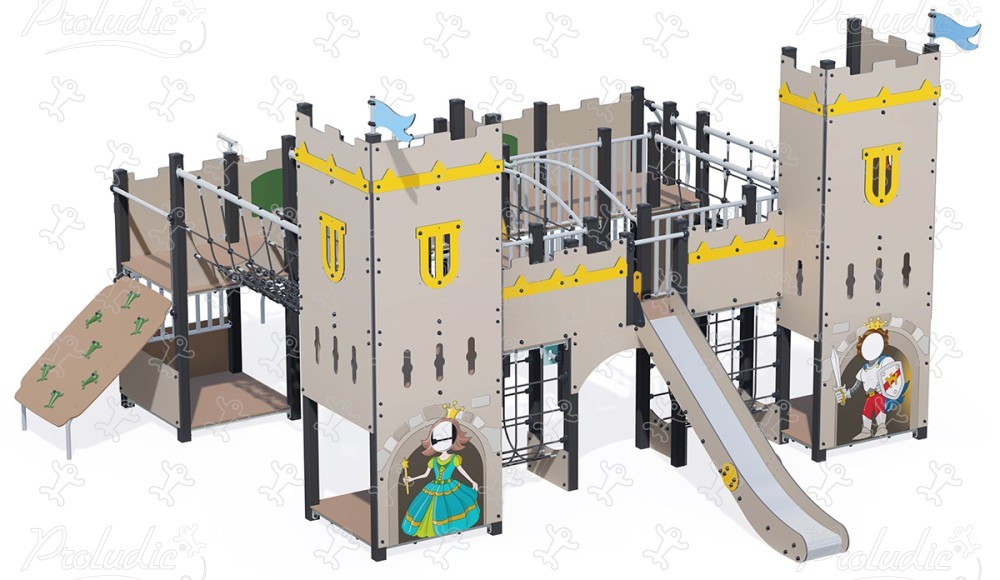

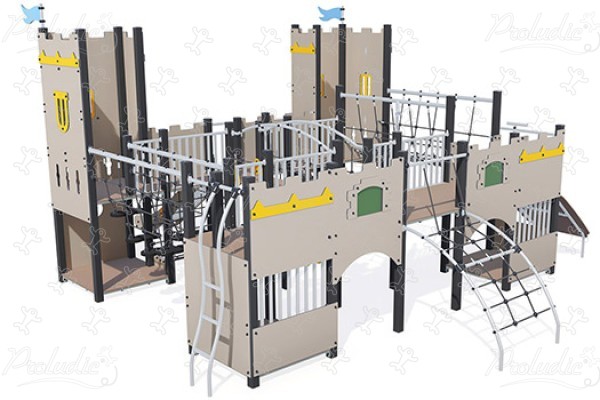

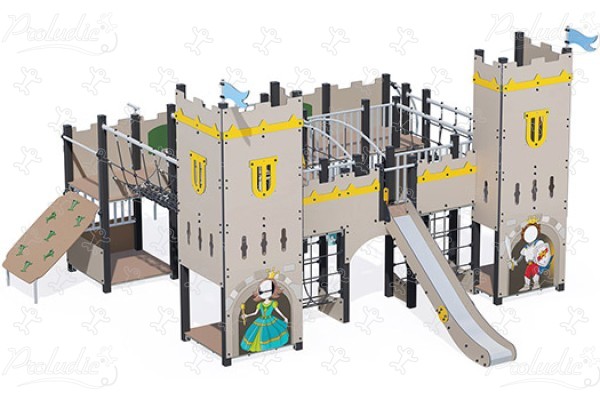

Medieval - The Fort - J2697®

We have created the reference J2697® in our "Medieval" range. This play equipment is accessible from 3 years. It can accommodate up to 45 users.

The size of the module is: 8.00 m length, 7.15 m width, 3.86 m. high. The free fall height (FFH) is 2.50 m.

31 play functions

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Role play x1

Role plays promote the child's intellectual and social skills.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Crawling x2

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Hiding x4

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Balancing x2

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Taking shelter x4

A refuge where the children can take shelter ensures that children have their own space.

Sound stimulation x1

Popular and often shared by numerous children, fun sound activities bring even more life to play areas!

Tactile stimulation x1

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Visual stimulation x5

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x5

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	3+
Number of users:	45 users
FFH :	2.50 m
Size:	8.00 x 7.15 x 3.86 m

Equipment installation

Number of installers:	2
Installation time:	21:00:00
Concrete volume:	0.90 m3
Surface:	83.00 m2
Total weight:	2032.38 kg
Weight of the heaviest element:	33.17 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platform and the climbing wall are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece. The sides are made from a 13mm thick compact material... (HPL). Read more
