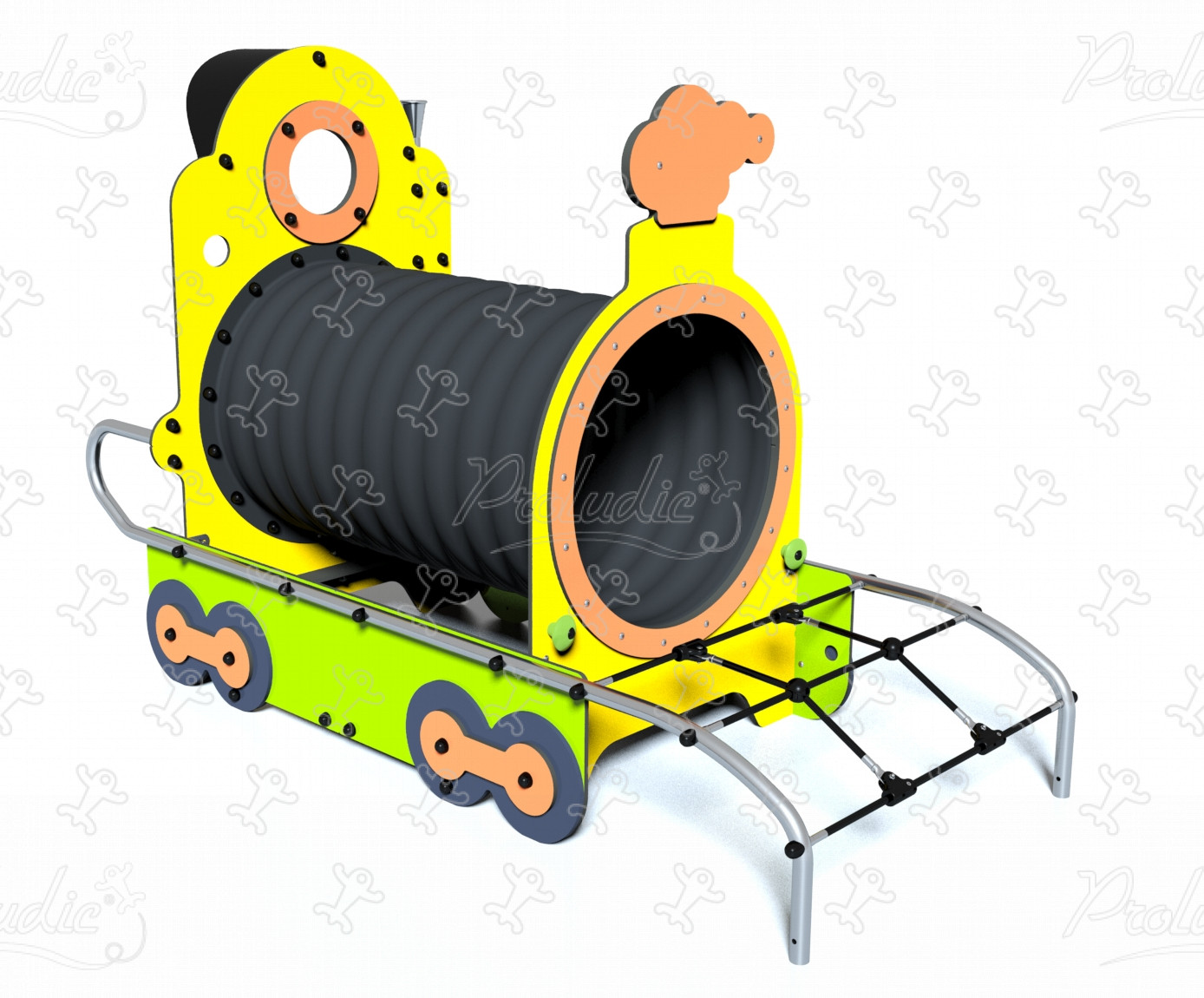

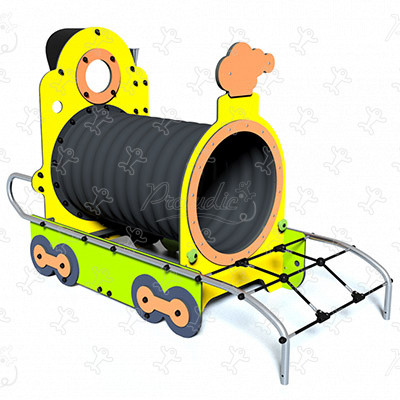

City - Locomotive - J2692

We have created the reference J2692 in our "City" range. This play equipment is accessible from 2 years. It can accommodate up to 4 users.

The size of the module is: 2.46 m length, 1.18 m width, 1.75 m. high. The free fall height (FFH) is 0.60 m.

9 play functions

Role play x1

Role plays promote the child's intellectual and social skills.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Sound stimulation x1

Popular and often shared by numerous children, fun sound activities bring even more life to play areas!

Visual stimulation x1

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	2 - 6
Number of users:	4 users
FFH :	0.60 m

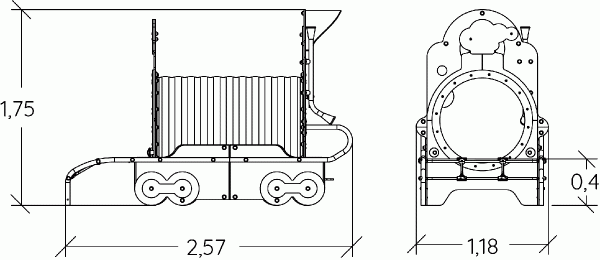

Size:	2.46 x 1.18 x 1.75 m

Equipment installation

Number of installers:	2
Installation time:	03:00:00
Concrete volume:	0.20 m3

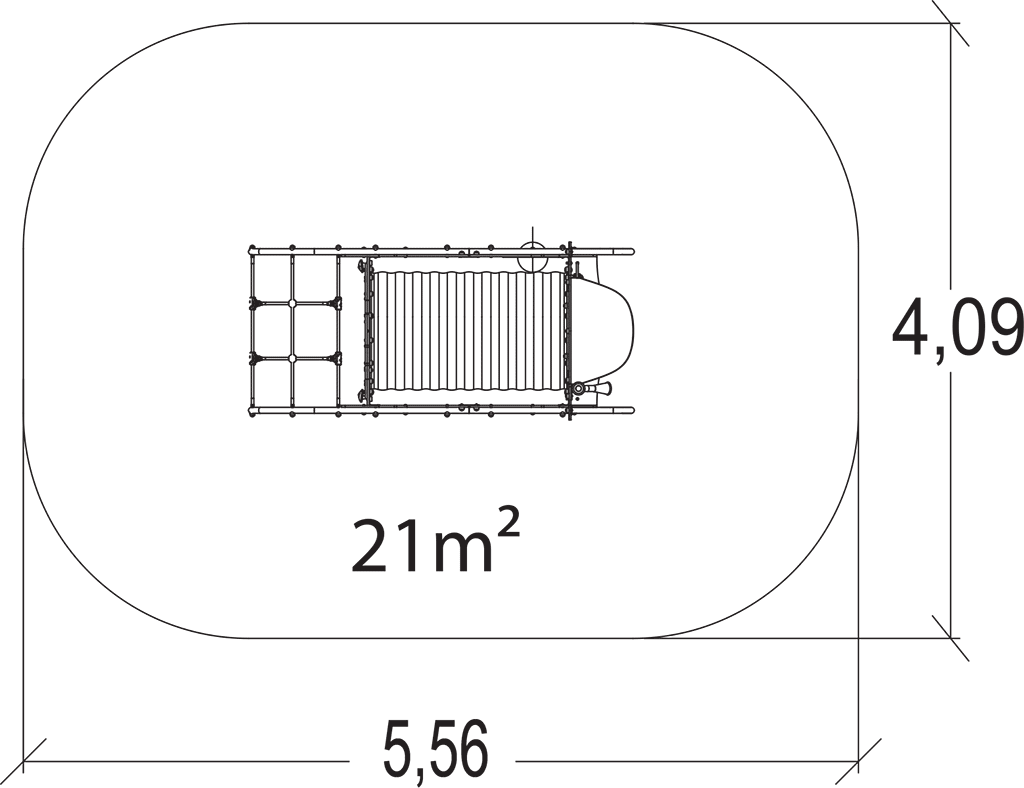

Surface:	21.00 m2
Total weight:	134.78 kg
Weight of the heaviest element:	16.50 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The roof is made of aluminium painted sheet.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
