City - Take-off Plane - J2689®

We have created the reference J2689® in our "City" range. This play equipment is accessible from 3 years. It can accommodate up to 10 users.

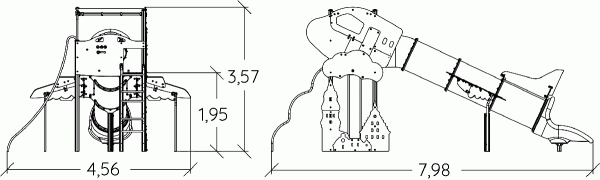

The size of the module is: 7.98 m length, 4.56 m width, 3.57 m. high. The free fall height (FFH) is 1.95 m.

8 play functions

Role play x1

Role plays promote the child's intellectual and social skills.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Tactile stimulation x1

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Specifications

Age range:	3+
Number of users:	10 users
FFH :	1.95 m
Size:	7.98 x 4.56 x 3.57 m

Equipment installation

Number of installers:	2
Installation time:	10:00:00
Concrete volume:	0.39 m3

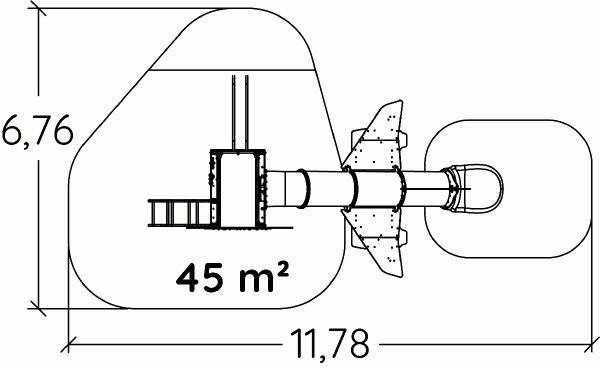

Surface:	45.00 m2
Total weight:	673.83 kg
Weight of the heaviest element:	41.00 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The slide is made of rotomoulded polyethylene.

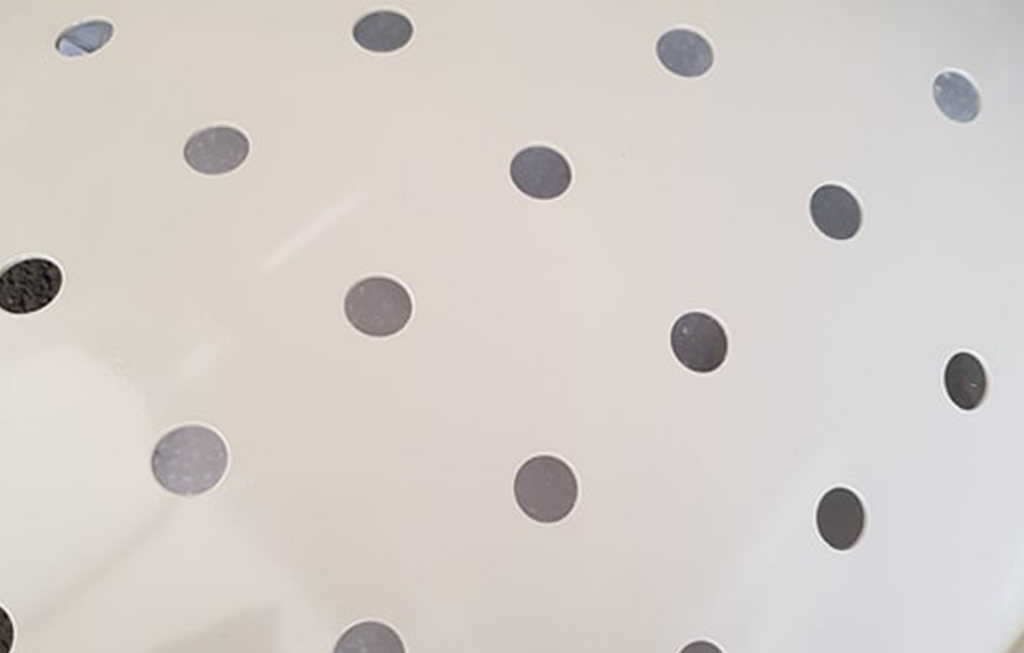

The roof is made of aluminium painted sheet.

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

Everything you need to know about the materials used by Proludic
