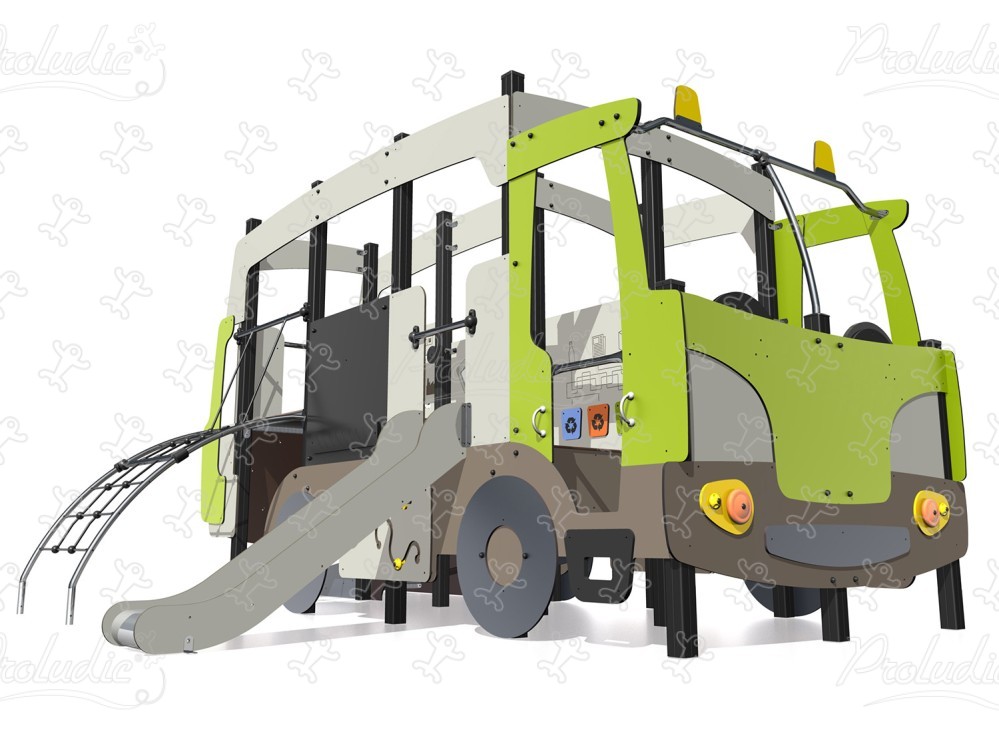

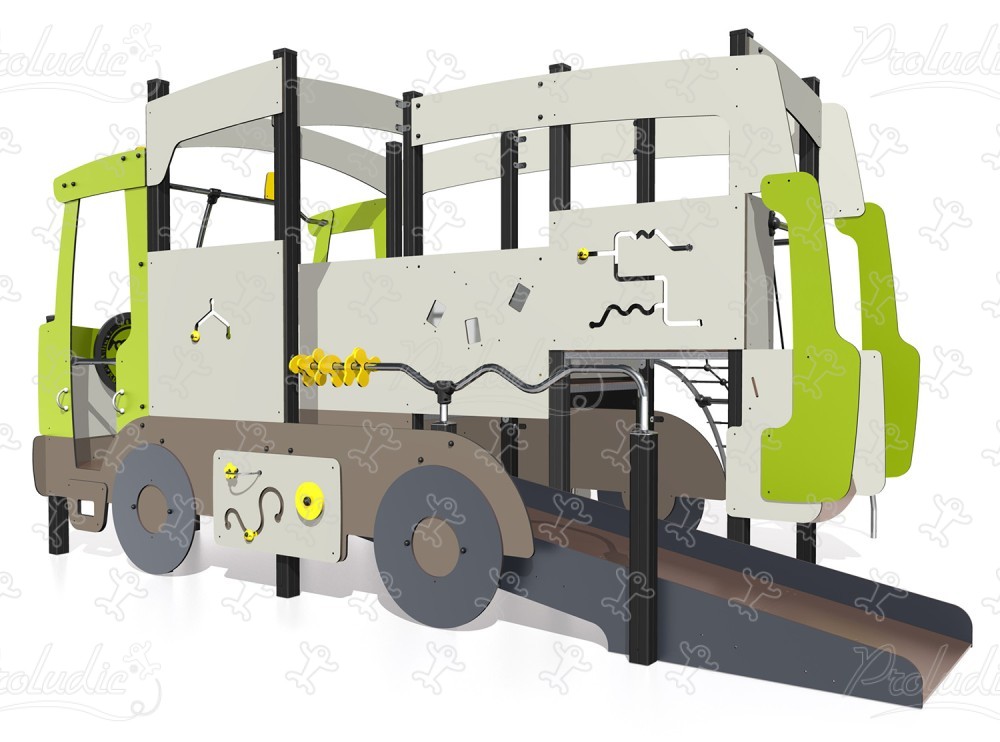

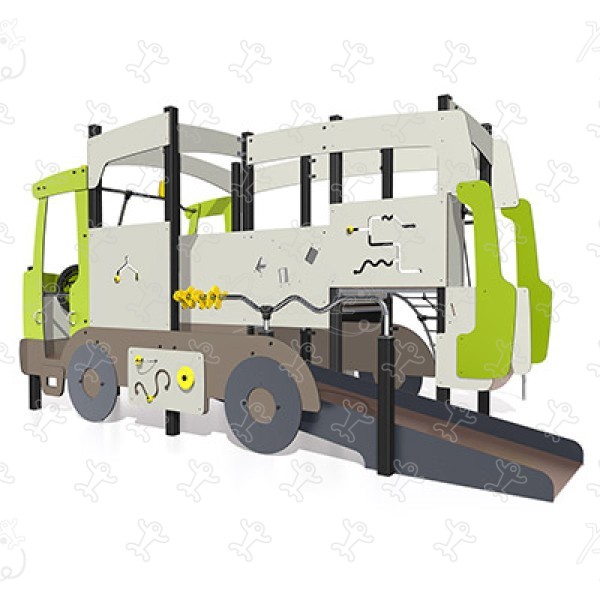

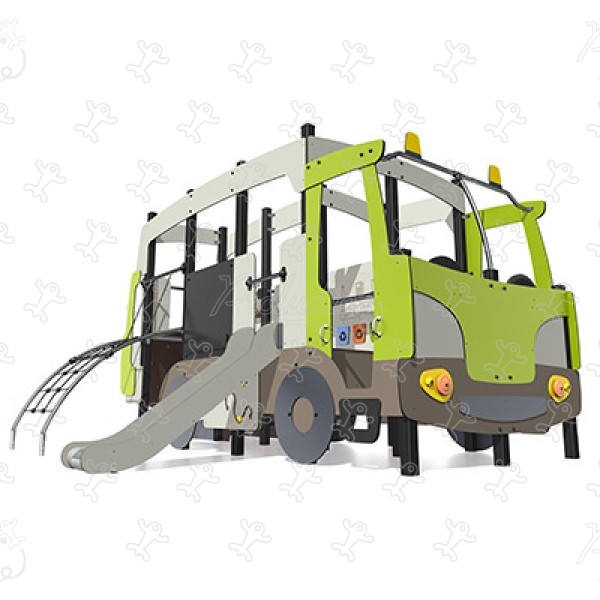

City - Recycling Truck - J2684

We have created the reference J2684 in our "City" range. This play equipment is accessible from 2 years. It can accommodate up to 20 users.

The size of the module is: 5.60 m length, 4.20 m width, 3.00 m. high. The free fall height (FFH) is 1.37 m.

38 play functions

Handling x11

A great exercise for developing motor skills and abilities in young children while having fun.

Role play x1

Role plays promote the child's intellectual and social skills.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Thinking x7

Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.

Tactile stimulation x7

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Visual stimulation x4

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x4

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Specifications

Age range:	2+
Number of users:	20 users
FFH :	1.37 m
Size:	5.60 x 4.20 x 3.00 m

Equipment installation

Number of installers:	2
Installation time:	24:00:00

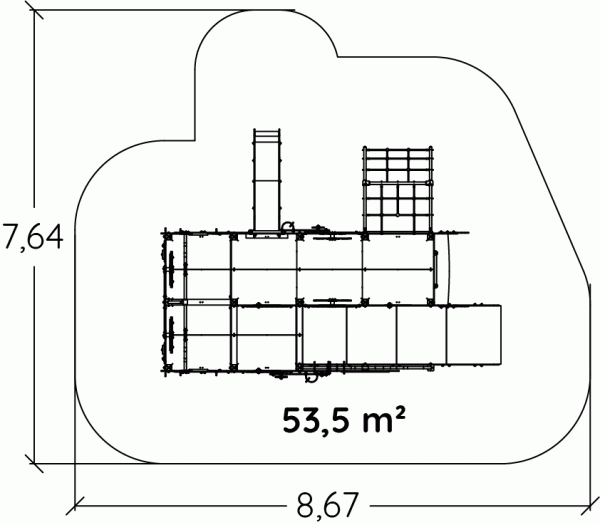

Surface:	53.50 m2
Total weight:	1401.78 kg
Weight of the heaviest element:	28.02 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece. The sides are made from a 13mm thick compact material... (HPL). Read more
