Aquatica - The Odyssey - J2646-M

We have created the reference J2646-M in our "Aquatica" range. This play equipment is accessible from 2 years. It can accommodate up to 12 users.

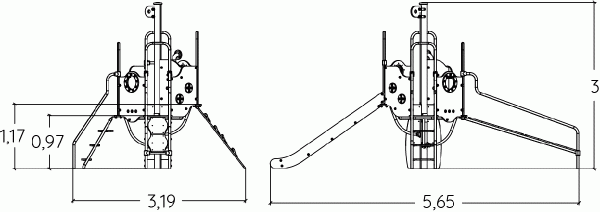

The size of the module is: 5.65 m length, 3.19 m width, 3.00 m. high. The free fall height (FFH) is 1.17 m.

9 play functions

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Role play x1

Role plays promote the child's intellectual and social skills.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Visual stimulation x1

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Sound stimulation x1

Popular and often shared by numerous children, fun sound activities bring even more life to play areas!

Specifications

Age range:	2+
Number of users:	12 users
FFH :	1.17 m
Size:	5.65 x 3.19 x 3.00 m

Equipment installation

Number of installers:	2
Installation time:	11:30:00
Concrete volume:	0.40 m3

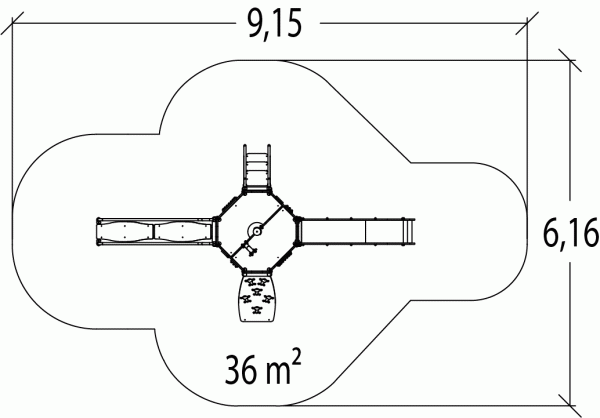

Surface:	36.00 m2
Total weight:	290.30 kg
Weight of the heaviest element:	28.52 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter post is made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The cap is... made of injection moulded polyamide. Read more

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms, the steps and the climbing wall are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
