Metropolis finish - J2643-M-GF

We have created the reference J2643-M-GF in our "Metropolis finish" range. This play equipment is accessible from 3 years. It can accommodate up to 11 users.

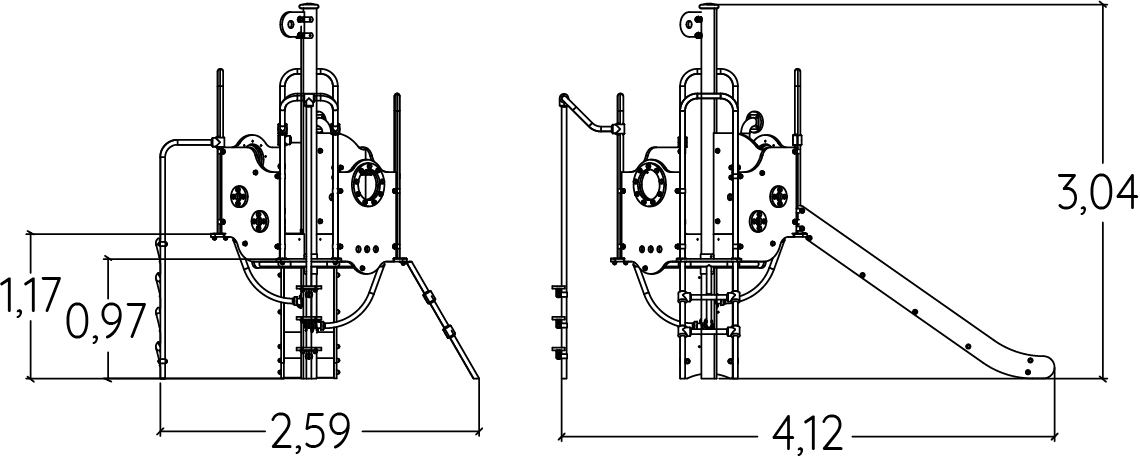

The size of the module is: 4.12 m length, 2.60 m width, 3.02 m. high. The free fall height (FFH) is 1.30 m.

Other finishes available

J2643-M-GO

J2643-M

Specifications

Age range:	3+
Number of users:	11 users
FFH :	1.30 m
Size:	4.12 x 2.60 x 3.02 m

Equipment installation

Number of installers:	2
Installation time:	10:00:00
Concrete volume:	0.30 m3

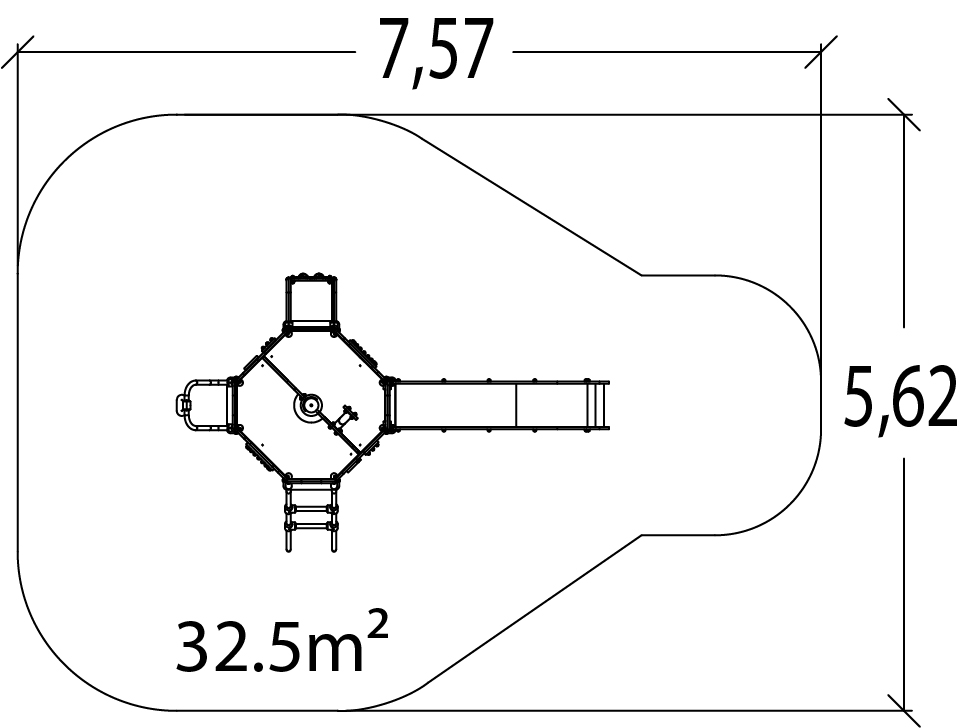

Surface:	32.50 m2
Total weight:	278.49 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter post is made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The cap is... made of injection moulded polyamide. Read more

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms, the steps and the climbing wall are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
