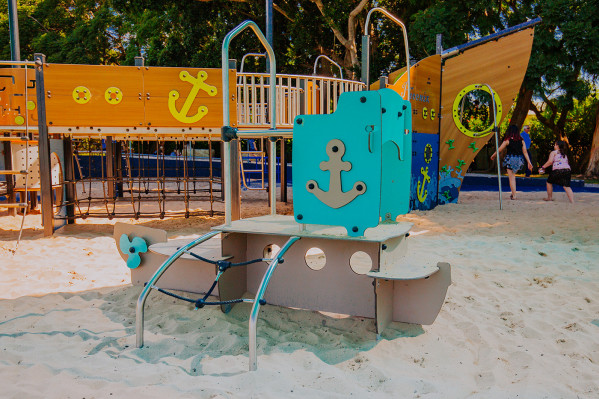

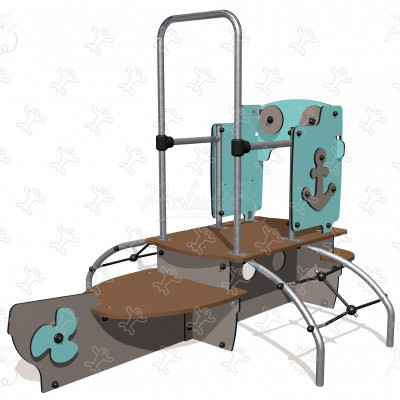

Aquatica - Trident - J2615

We have created the reference J2615 in our "Aquatica" range. This play equipment is accessible from 2 years. It can accommodate up to 7 users.

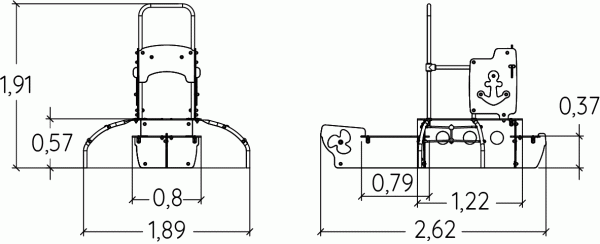

The size of the module is: 2.62 m length, 1.89 m width, 1.91 m. high. The free fall height (FFH) is 0.58 m.

4 play functions

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Role play x1

Role plays promote the child's intellectual and social skills.

Resting x1

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Specifications

Age range:	2 - 6
Number of users:	7 users
FFH :	0.58 m
Size:	2.62 x 1.89 x 1.91 m

Equipment installation

Number of installers:	2

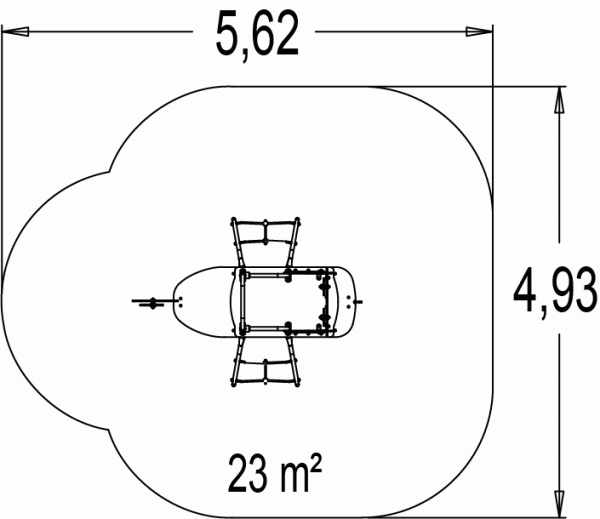

Surface:	23.00 m2
Total weight:	143.23 kg
Weight of the heaviest element:	19.09 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
