Ixo - J2583-M

We have created the reference J2583-M in our "Ixo" range. This play equipment is accessible from 6 years. It can accommodate up to 18 users.

The size of the module is: 7.47 m length, 6.28 m width, 3.40 m. high. The free fall height (FFH) is 2.20 m.

17 play functions

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

By playing together, children learn how to interact with other personalities and behaviors.

Resting x3

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Balancing x4

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x2

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Specifications

Age range:	6+
Number of users:	18 users
FFH :	2.20 m
Size:	7.47 x 6.28 x 3.40 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Concrete volume:	1.10 m3

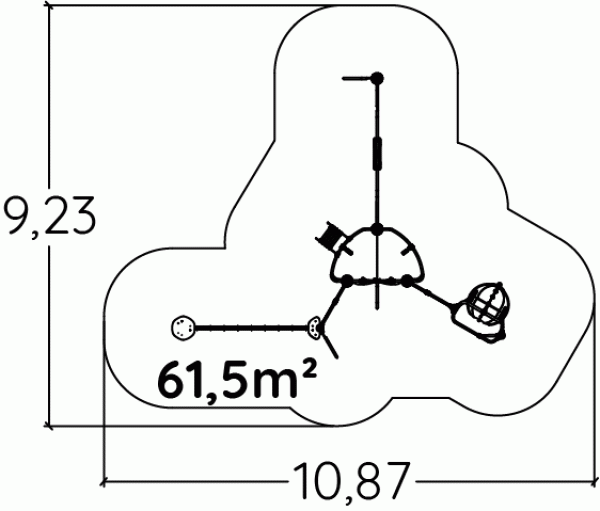

Surface:	61.50 m2
Total weight:	355.51 kg
Weight of the heaviest element:	65.98 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

Injection moulded polyamide fixings connect the posts with the platforms and the various play feautures.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by lacquered galvanised steel supports,... located on the underside of the platforms. Read more

The rubber ring is a monobloc element made of polyethylene with an outside diameter of 70cm and inside diameter of 45cm.

The pod is made of 4mm thick polyester. It is a durable material and this ensures its resistance to weathering and UV radiation.

The strap is made of 3 ropes linked together with aluminium pliers. Each rope, of 16mm diameter, is made up of galvanized steel cables covered in polypropylene.
