Cableways - Aerospeed - J2582-M

We have created the reference J2582-M in our "Cableways" range. This play equipment is accessible from 7 years. It can accommodate up to 1 user.

The size of the module is: 7.40 m length, 3.30 m width, 3.00 m. high. The free fall height (FFH) is 1.00 m.

4 play functions

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Hanging x1

This fun activity allows you to explore a new way of playing, of managing space and the void below.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	7+
Number of users:	1 user
FFH :	1.00 m
Size:	7.40 x 3.30 x 3.00 m

Equipment installation

Number of installers:	2
Installation time:	10:00:00
Concrete volume:	0.23 m3

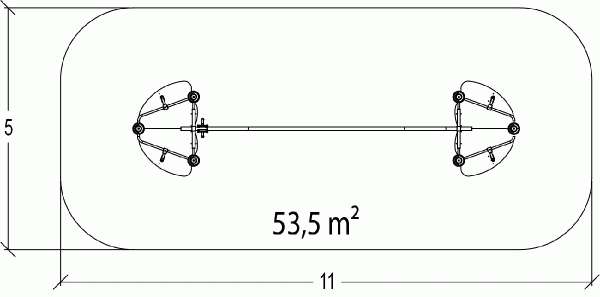

Surface:	53.50 m2
Total weight:	278.03 kg
Weight of the heaviest element:	39.66 kg

Environmental Indicators

Repairability

9.06 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

The one-piece rail is made of stainless steel, Ø 76.1mm, 3.6mm thick. The trolley is made of stainless steel ensuring its durability.

The handle is made of of stainless steel.

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more
