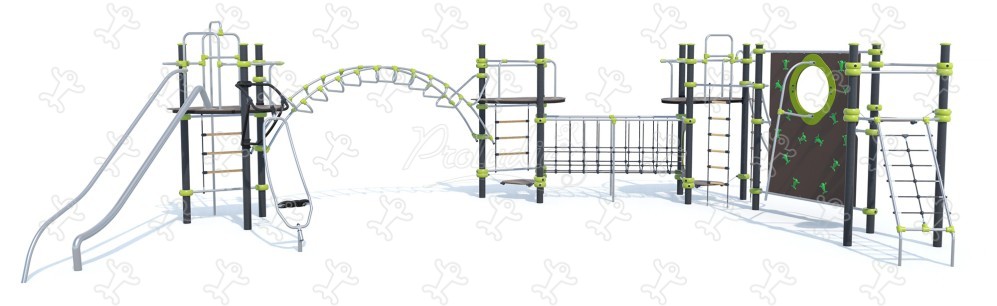

Ixo - J2568-M

We have created the reference J2568-M in our "Ixo" range. This play equipment is accessible from 8 years. It can accommodate up to 42 users.

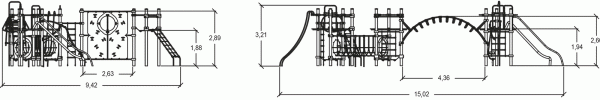

The size of the module is: 13.00 m length, 9.80 m width, 3.40 m. high. The free fall height (FFH) is 2.90 m.

27 play functions

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Sliding x4

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x4

By playing together, children learn how to interact with other personalities and behaviors.

Hanging x1

This fun activity allows you to explore a new way of playing, of managing space and the void below.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Balancing x5

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Rotating x1

Turning allows the child to experience thrills, to experience speed and to feel the exhilaration of their head and body turning uncontrollably.

Climbing x5

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x3

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Resting x2

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Specifications

Age range:	8+
Number of users:	42 users
FFH :	2.90 m
Size:	13.00 x 9.80 x 3.40 m

Equipment installation

Number of installers:	2
Installation time:	52:30:00
Concrete volume:	1.10 m3

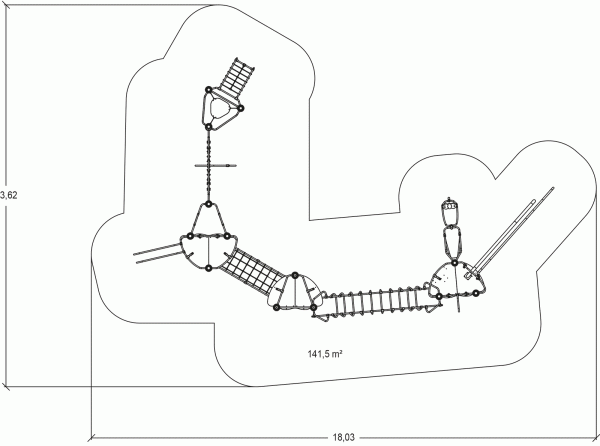

Surface:	141.50 m2
Total weight:	953.54 kg
Weight of the heaviest element:	65.00 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

Injection moulded polyamide fixings connect the posts with the platforms and the various play feautures.

The tubes are made of stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by lacquered galvanised steel supports,... located on the underside of the platforms. Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The ladder rungs are made of acacia wood which is naturally rot-resistant and smooth to the touch. They are mounted on a 16mm diameter polyester cable.

The seat is made of shock absorbing moulded honeycomb rubber.

The climbing wall is made from a 12.5mm thick textured and non-slip compact material (HPL).

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
