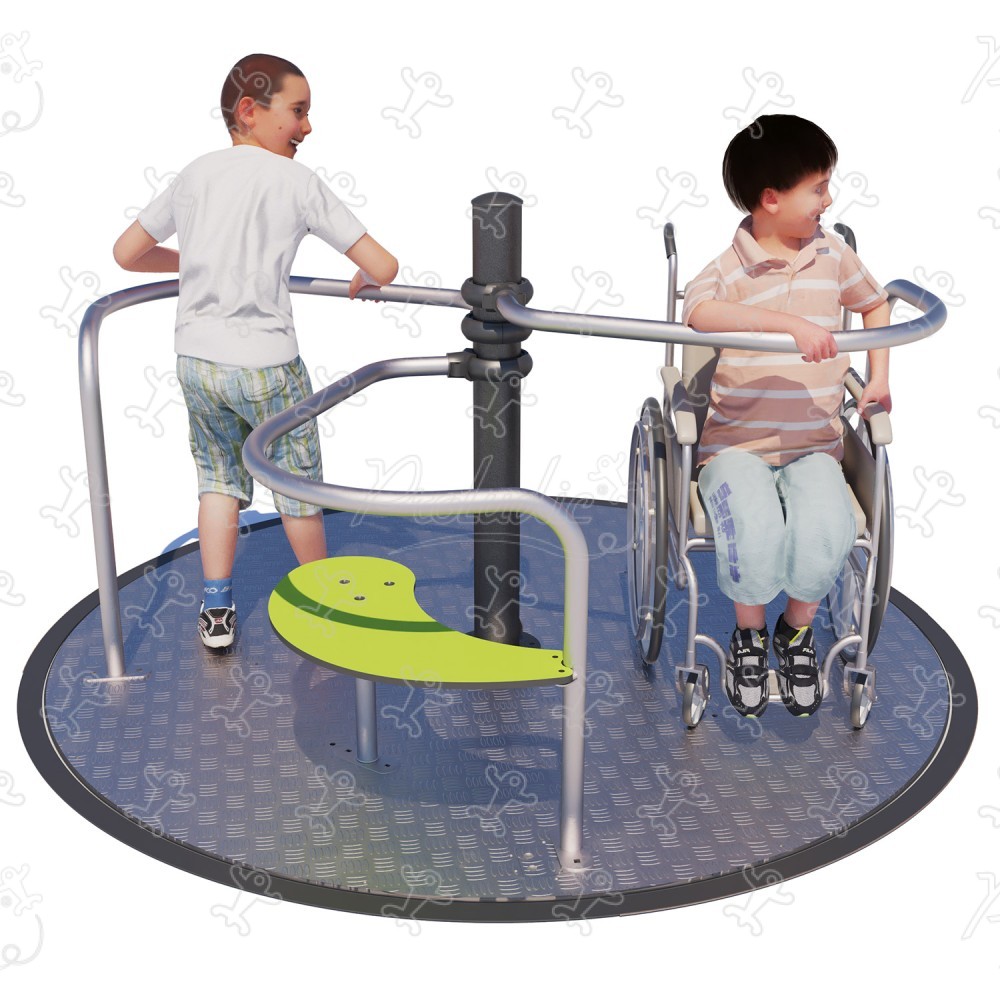

Rotating equipment - Inclusive Roundabout - J2409

This inclusive roundabout offers easy access to wheelchair users and can hold up to 6 users at any one time. We have created the reference J2409 in our Rotating equipment range. This inclusive roundabout play equipment is accessible for 2 years and upwards. It can accommodate up to 6 users including 2 wheelchair users.

The size of the module is: 2.10 m wide, 2.10 m. deep, 1.00 m. high. The free fall height (FFH) is 1.00 m.

3 play functions

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Rotating x1

Turning allows the child to experience thrills, to experience speed and to feel the exhilaration of their head and body turning uncontrollably.

Specifications

Age range:	2+
Number of users:	6 users
FFH :	1.00 m
Size:	2.10 x 2.10 x 1.00 m

Equipment installation

Number of installers:	2
Installation time:	03:00:00
Concrete volume:	0.40 m3

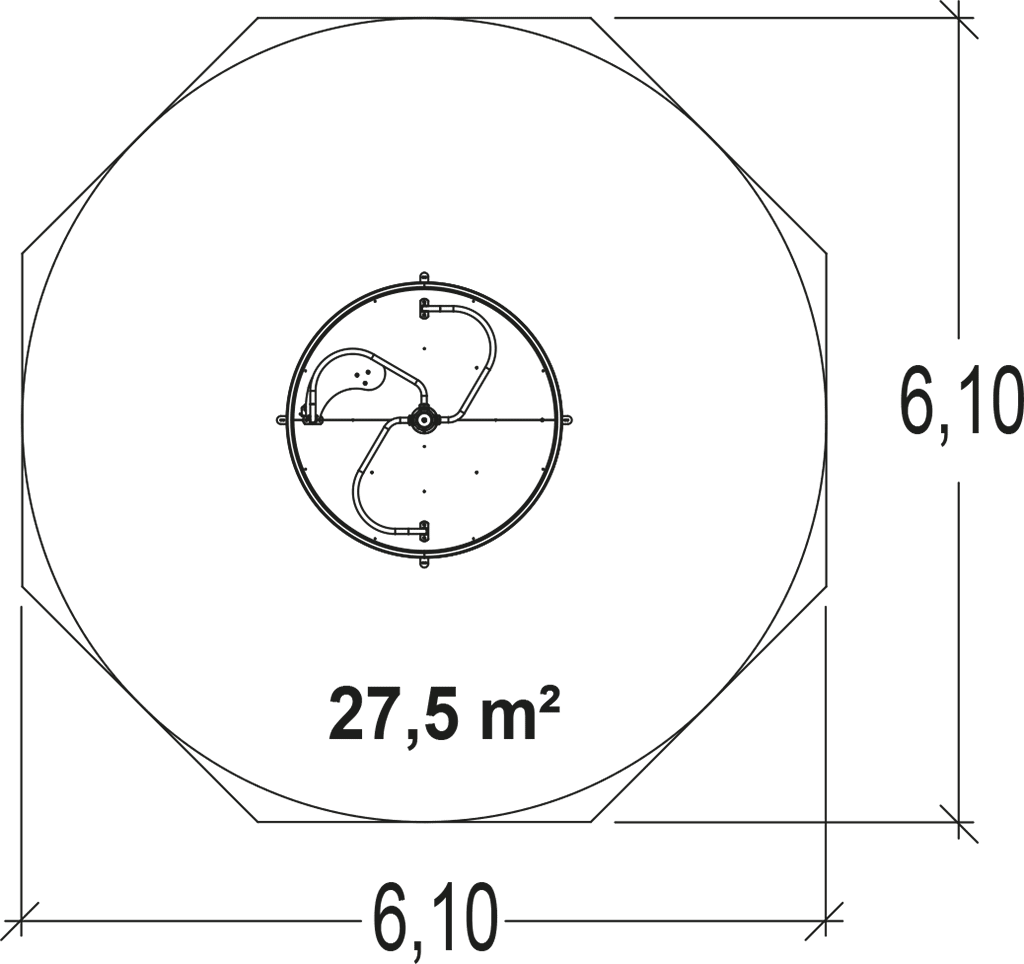

Surface:	27.50 m2
Total weight:	303.98 kg
Weight of the heaviest element:	270.00 kg

Environmental Indicators

Repairability

9.06 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Video - Rotating equipment - Inclusive Roundabout - J2409

Materials

The 102mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
