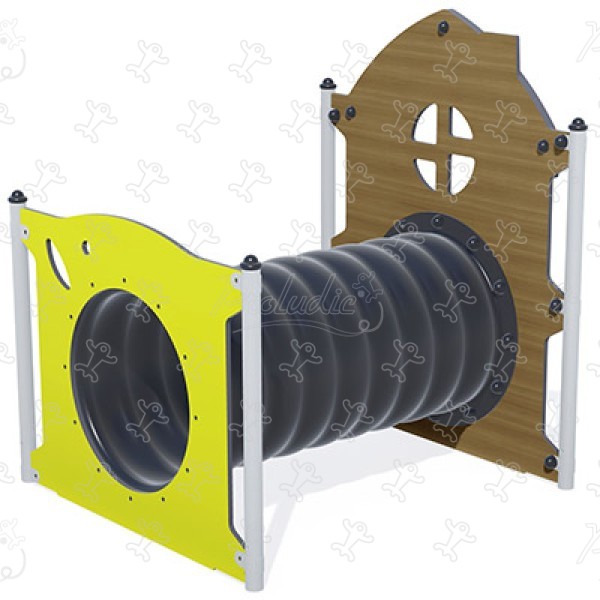

Diabolo Baby - Baby Tunnel - J240®

We have created the reference J240® in our "Diabolo Baby" range. This play equipment is accessible from 0,5 years. It can accommodate up to 4 users.

The size of the module is: 1.04 m length, 0.96 m width, 1.15 m. high. The free fall height (FFH) is 0.60 m.

3 play functions

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	0,5+
Number of users:	4 users
FFH :	0.60 m
Size:	1.04 x 0.96 x 1.15 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00
Concrete volume:	0.11 m3
Surface:	14.50 m2
Total weight:	44.90 kg
Weight of the heaviest element:	10.77 kg

Environmental Indicators

Repairability

9.49 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The tunnel is made of 100% recycled rotomolded polyethylene, 45cm in diameter (RAL 9005).

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
