Playhouses - Elf Playhouse - J231

We have created the reference J231 in our "Playhouses" range. This play equipment is accessible from 1 year. It can accommodate up to 8 users.

The size of the module is: 1.29 m length, 1.17 m width, 1.60 m. high. The free fall height (FFH) is 0.60 m.

11 play functions

Role play x1

Role plays promote the child's intellectual and social skills.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Resting x1

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x2

A great exercise for developing motor skills and abilities in young children while having fun.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Visual stimulation x1

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Tactile stimulation x2

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Specifications

Age range:	1+
Number of users:	8 users
FFH :	0.60 m

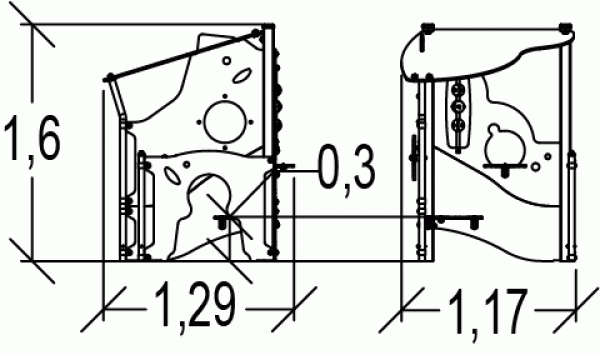

Size:	1.29 x 1.17 x 1.60 m

Equipment installation

Number of installers:	2
Installation time:	02:50:00
Concrete volume:	0.10 m3

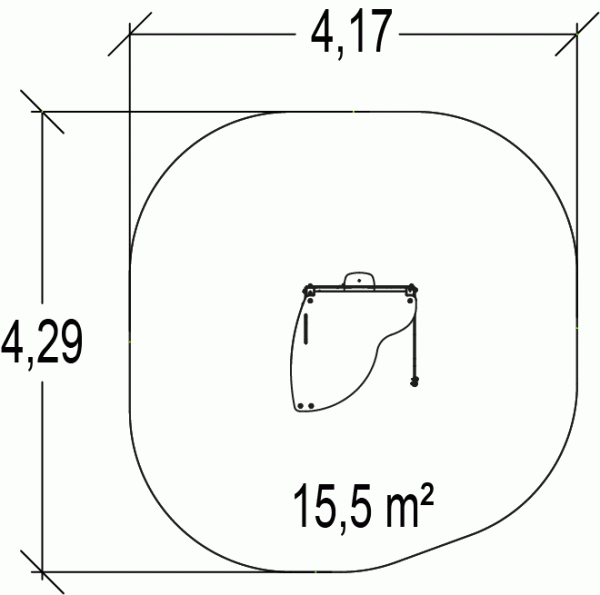

Surface:	15.50 m2
Total weight:	98.73 kg
Weight of the heaviest element:	16.07 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 70 x 70mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
