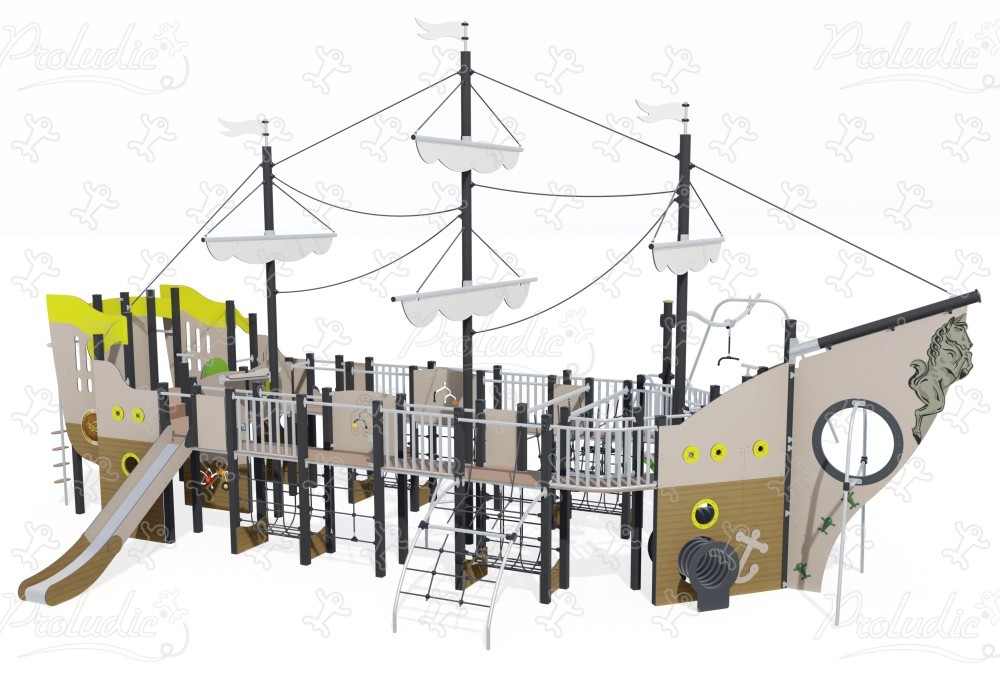

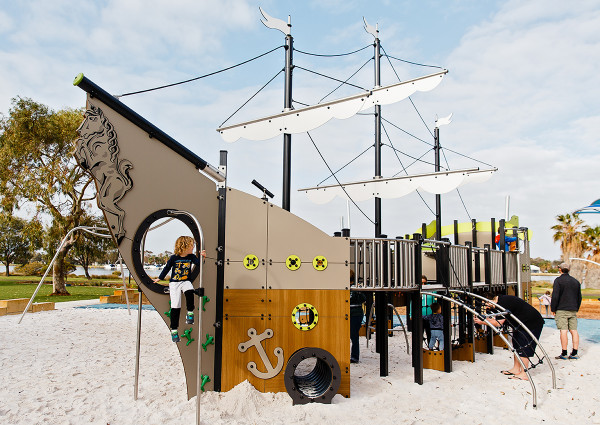

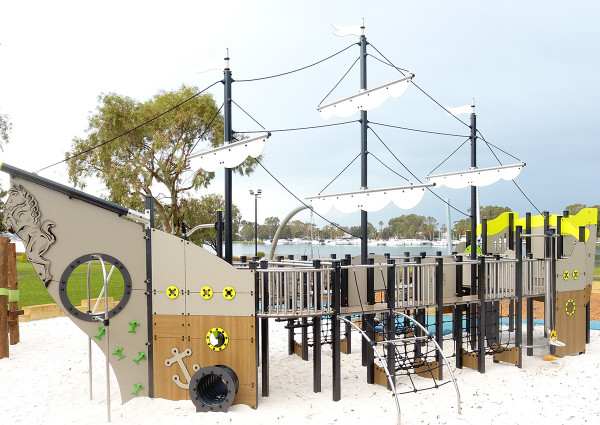

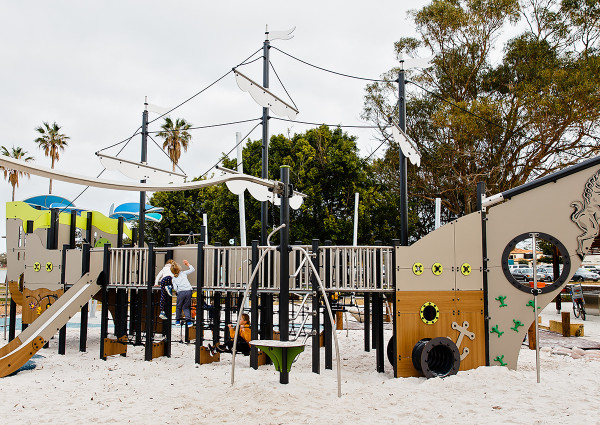

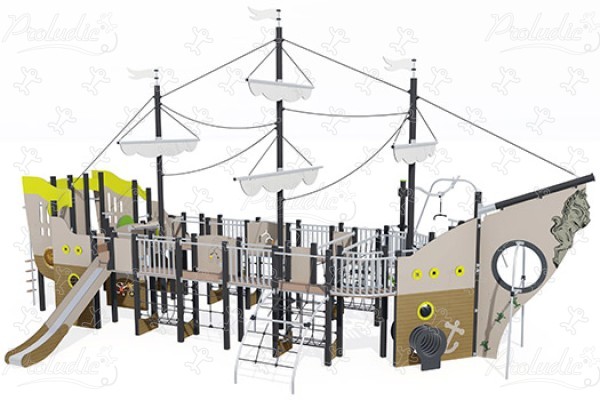

Aquatica - Unicorn - J1961

We have created the reference J1961 in our "Aquatica" range. This play equipment is accessible from 3 years. It can accommodate up to 75 users.

The size of the module is: 13.09 m length, 12.69 m width, 6.90 m. high. The free fall height (FFH) is 1.70 m.

41 play functions

Role play x1

Role plays promote the child's intellectual and social skills.

Sliding x4

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Handling x6

A great exercise for developing motor skills and abilities in young children while having fun.

Visual stimulation x4

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Tactile stimulation x6

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Hanging x1

This fun activity allows you to explore a new way of playing, of managing space and the void below.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Getting across x6

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Crawling x4

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Sound stimulation x1

Popular and often shared by numerous children, fun sound activities bring even more life to play areas!

Specifications

Age range:	3+
Number of users:	75 users
FFH :	1.70 m
Size:	13.09 x 12.69 x 6.90 m

Equipment installation

Number of installers:	4
Installation time:	70:00:00
Concrete volume:	2.30 m3

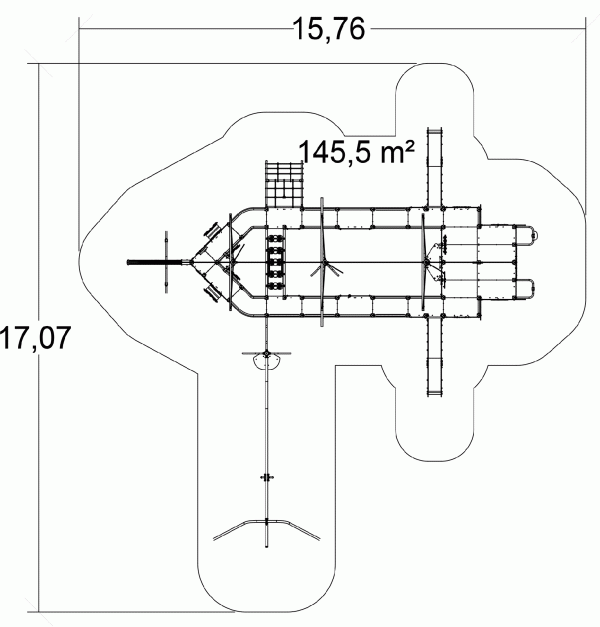

Surface:	145.50 m2
Total weight:	2878.33 kg
Weight of the heaviest element:	42.77 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

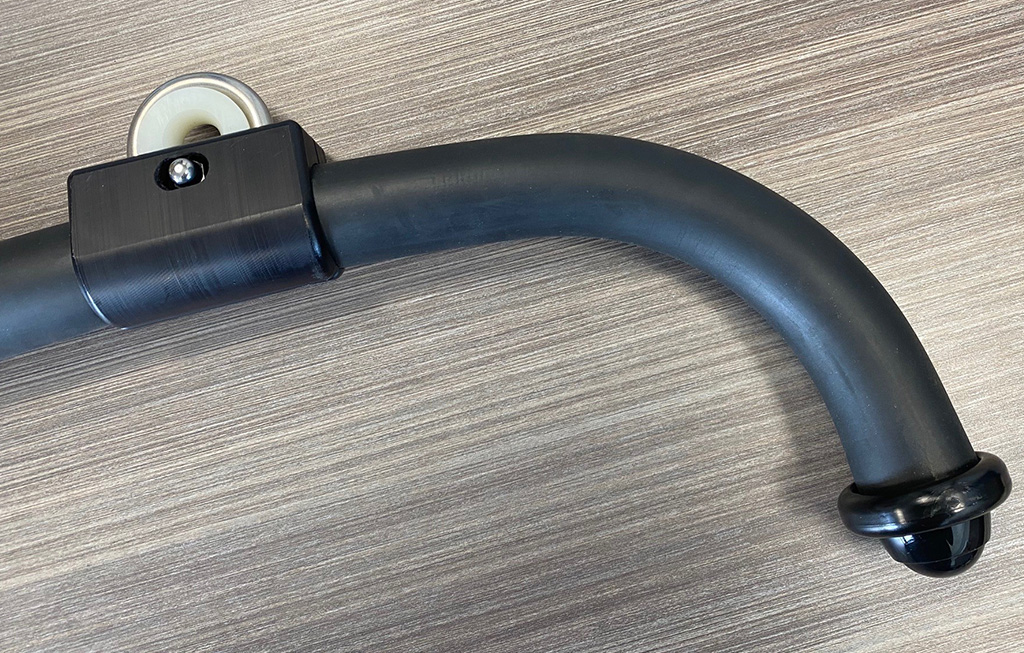

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
