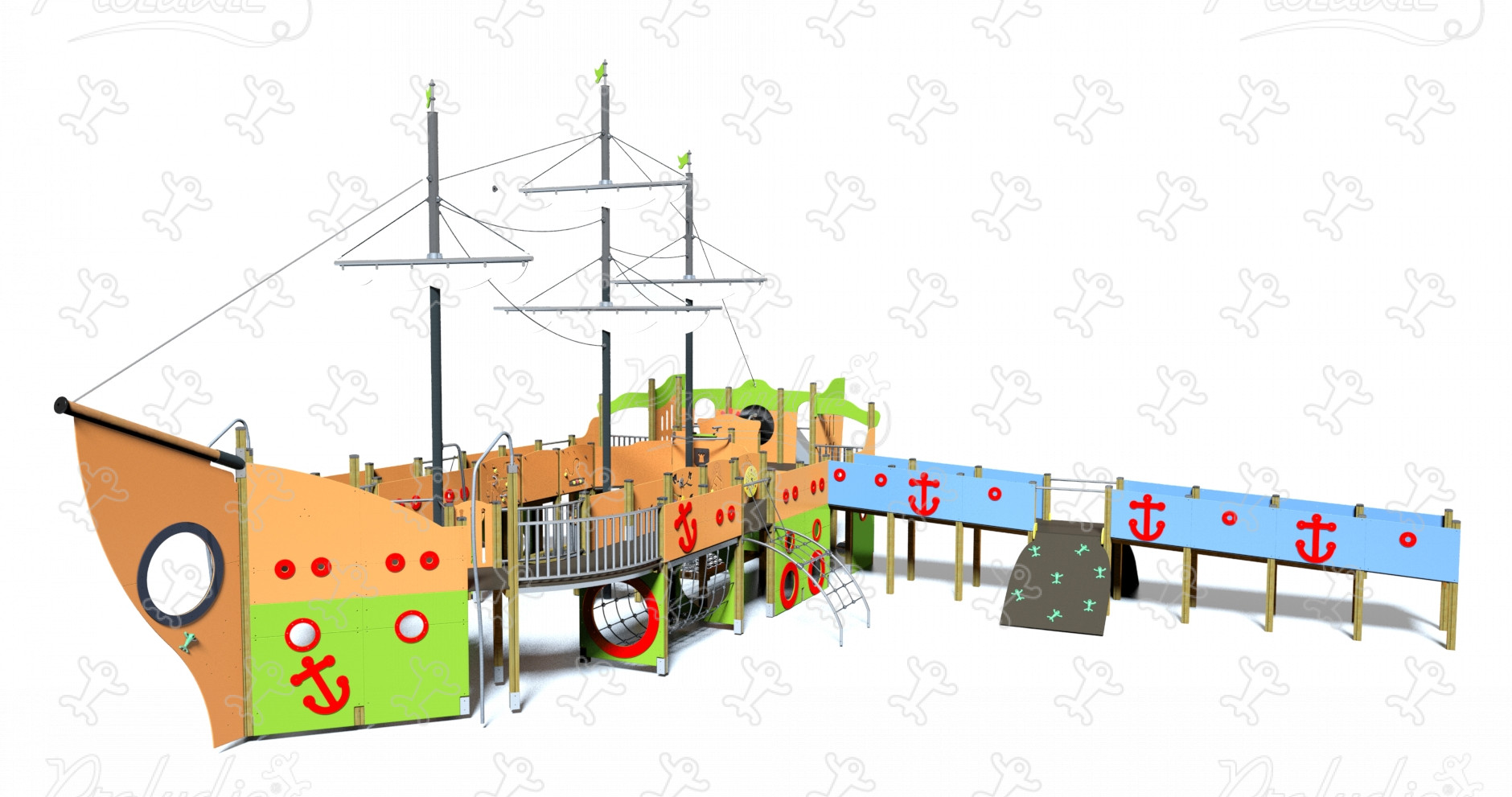

Aquatica - Derby Galleon - J1960

We have created the reference J1960 in our "Aquatica" range. This play equipment is accessible from 3 years. It can accommodate up to 85 users.

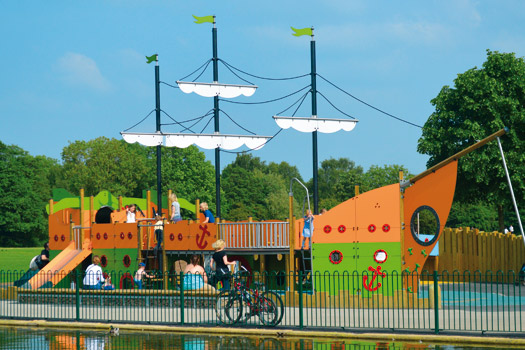

At 22m from end to end, and 8m high at its highest point, the J1960 Galleon represents an ideal playground focal point. Top deck is wheelchair accessible.

60 play functions

Role play x1

Role plays promote the child's intellectual and social skills.

Sliding x3

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Resting x5

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x12

A great exercise for developing motor skills and abilities in young children while having fun.

Thinking x10

Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.

Tactile stimulation x10

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Climbing x4

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Hiding x2

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Climbing x5

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Crawling x2

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Sound stimulation x1

Popular and often shared by numerous children, fun sound activities bring even more life to play areas!

Visual stimulation x3

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Specifications

Age range:	3+
Number of users:	85 users
FFH :	2.00 m

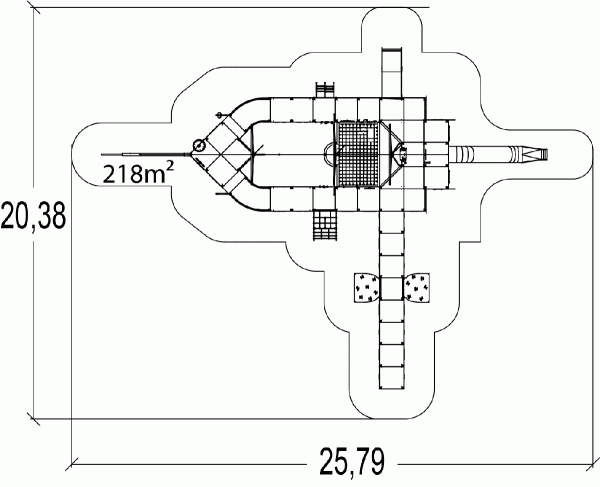

Size:	20.50 x 16.80 x 8.20 m

Equipment installation

Number of installers:	3
Concrete volume:	2.40 m3
Surface:	213.00 m2
Total weight:	4813.41 kg
Weight of the heaviest element:	52.94 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The vertical 68mm square post are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The posts are protected by injected polyamide caps. Read more

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The platforms are 21mm plywood panels made up of layers of birch. The surface is coated with a film of non-slip phenolic resin.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The tubular slide is made of stainless steel.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
