Climbing equipment - J1663

We have created the reference J1663 in our "Climbing equipment" range. This play equipment is accessible from 2 years. It can accommodate up to 13 users.

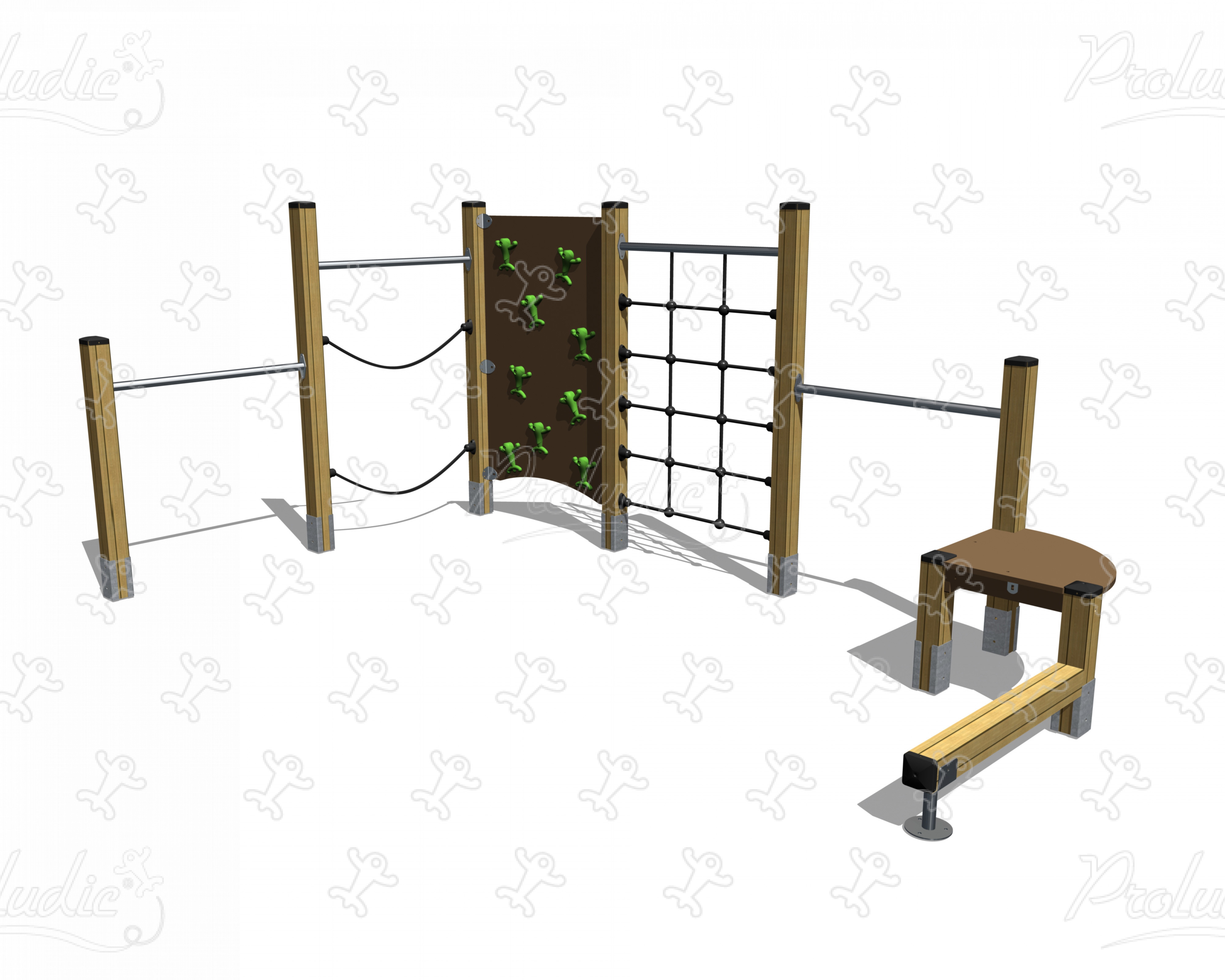

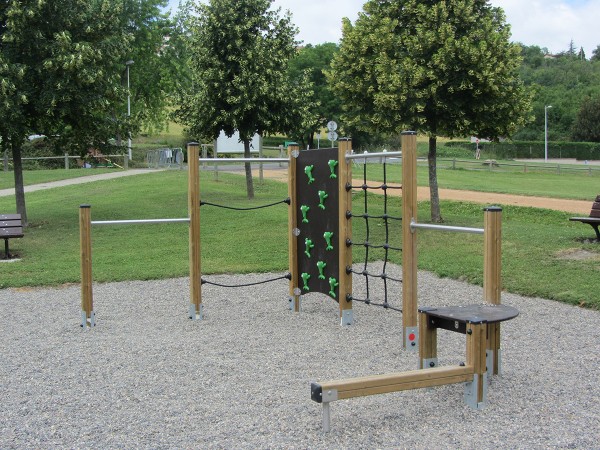

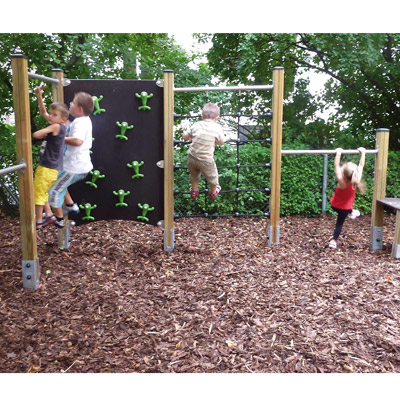

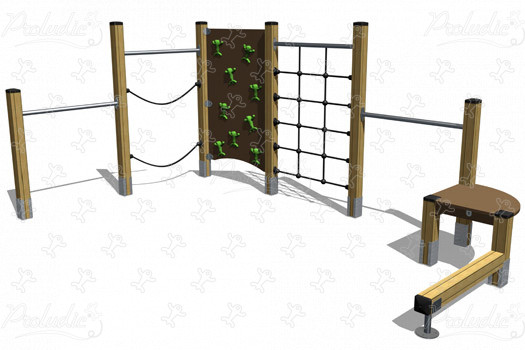

The J1663 is a basic junior single trail unit that provides opportunities for climbing, balancing, turning and rocking.

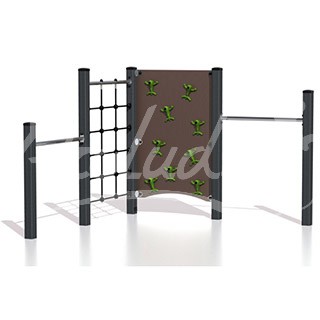

Other finishes available

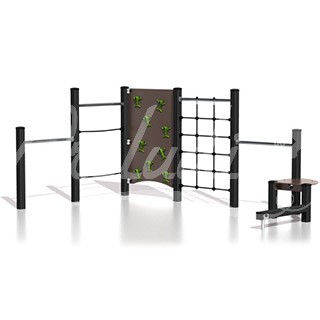

J1663-M

8 play functions

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Hanging x1

This fun activity allows you to explore a new way of playing, of managing space and the void below.

Balancing x2

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x3

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	2+
Number of users:	13 users
FFH :	1.70 m

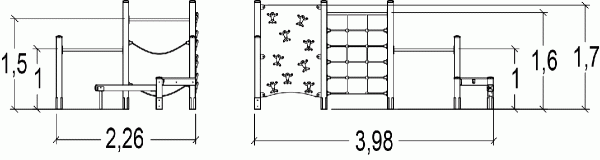

Size:	3.96 x 2.35 x 1.80 m

Equipment installation

Number of installers:	2
Installation time:	05:00:00
Concrete volume:	0.30 m3

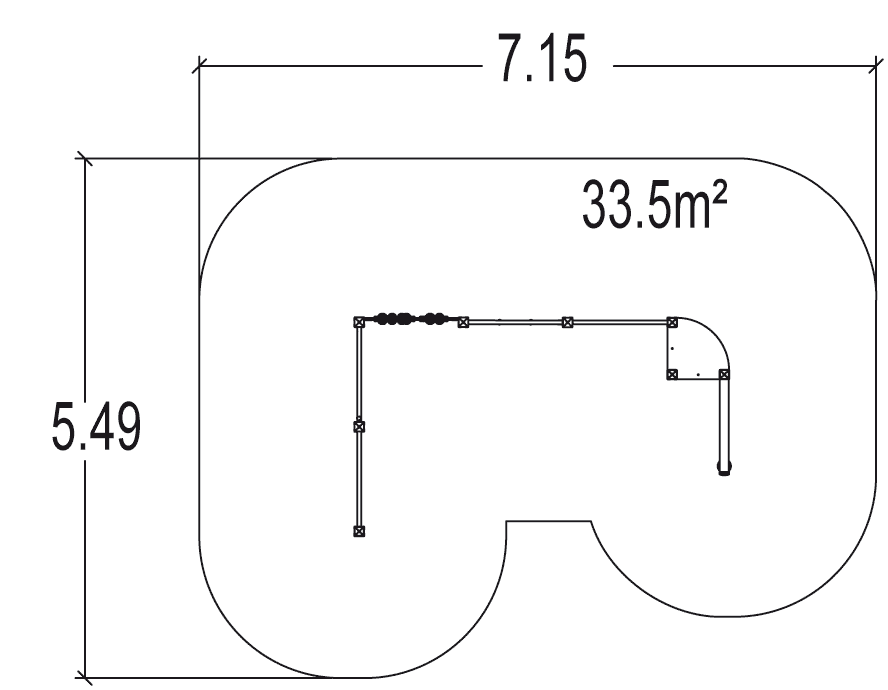

Surface:	33.50 m2
Total weight:	175.71 kg
Weight of the heaviest element:	28.74 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The vertical 95mm square post are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The posts are protected by injected polyamide caps. Read more

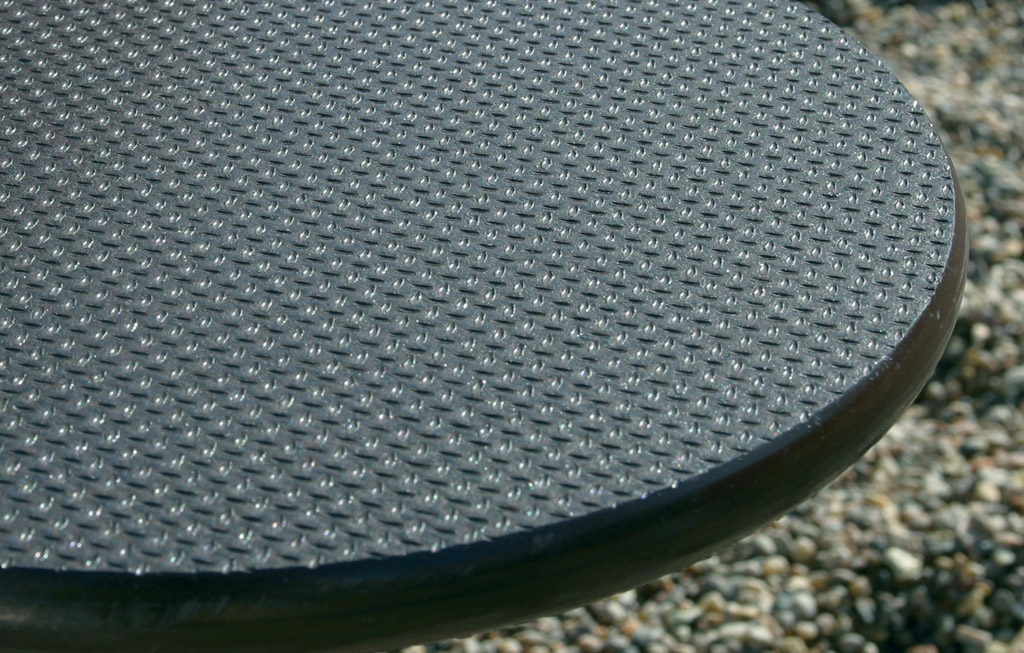

The platforms and the climbing wall are 21mm plywood panels made up of layers of birch. The surface is coated with a film of non-slip phenolic resin.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
