Climbing equipment - J1610

We have created the reference J1610 in our "Climbing equipment" range. This play equipment is accessible from 5 years. It can accommodate up to 9 users.

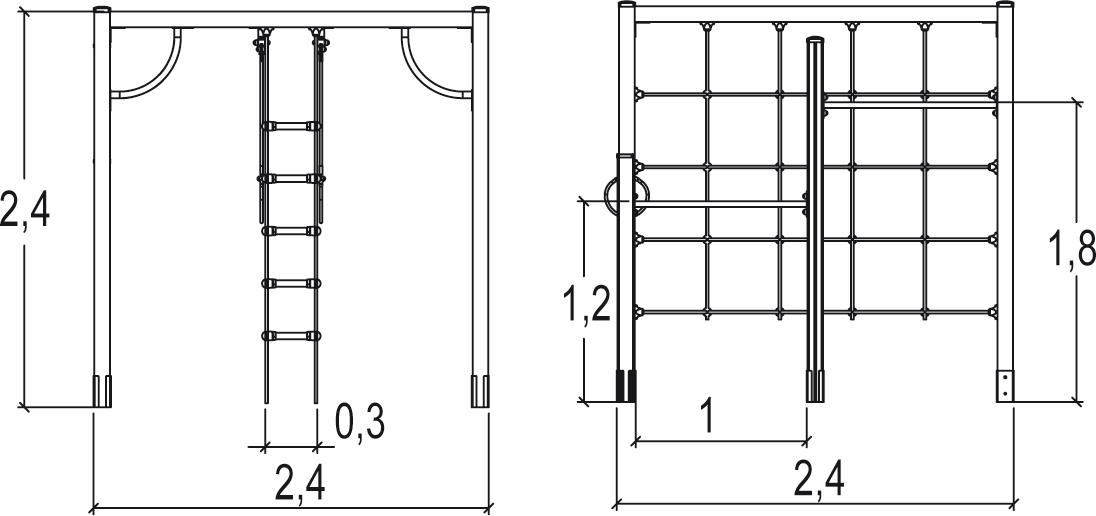

The size of the module is: 2.40 m length, 2.40 m width, 2.40 m. high. The free fall height (FFH) is 2.40 m.

Other finishes available

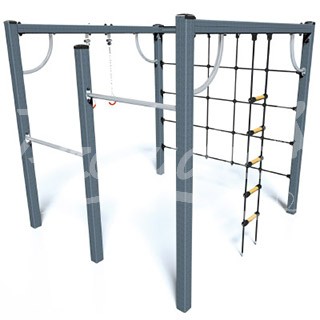

J1610-M

5 play functions

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Hanging x1

This fun activity allows you to explore a new way of playing, of managing space and the void below.

Specifications

Age range:	5+
Number of users:	9 users
FFH :	2.40 m
Size:	2.40 x 2.40 x 2.40 m

Equipment installation

Number of installers:	2
Installation time:	05:00:00
Concrete volume:	0.20 m3

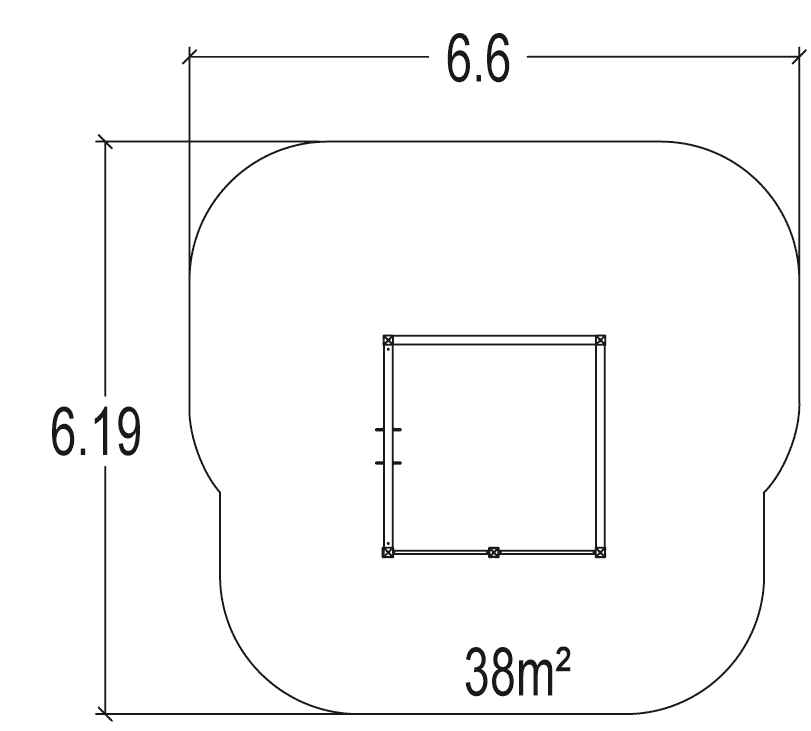

Surface:	38.00 m2
Total weight:	166.03 kg
Weight of the heaviest element:	12.42 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The vertical 95mm square post are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The posts are protected by injected polyamide caps. Read more
