Balancing trails - Tightrope Circuit - J16

We have created the reference J16 in our "Balancing trails" range. This play equipment is accessible from 2 years. It can accommodate up to 12 users.

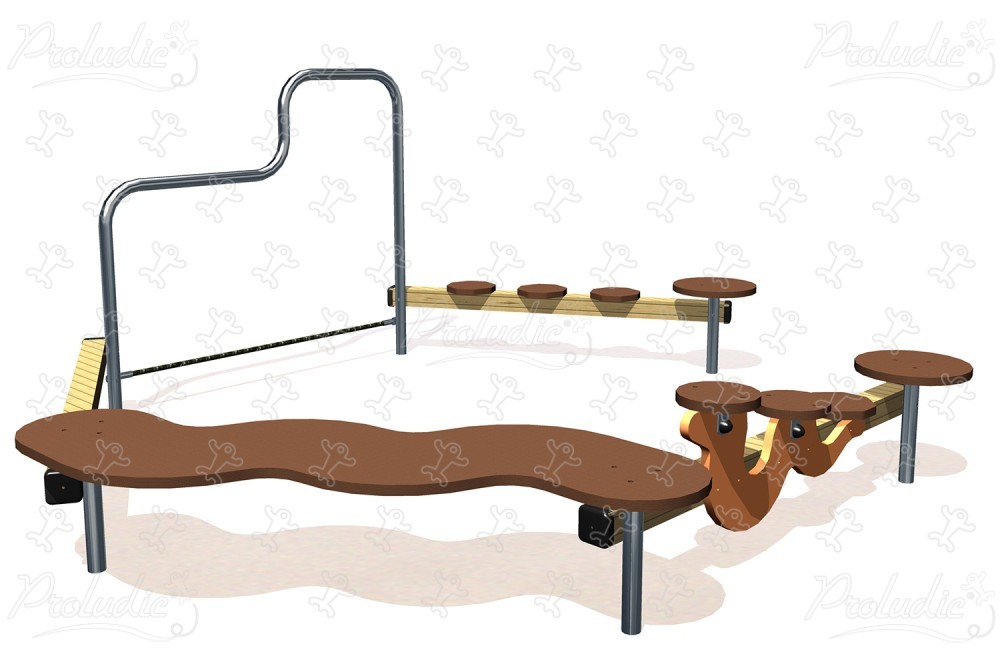

The J16 Tightrope circuit is a laminated wood and stainless steel blancing trail which includes 5 different elements to it.

2 play functions

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Specifications

Age range:	2+
Number of users:	12 users
FFH :	0.45 m

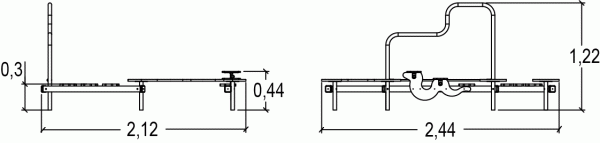

Size:	2.44 x 2.12 x 1.22 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00
Concrete volume:	0.20 m3

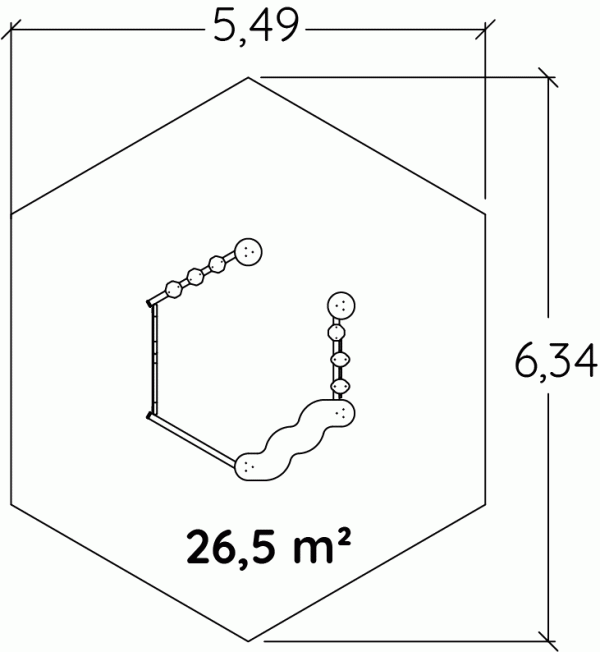

Surface:	26.50 m2
Total weight:	35.51 kg
Weight of the heaviest element:	9.84 kg

Environmental Indicators

Repairability

9.44 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The 68mm square beams are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. Read more
