Proludic UK
Slidy
J1069®
J1069

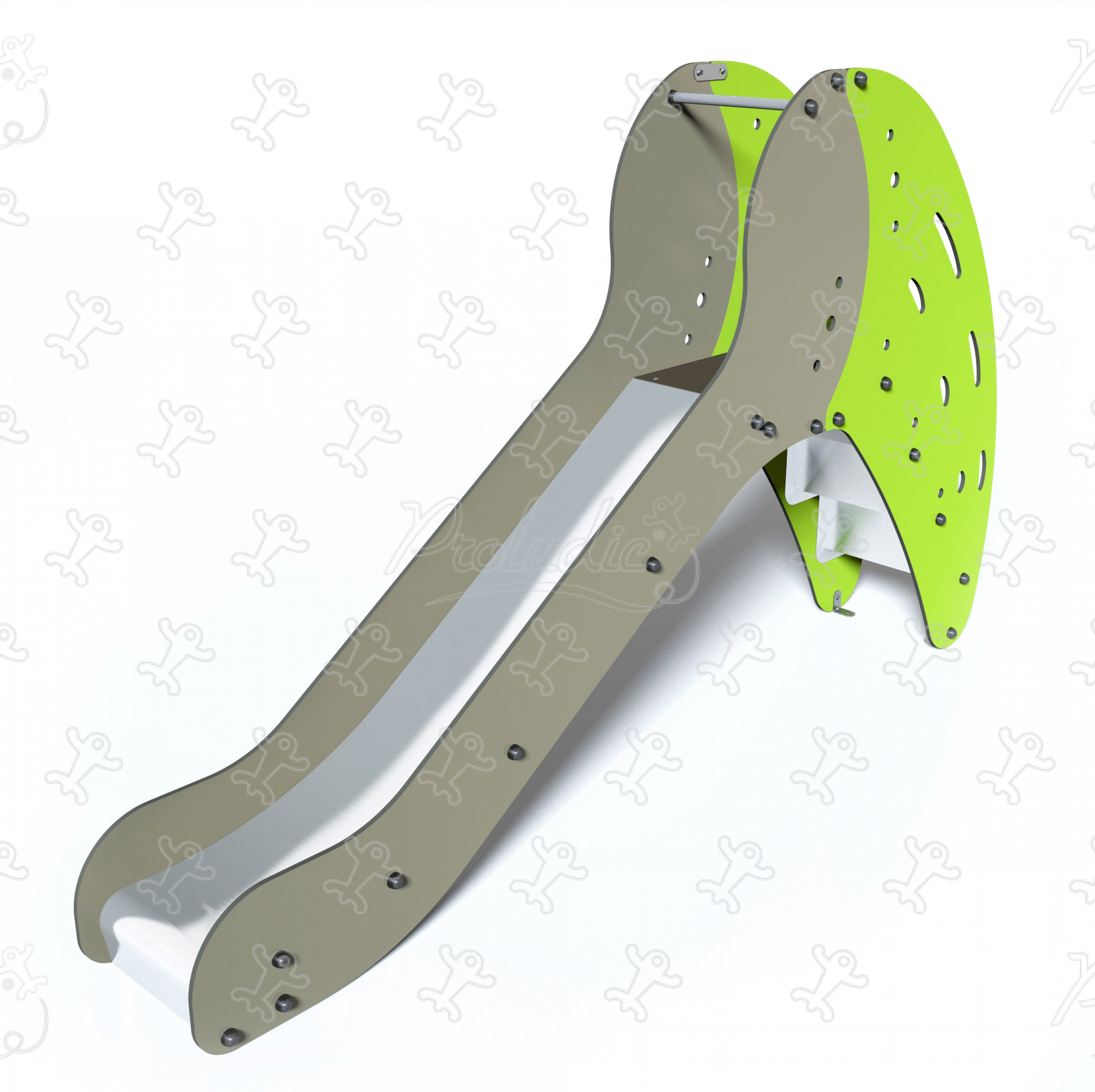

We have created the reference J1069® in our "Slides" range. This play equipment is accessible from 2 years. It can accommodate up to 5 users.
The size of the module is: 2.90 m length, 0.47 m width, 1.75 m. high. The free fall height (FFH) is 1.00 m.
| Age range: | 2 - 6 |
| Number of users: | 5 users |
| FFH : | 1.00 m |
| Size: | 2.90 x 0.47 x 1.75 m |
| Number of installers: | 2 |
| Installation time: | 03:00:00 |
| Concrete volume: | 0.10 m3 |
| Surface: | 18.50 m2 |
| Total weight: | 91.13 kg |
| Weight of the heaviest element: | 16.35 kg |
Repairability
9.29 /10
The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The platform is made from a 12.5mm thick textured and non-slip compact material (HPL).

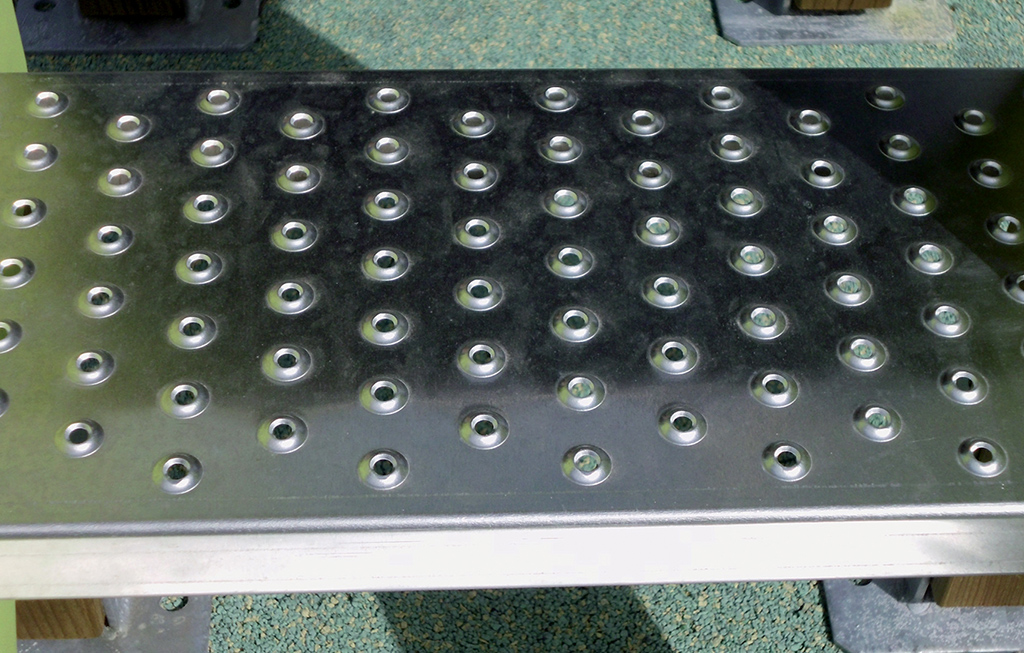

The monobloc steps are made of folded aluminum sheets with trade-plate surface finish, ensuring the equipment’s structural strength and durability.
The protective bar is made of PVC.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
