Slides - Mini Slide - stainless steel - J1012®

We have created the reference J1012® in our "Slides" range. This play equipment is accessible from 1 year. It can accommodate up to 5 users.

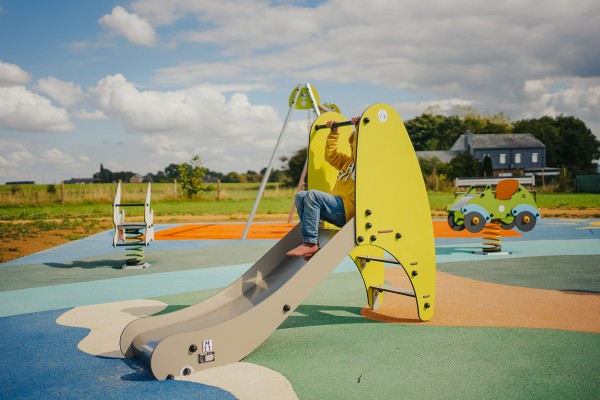

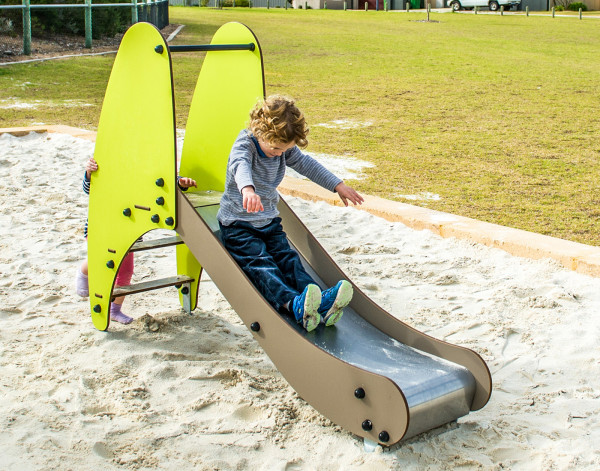

The mini green slide is compact and with a stainless steel sliding surface. Suitable for children aged between 1 and 5 years, it will make a great addition to any toddler play area.

Other finishes available

J1012-P®

J1012-GA®

3 play functions

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Specifications

Age range:	1 - 5
Number of users:	5 users
FFH :	1.00 m

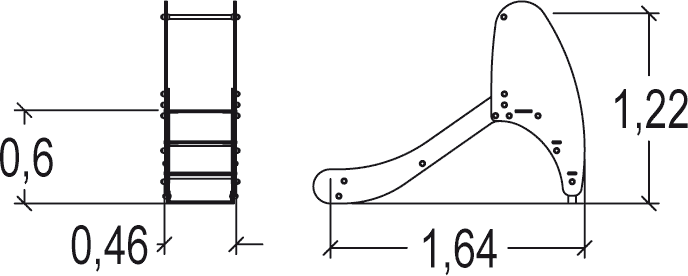

Size:	1.75 x 0.46 x 1.30 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00
Concrete volume:	0.10 m3

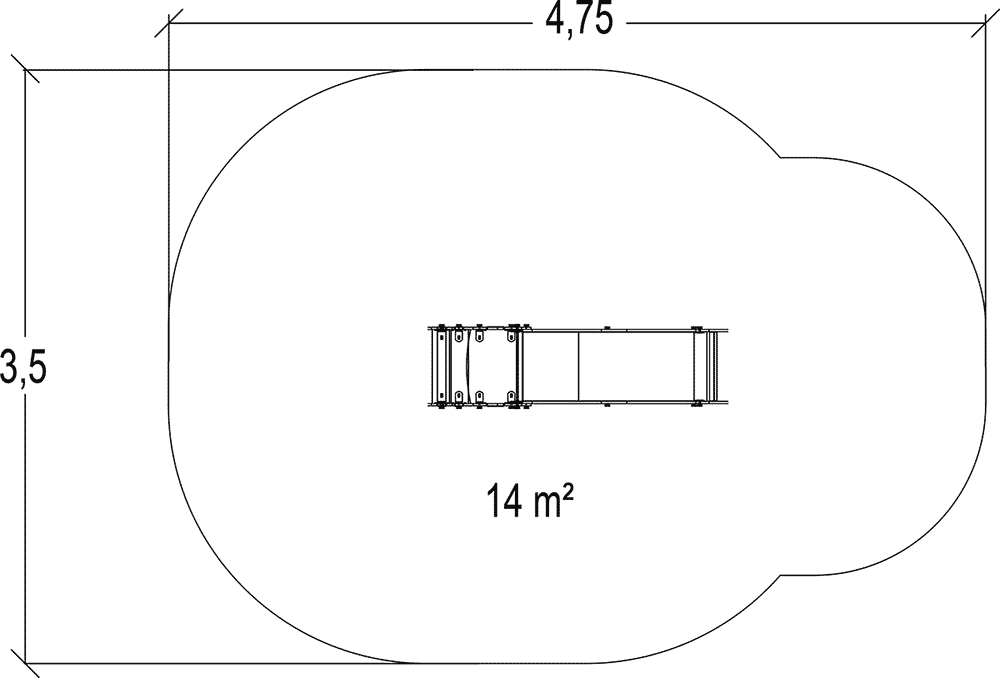

Surface:	14.00 m2
Total weight:	49.09 kg
Weight of the heaviest element:	10.17 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels and the steps are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece. The sides are made from a 13mm thick compact material... (HPL). Read more
