Slides - Green Slide - J1011

We have created the reference J1011 in our "Slides" range. This play equipment is accessible from 2 years. It can accommodate up to 5 users.

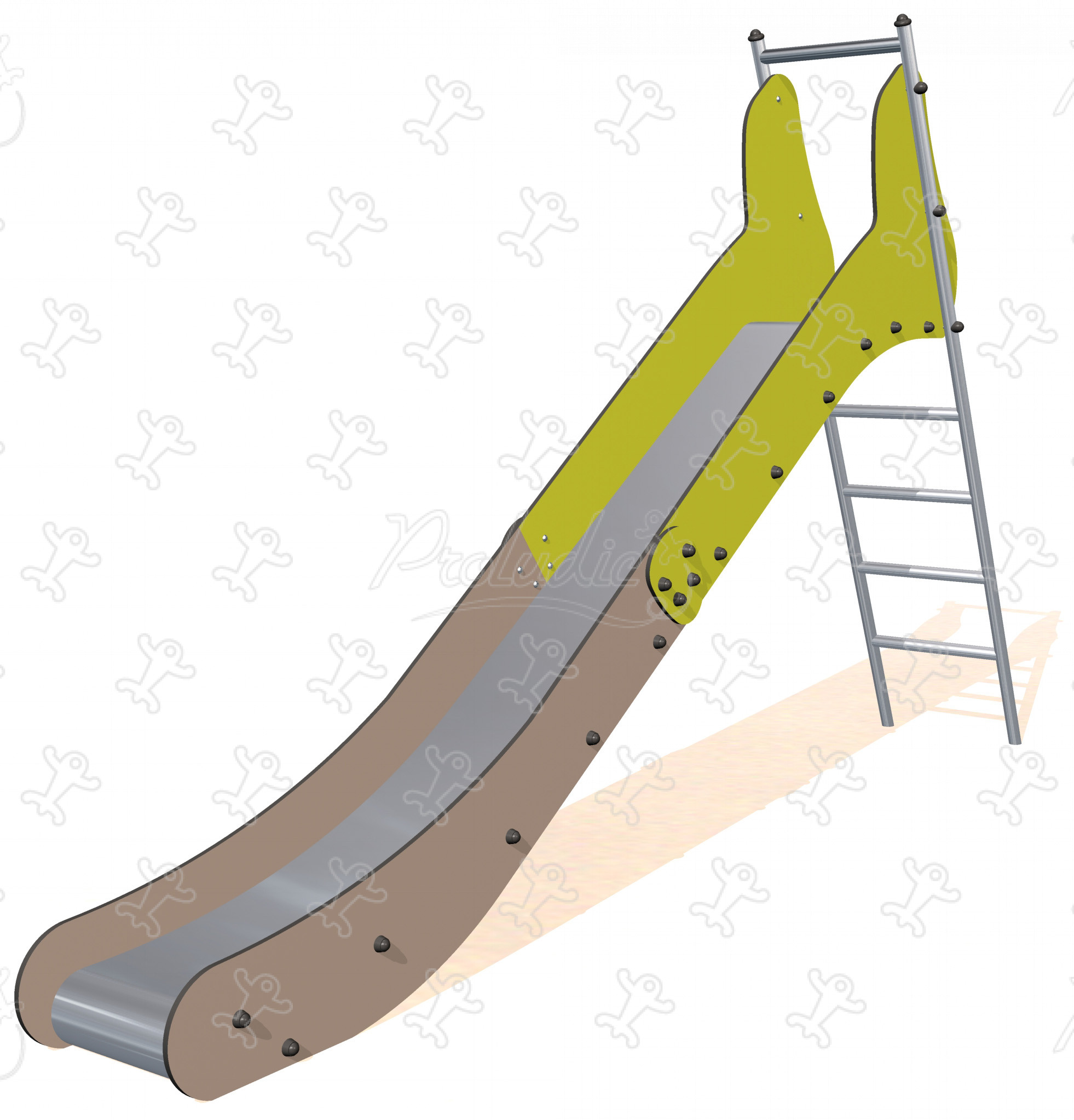

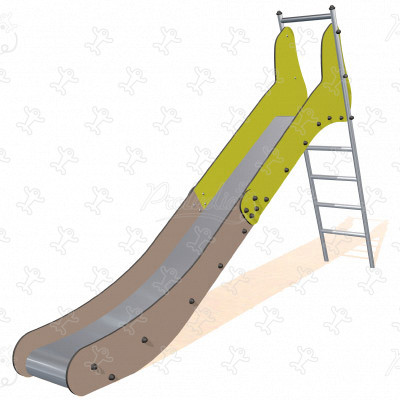

J1011 – The maxi green slide for children 2 years and above and for use for up to 8 children.

Other finishes available

J1011-GA

3 play functions

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Specifications

Age range:	2+
Number of users:	5 users
FFH :	1.37 m

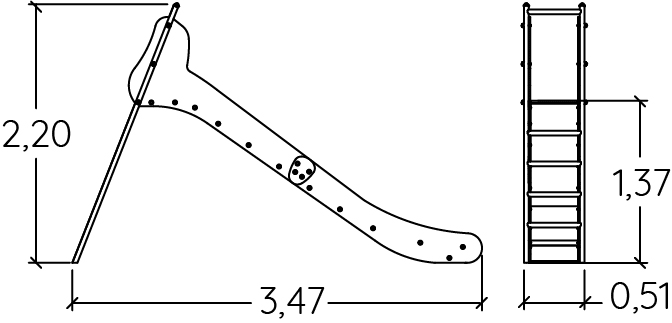

Size:	3.47 x 0.51 x 2.20 m

Equipment installation

Number of installers:	2
Installation time:	01:30:00
Concrete volume:	0.10 m3

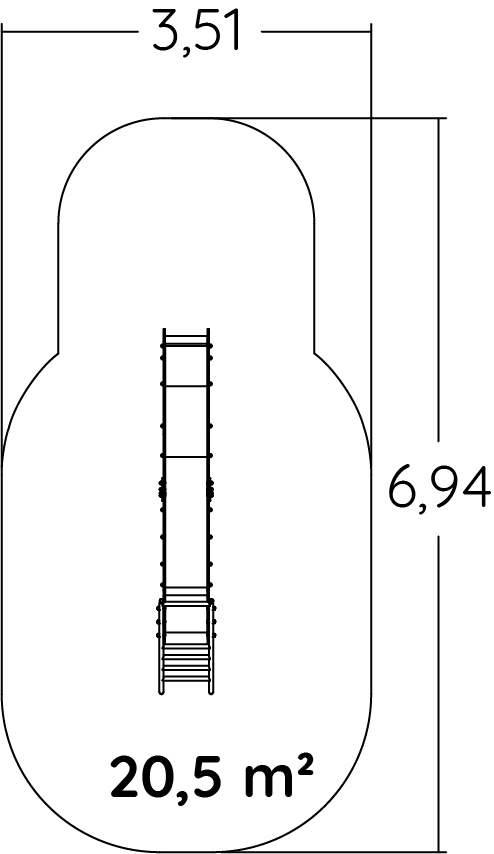

Surface:	20.50 m2
Total weight:	75.70 kg
Weight of the heaviest element:	17.75 kg

Environmental Indicators

Repairability

9.29 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All games and sports equipment in our standard offer are certified by an independent laboratory.

Materials

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece. The sides are made from a 13mm thick compact material... (HPL). Read more

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

Everything you need to know about the materials used by Proludic
